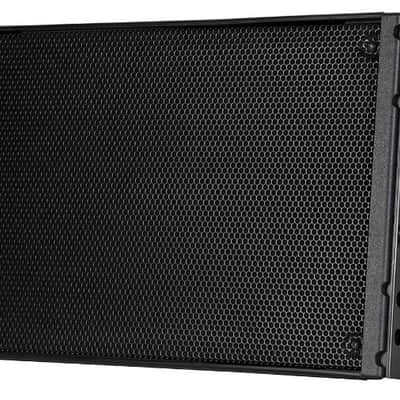

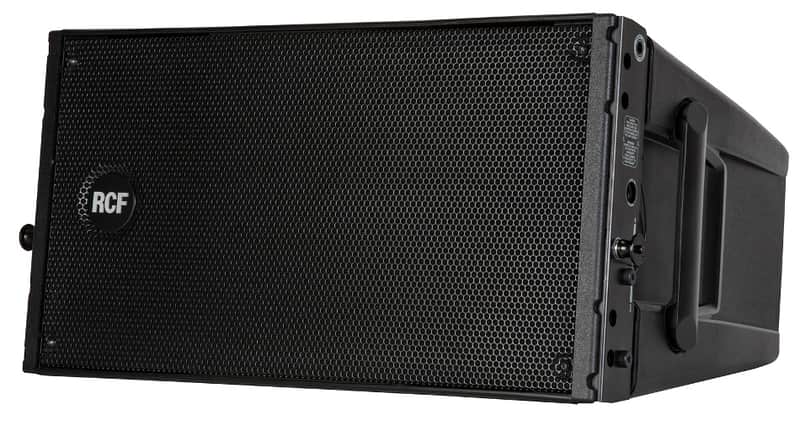

Its very compact format, no-compromise transducers, and a unique composite cabinet design make the RCF HDL 10-A the perfect tool in many situations, and is ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy setup is a must. The system is powered from a 1400W peak power 2-way digital amplifier, sound is processed from a powerful DSP engine.

Applications

• Live Sound
• Rentals
• Portable PA, clubs, ballrooms, live theatre
• House of worship
• Theme parks
• Music playback and sound reinforcement in small and mid-size venues
• Corporate A/V professionals and sound system hire companies

Features

• 1400W peak power, 700W RMS
• 2 x 8" woofers
• 133dB max SPL
• 65Hz - 20kHz frequency response
• 1 x 2" compression driver

Specifications

• Frequency Response (@-3dB): 65Hz - 20kHz
• Max SPL: 133dB
• Horizontal Coverage Angle: 100°
• Vertical Coverage Angle: 15°
• Compression Driver: 2", 2.5" v.c.
• Woofer: 2 x 8", 2.0" v.c.
• Input/Output Section:
  • Input Signal: Bal/unbal
  • Input Connectors: XLR
  • Output Connectors: XLR
  • Input Sensitivity: -2dBu / +4dBu
• Processor Section:
  • Crossover Frequencies: 800Hz
  • Protections: Thermal, RMS
  • Limiter: Soft limiter

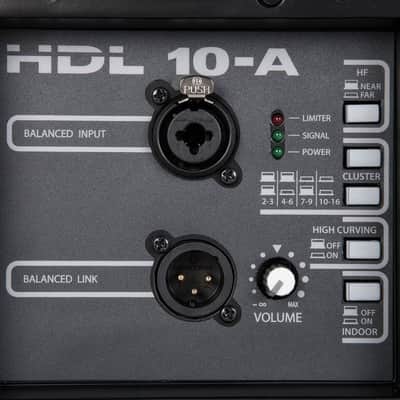

  • Controls: Cluster, HF, High curving, Indoor
• Amplifier Specifications:
  • Total Power: 1400W PEAK
    • High Frequencies: 400W PEAK
    • Low Frequencies: 1000W PEAK
  • Total Power: 700W RMS
    • High Frequencies: 200W RMS
    • Low Frequencies: 500W RMS
  • Cooling: Convection
  • Connections: PowerCON In/Out
• Cabinet:
  • Cabinet Material: Composite PP, wooden reinforced

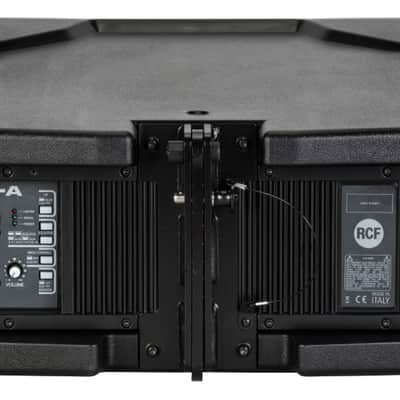

  • Hardware: Rigging flyware
  • Handles: 2 side
  • Color: Black
• Physical Specifications:
  • Height: 11.5" (294mm)
  • Width: 22.40" (569mm)
  • Depth: 17.09" (434mm)
  • Net Weight: 55.99lbs (25.4kg)
