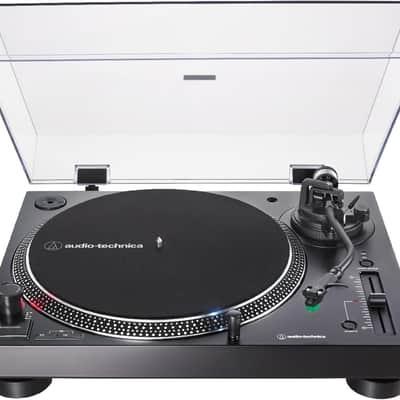

This update of the AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. But in addition to the USB output, the turntable also comes with a detachable dual RCA output cable and is equipped with a built-in selectable phono preamp so you can connect directly to your home stereo, whether it has a dedicated phono input or not.

Key Features

• Experience the high-fidelity audio of vinyl
• Direct-drive, DC servo motor
• Fully manual operation
• Adjustable dynamic anti-skate control
• Selectable 33/45/78 RPM speeds
• Professional-grade anti-resonance, die-cast aluminum platter with felt mat
• AT-HS6 universal ½"-mount headshell and AT-VM95E Dual Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
• AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Balanced S-shaped tonearm with hydraulically damped lift control and lockable rest
• Built-in switchable phono pre-amplifier for phono- or line-level output
• Stroboscopic platter with speed indicator
• Variable pitch control with quartz speed lock
• Removable plug-type target light for easier cueing in low light
• Damped base construction for reduced low-frequency feedback coloration
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
• Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software (or software of your choice)
• Includes: USB cable, detachable RCA output cable (dual RCA male to dual RCA male), AC adapter, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover

Technical Specifications

Type
3-speed, fully manual operation
Motor
DC servo motor
Drive Method
Direct drive
Speeds
33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter
Die-cast aluminum
Braking System
Electronic brake
Wow and Flutter
<0.2% (WTD) @ 3 kHz (JIS)
Signal-to-Noise Ratio
>50 dB
Output Level
Pre-amp “PHONOâ€: 4 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINEâ€: 240 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain
36 dB nominal, RIAA equalized
USB Function
A/D, D/A - 16-bit/44.1 kHz or 48 kHz USB selectable;
Computer interface
USB 1.1 Compliant Windows 7 or above, or MAC OS X or above
Power Supply Requirements
100 to 240 V, 50/60 Hz, 1.5A Max.
Dimensions
452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H
Weight
8 kg (17.6 lbs.), without dust cover
Accessories Included
AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2') USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
