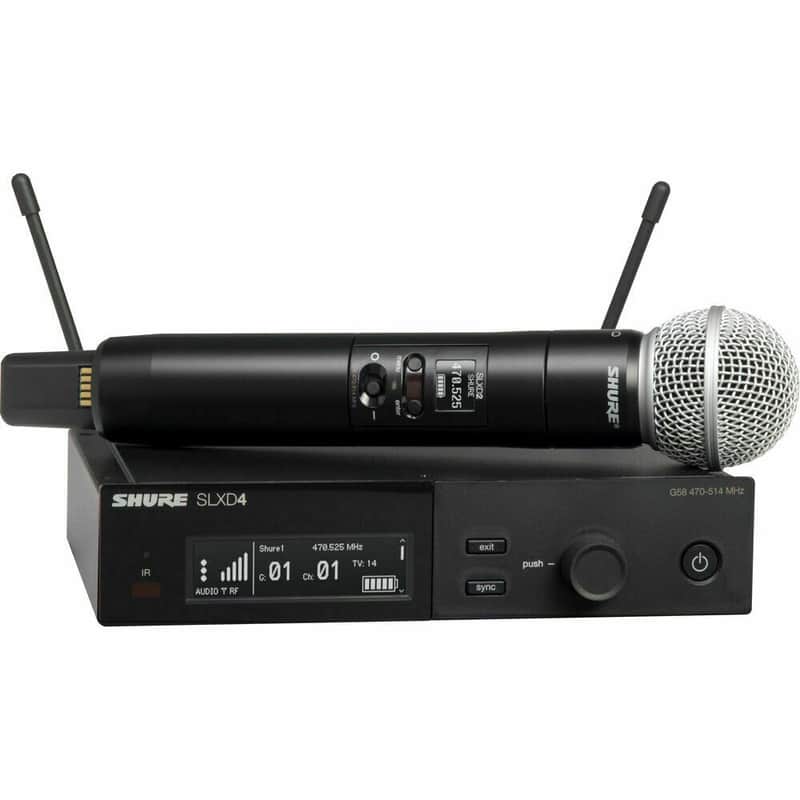

Shure SLXD24/SM58 G58 Wireless System w/ SM58 Handheld Microphone (G58: 470-514 MHz)

Shure SLXD24/SM58-G58 Wireless System with SM58 Handheld Transmitter

Featuring the legendary SM58® Cardioid Dynamic Microphone capsule on top of the SLXD2 handheld wireless transmitter, the SLXD24/58 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.

The SLXD24/SM58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver and SLXD2/SM58 handheld transmitters with antenna and rackmount accessories and 2 AA batteries.

Specifications

System

Wireless Transmission

• Digital UHF

Number of RF Channels

• 1760

Included Transmitters

• 1 x Handheld

Diversity

• True Digital Diversity

RF Frequency Band

• G58:
  470 to 514 MHz

RF Bandwidth

• 44 MHz

Frequency Step Size

• 25 kHz

RF Channel Scanning

• Auto-Scan

Max Operating Range

• 328' / 100 m

Max Systems per Setup

• 32

Sample Rate/Resolution

• 24-Bit

Latency

• 3.2 ms

Dynamic Range

• 120 dBA (Typical)

Encryption

• None

ReceiverForm Factor

• Tabletop / Rackmount

Mounting Options

• Rackmount (with Included Hardware)

Rackmount Size

• 1 RU (1/2 Rack)

Antenna

• 2 x 1/4 Wave External, BNC (Rear-Mount)

Number of Audio Channels

• 1

Audio I/O

• 1 x XLR 3-Pin Male Balanced Mic/Line Output
  1 x 1/4" TRS Female Balanced Output (Lockable)

Gain Range

• 0 to +21 dB (3 dB Steps)

Pad

• 30 dB

Audio Output Level

• -18 to +42 dB (Balanced, Unbalanced)

Phantom Power Protection

• On 1/4", XLR Outputs

Frequency Response

• 20 Hz to 20 kHz +1/-2 dB (Dependent on Mic)

Network I/O

• 1 x RJ45 (10/100 Mb/s)

Network Protocols

• DHCP, Manual IP

Impedance

• 1/4" Output:
  1.3 Kilohms (Balanced)
  670 Ohms (Unbalanced)
  XLR Output:
  400 Ohms (Balanced)
  150 Ohms (Balanced)

Adjacent Channel Isolation

• >70 dB

Spurious

• Rejection: >75 dB

Power Requirements

• AC/DC Power Adapter

AC/DC Power Adapter

• 15 VDC at 600 mA, Center-Positive (Included)

AC Input Power

• 100 to 240 VAC, 50 / 60 Hz

Display & Indicators

• LCD (AF Level, Channel, Frequency, Group, Power, RF Level, Sync, Transmitter Battery Status)

Housing

• Steel

Operating Temperature

• 0 to 122°F / -17 to 50°C

Storage Temperature

• -20 to 165°F / -28 to 73°C

Dimensions

• 7.8 x 1.7 x 6" / 197 x 42 x 152 mm

Weight

• 1.8 lb / 816 g (without Antenna)

TransmitterForm Factor

• Handheld

RF Output Power

• 1 / 10 mW

Audio I/O

• None

Pad

• None

Muting

• None

Audio Input Level

• 8.2 dBV

Auto-Level Control

• No

Gain Range

• 0 +21 dB

Signal Processing

• None

Frequency Response

• 20 Hz to 20 kHz (Dependent on Mic)

Sync Method

• IR

Antenna

• Internal Single-Band Helical

Power Requirements

• Battery

Battery Type

• 2 x AA (Included)
  1 x Shure SB 903 (Not Included)

Battery Charging Time

• 1.25 to 5.5 Hours

Approx. Battery Life

• 8 Hours (Lithium Shure SB903)
  8 Hours (Alkaline)

USB/Lightning Connectivity

• None

Display & Indicators

• LCD (Battery Status, Channel, Group, Power)

Housing

• Aluminum

Operating Temperature

• 0 to 122°F / -17 to 50°C

Storage Temperature

• -20 to 165°F / -28 to 73°C

Dimensions

• 1.5 x 6.9" / 37.1 x 176 mm

Weight

• 5.2 oz / 147 g

MicrophoneForm Factor

• Handheld Capsule

Color

• Black

Sound Field

• Mono

Capsule

• Dynamic

Polar Pattern

• Cardioid

Frequency Range

• 50 Hz to 15 kHz

Sensitivity

• -54.5 dBV/Pa

CMRR

• None

Diameter

• 1.97" / 50 mm

Packaging InfoPackage Weight

• 7.54 lb

Box Dimensions (LxWxH)

• 17.7 x 14 x 4.4"
