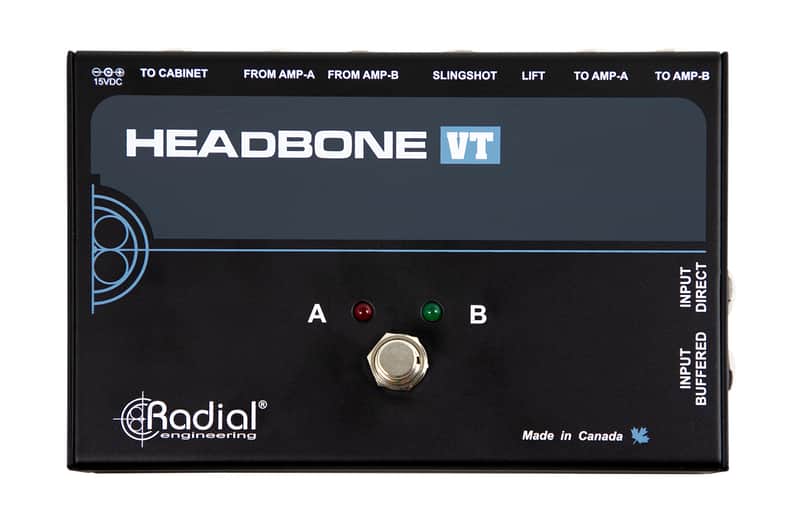

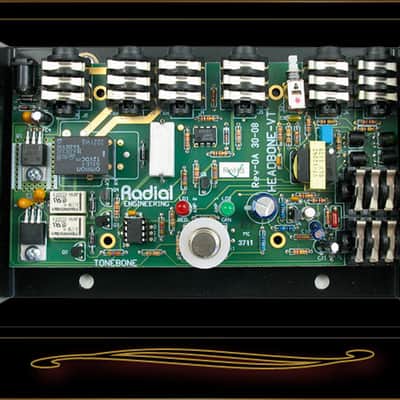

The Radial Headbone is an advanced amplifier switching device that allows two different guitar amp heads to be used with a single speaker cabinet. With the Headbone, one head could be used for rhythm while a second head could be used for soloing. With 100% discreet Class-A circuitry and choice of either buffered or un-buffered inputs, the Headbone will be of particular interest for players that demand the utmost in tonal performance. The Headbone's internal switching comprises a sequence of relays, photocells, and load resistors, all of which are controlled via a digitally programmed chip. Hit the footswitch and the Headbone toggles the guitar signal from one amp to the other, disconnects the speaker and diverts the signal to a load resister, reconnects the speaker to the second head and turns on the guitar, all in quick succession. The Headbone features SafeMode™ whereby even when power is disconnected; the Headbone will automatically default to 'head-1 to cabinet' status, ensuring a constant load on the amplifier.


Headbone Setup: Plug your guitar or FX chain into the Headbone's 'DIRECT' or 'BUFFERED' input*. Connect 'To AMP-1' to one amp head and 'To AMP-2 to the the other using standard 1/4" guitar cables. Connect the speaker outputs from each amp to their respective 'FROM AMP-1' and 'FROM AMP-2' 1/4" jacks using high grade speaker cables*. Now just hook up a speaker cable from the 'To Speaker Cabinet' jack to your speaker, and that's it. But wait... there's more! Headbone is equipped with Radial's Slingshot™ remote switching. Slingshot lets you keep the cables between amps, cabinet and Headbone all short and neat. All you have to do is plug a standard footswitch into the Headbone's 'Slingshot™ Remote' input* and change amps from wherever you want to put the switch! The Headbone is available in 3 models: The VT for two valve/tube heads, the SS for two solid-state heads and the TS for tube to solid-state amp head switching. Headbone – another Radial 'power tool' for serious guitarists.

Switch 2 heads using one speaker cabinet
Slingshot™ remote control with any footswitch
Digital micro-controlled relays for failsafe switching
Choice of direct or buffered input
Model for 2 tube amps (VT) R800 7082
