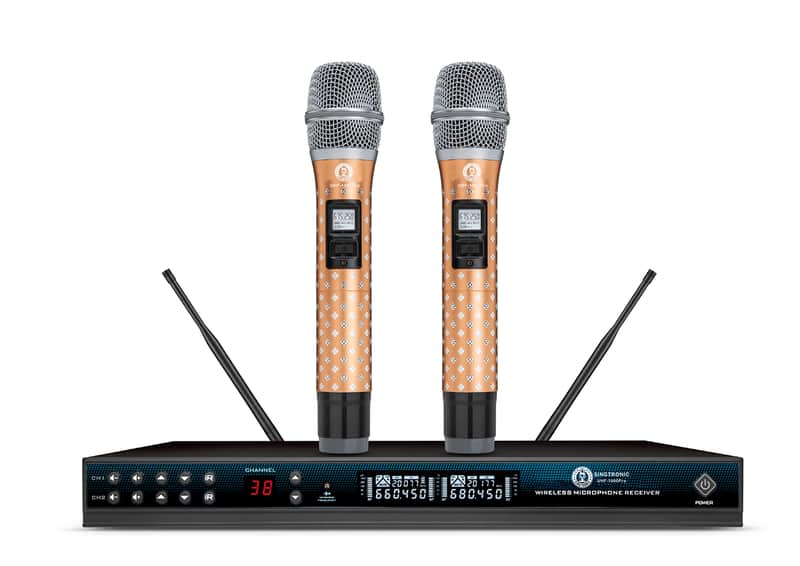

SINGTRONIC UHF-1000PRO 2024 GOLD

Features:

• 1.Intelligent sleep wake up system, preventing howling

• Intelligent power management system, enhanced life

• The sound quality is clear and bright, many sets of the same time use not string frequency

• 300 sets of selectable frequency points, 150 sets of the same time, the general use of the hands, the ability to resist interference

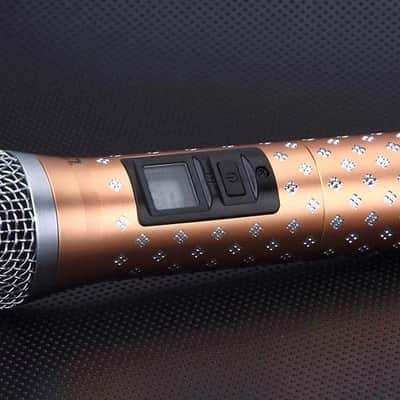

• Launch LCD display channel and battery power, battery voltage flicker to 1.8V automatic shutdown

• LCD of the receiving channels are shown: frequency channel, radio frequency intensity, mute, antenna inside the sub pole, and the contents of the menu in the menu

• Transmitter is divided into two power conditioning, low power 30 meters, 60 meters high power

• Applies to the size of the stage, conference rooms, KTV rooms etc.

System indicators:

• Frequency range: 735-795MHz(Can decide frequency)

• Modulation mode: broadband FM

• Adjustable range: 60MHz

• Channel number: 300

• Channel spacing: 200KHz

• Frequency stability: ±0.005%

• Dynamic range: >105dB

• Maximum frequency offset: ±45KHz

• Audio response: 40Hz-18KHz (±3dB)

• Integrated signal to noise ratio: >110dB

• Comprehensive distortion: ≤0.2%

• Working temperature: -25℃--+40℃

Receiver index:

• Receiver mode: two frequency conversion

• Input power: 5W

• Intermediate frequency: first 110MHz, second 10.7MHz

• Wireless interface: BNC/50Ω

• Sensitivity: 12 dBμV (80dBS/N)

• Sensitivity adjustment range: 10-32dBμV

• Spurious suppression: ≥95dB

• Maximum output level: +10 dBV

Transmitter index:

• Antenna program: Peigua transmitter with 1/4 wave whip antenna, handheld microphone built-in antenna

• Output power: 20mW

• Spurious suppression: -60dB

• Power supply: two AA batteries

• Use time: about 8 - 10 hours
