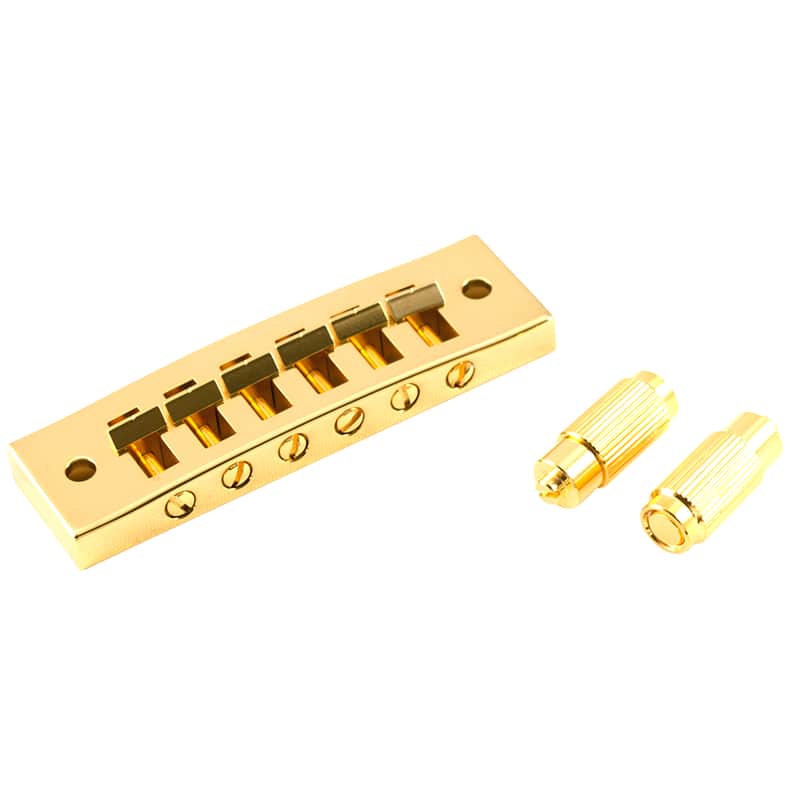

Kluson KHBBG Replacement Brass Harmonica Tune-O-Matic Bridge- Brass Bridge w/Plated Saddles

Kluson® Replacement Brass Or Steel Harmonica Tune-O-Matic Bridge With Brass Saddles - Brass Bridge With Plated Saddles

This bridge popularly referred to as the harmonica bridge is a direct replication of the original using all the same quality fabrication, dimensions, and best of all, milled from steel billet or bell brass to give you the tone you crave. A proper replacement for all those vintage Gibson® guitars with no modifications necessary.Studs and inserts included.

Specifications

• Bridge Dimensions = 3.5 in. L X 1 in. W X 25/64 in. at center.
• E to E String Spacing = 52mm.
• String Pitch = 10.4mm.
• Radius = 12 inch.
• Material = Milled Bell Brass.
• Stud thread = 8mm X 1.25 pitch.
• Spacing Center to Center = 2 7/8 in. (73mm).
• Stud top diameter = 4.7mm.
• Stud base diameter = 9.5mm.
• Inserts included.
