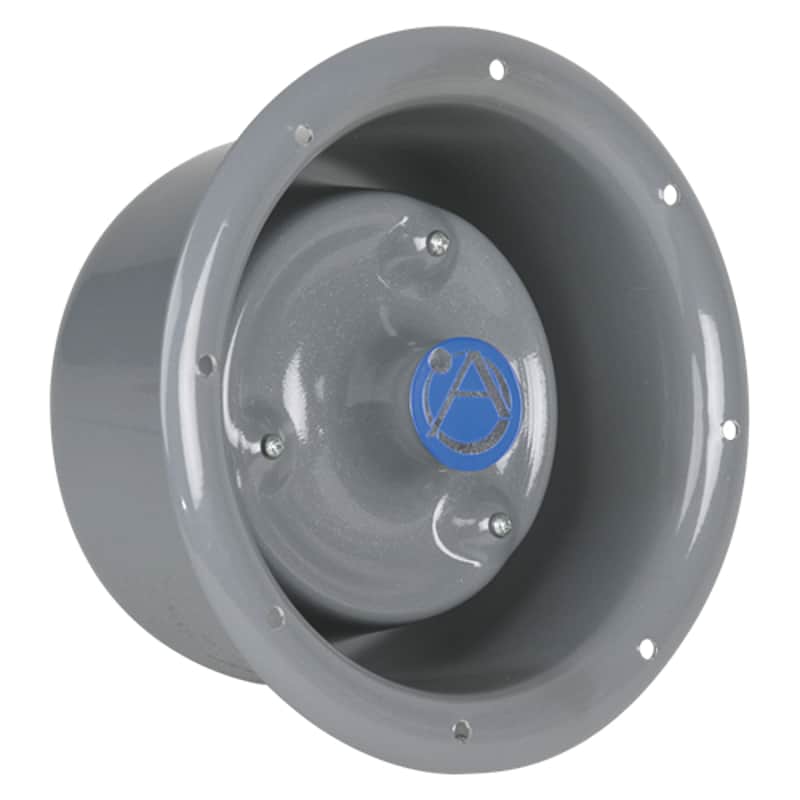

Atlas IED APF-15T 15 Watt Omni-Purpose Loudspeaker with 25/70.7/100V Transformer

The Atlas Sound APF-15T provides 15 watts of continuous power handling with superior intelligibility and efficiency. These vandal-resistant units are designed for flange or recessed mounting to panels, interior/exterior walls, or ceilings.

Metal construction withstands adverse temperatures, humidity and physical abuse. For flexibility and optimum adjustment convenience, transformer-equipped Model APF-15T includes the Vari-Tap® Control/connect center with 7 position, wattage/impedance selection switch.

Weather-resistant metal construction and enclosed wiring terminals eliminate the need and cost of a backbox. However, for aesthetic consideration and retrofit convenience, models will flange mount to any standard size ceiling or wall baffle and/or enclosure capable of accommodating conventional 6" or 8" diameter loudspeakers. Model FAMT-6 mounting kit is required for 8" models.) Recessed installation may be accomplished by mounting Models APF-15 or APF-15T into a 4" or 5 1/2" deep opening, respectively, or to an L20 Series enclosure. L20 Series also includes mounting rings and baffles.

Loudspeakers are finished in grey baked epoxy.

Atlas Sound APF-15T Features:

• Choose from Matching Grilles, Enclosures and Mounting. Rings (Order Separately)
• Double Re-Entrant Design Provides Superior Audibility of Voice and Tone Signaling
• High-Efficiency, 15 Watt Compression Driver with Proven Record of Outstanding Service Reliability
• May be Flange or Recess Mounted
• Transformer(T) Equipped Version for 25, 70.7, or 100V Line
• Vandal and Environment-Resistant Metal Construction for Outdoor or Indoor Use

Atlas Sound APF-15T Specifications:

• Frequency Response: 600 Hz - 14 kHz
• Power Taps: 1, 2, 3.8, 7.5, 15W @ 70.7V
• Dispersion: 95°
• Power Rating: 15 Watts
• Sensitivity: 104dB
• Operating Range: -40° to 70°C
• Depth: 5-3/16" (13.17752 cm)
• Diameter: 5-5/8" (14.2875 cm)
• Shipping Weight: 4.00 lbs (1.81 kgs)
• UL Listed/Standard: 1480
