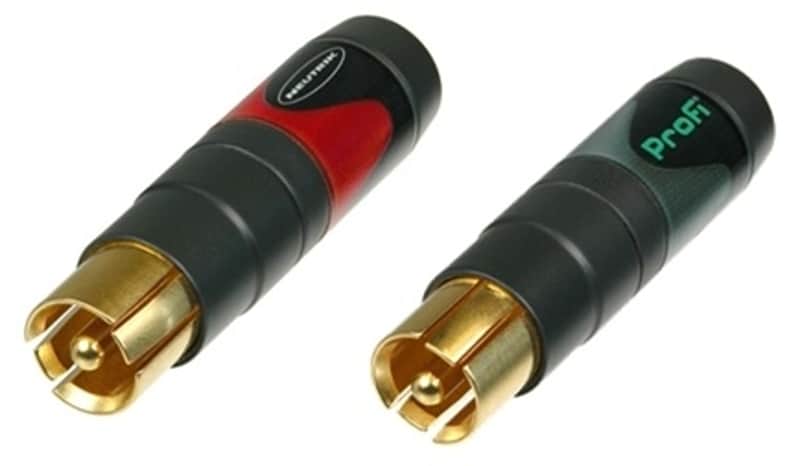

Neutrik NF2CB/2 Pair of RCA Plugs for Large Diameter Cable

Neutrik's NF2C-B/2 is pair of professional "Phono Plugs" (RCA- or CINCH- type) marked red and black. Includes 2 x 2 strain reliefs for cable O.D. 3.0 mm to 7.3 mm.

Neutrik NF2C-B/2 Features:

• Makes ground before signal contact and breaks signal before ground
• No more disturbing noise and broken speaker cones
• Precisely machined to Neutrik's demanding quality standards
• Neutrik unique chuck type strain relief
• Gold plated contacts
• Sleek barrel with soft touch surface and coloured shrink sleeve
• Improved ground solder lug for easy soldering

Neutrik NF2C-B/2 Specifications:

• Electrical Specifications:
  • Capacitance between contacts: 7 pF
  • Rated voltage: 50 V ac
  • Contact resistance: >10G mOhms
  • Insulation resistance: >5 GOhms
  • Dielectric strength: 1500 V dc
• Mechanical Specifications:
  • Cable anchoring: NEUTRIK® chuck principle
  • Cable OD range: 3.0 - 7.3 mm
  • Lifetime: >2000 mating cycles
  • Max. wire size: 1.5 mm² / 16 AWG
  • Solderability: complies with IEC 68-2-20
• Material Specifications:
  • Shell: Brass CuZn39Pb3
  • Contact pin: Brass CuZn39Pb3 0.5 mm Au plated
  • Ground contact: Brass CuZn39Pb3 0.5 µm Au plated over5 µm Ni
  • Strain relief: Polyacetal POM
  • Insulator: PBTP
  • Temperature range: -30°C to +80°C
