The Samson XPD2 USB Digital Wireless System brings the convenience of wireless to your computer recordings and beyond. With a wireless receiver built into a USB stick and a beltpack transmitter, with a LM5 lavelier, the Stage XPD2 allows you to wirelessly record audio straight to your Mac/PC and favorite digital audio software.

Ideal for wireless presentations, podcasting, YouTube performances, karaoke video games, voice over projects and much more, this simple setup gives you professional full-range audio. The RXD2 USB stick receiver connects directly to PC or Mac computers, or with any Samson Expedition Series Portable PA System that features a USB Wireless port. An added feature from the previous generation system, the 1/8" (3.5mm) output allows for headphone monitoring or the XPD2 Handheld to be used with any device that has an analog line input, including smartphones and other mobile devices.*

The XPD2 Wireless system delivers high-quality audio using digital transmission. This type of wireless technology allows the transmitter to send an uncompressed signal to the receiver, so your audio will have greater signal-to-noise when compared to a traditional wireless system. The result is a performance that sounds as good as using a wired microphone.

Additionally, the Stage XPD2 is the perfect accessory for expanding the Samson Expedition Series Portable PA Systems that include USB wireless ports, for full range wireless capability in live applications. XPD2 operates in the license-free 2.4GHz frequency band, is extremely fast and easy to setup and with 100 feet of operating range (environment dependent) the system provides plenty of room to work wirelessly.

Note:*To connect to an iOS device you will need to use Apple's Lightning to USB Camera adapter. To connect to an Android device, you will need a host OTG adapter.

Applications

• Recording
• Live Performance
• Music Education
• Audio for Video
• Journalism
• Karaoke
• Multimedia
• Gaming
• VOIP
• Podcasting

Features

• Works with iPad via Apple's Lightning to USB Camera Adapter
• Works with Android devices via a host OTG adapter

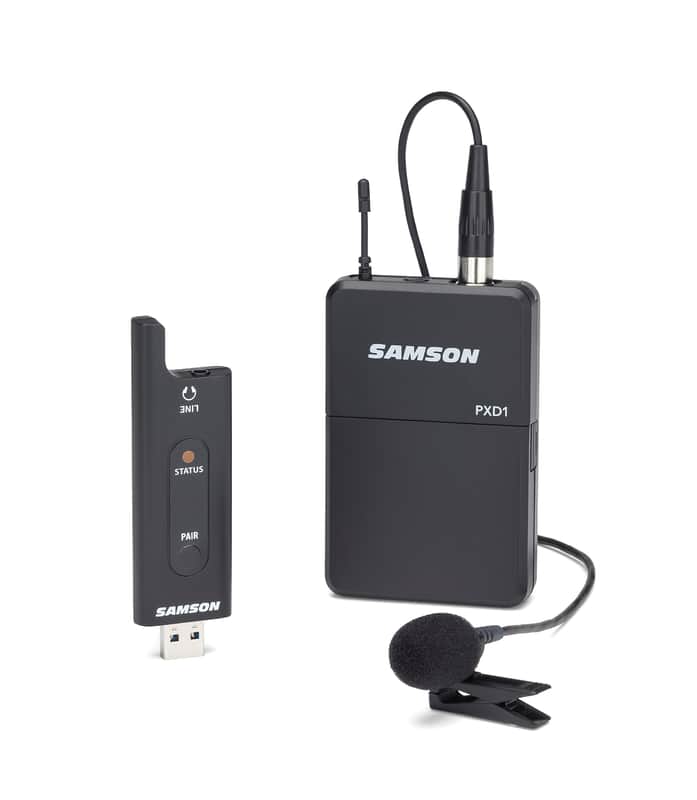

• RXD2 USB stick receiver
• Receiver features a 1/8" (3.5mm) headphone/monitor output
• PXD1 beltpack transmitter with Samson LM8 Lavalier Microphone
• Transmitter offers 20 hours of battery life using two AA batteries (not included)
• 100' operating range (line of sight, environment dependent)
• 1-touch pairing, adjustable Volume controls on transmitter

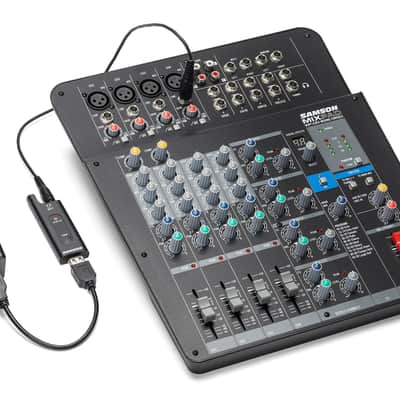

• Compatible with Samson Expedition Series Portable PAs that feature USB Wireless ports
• Includes lapel clip and USB extension cable

Specifications

• XPD2 USB Digital Wireless System:
  • Simultaneous Systems: 2
  • Working Range: 100' (30 m) line of sight
  • Working Frequency: 2.404~2.476 GHz
  • Modulation type: GFSK
  • Audio Frequency Response: 20Hz–16KHz
  • T.H.D.:
  • Signal to Noise: >85 dB
• RXD2 USB Receiver:
  • Max. Analog Audio Output Level: 9 dBu
  • Audio Output Impedance: 100 KΩ
  • USB audio sample rate: 32KHz
  • Headphone Output: 22 mW into 16 O or 32 O
  • Operating Voltage: 5V DC
  • Dimensions: 3.5" x 0.9" x 0.31" (89 mm x 23 mm x 8 mm)
  • Weight: 0.35 oz (10 g)
• PXD1 Beltpack Transmitter:
  • Microphone: Samson LM8 lavalier mic
  • Audio Sample Rate: 32 kHz
  • RF Power:
  • Power Requirements: Two AA (LR6) alkaline batteries
  • Battery Life: 20 hours
  • Dimensions (H x L x D): 3.75” x 2.44” x 0.75” (96 mm x 62 mm x 18.5 mm)
  • Weight: 0.2 lbs (93 g)

Notes

• Some gear shown above are NOT INCLUDED and sold separately. For more information on this and other products, please contact your Sales Pro.
• Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at .
