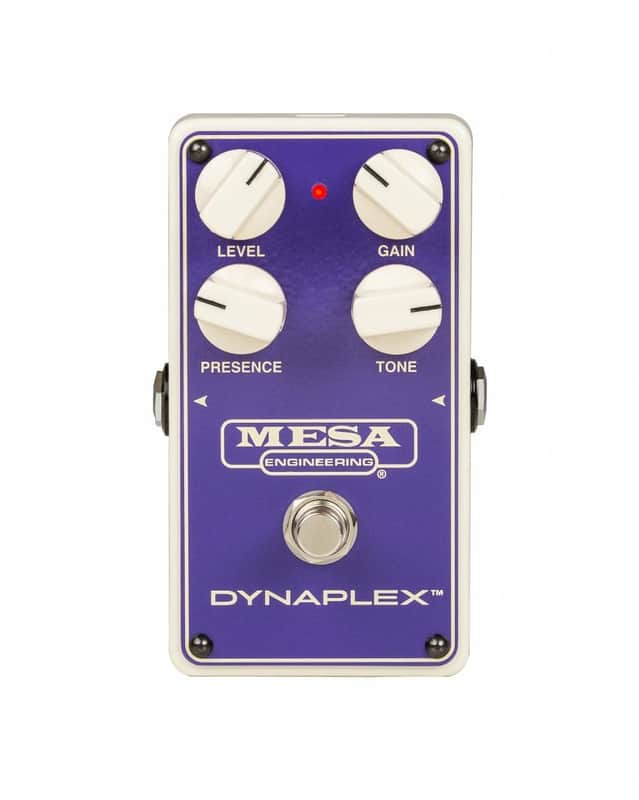

Mesa Boogie Dynaplex British Crunch Overdrive Pedal

The Brits have been coming for 50 years, now with our new DYNAPLEX™, they’ve arrived with the goods… grunt, gut punch, chirping harmonics and the chime you need to pull off Classic Rock, and beyond, as you hear it only in dreams.

• Made in Petaluma, California, USA, with the World’s finest materials

• True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss

• Gain Control allows you to dial in the perfect amount of British-flavored overdrive, dynamic to sustaining

• Master Level Control provides a variable range of signal boost up to +20db

• Tone Control balances the amount of high frequencies

• Presence Control further tailors the high frequencies providing cut and clarity

• Internal EQ Voicing Switch provides added style/voicing option

• On/Off Status LED

• ¼” Input & Output Jacks (Nominal Input -20db)

• 9V Battery Powered or optional 9VDC Powered via External Power Jack Input (Center Tip Negative)

• Power Consumption (Current Draw): 9VDC/15mA

• Dimensions (W/D/H): 2.87” x 4.77” x 2.28” (73mm x 122mm x 58mm)

• Weight: 11.36 oz. (322g) without battery
