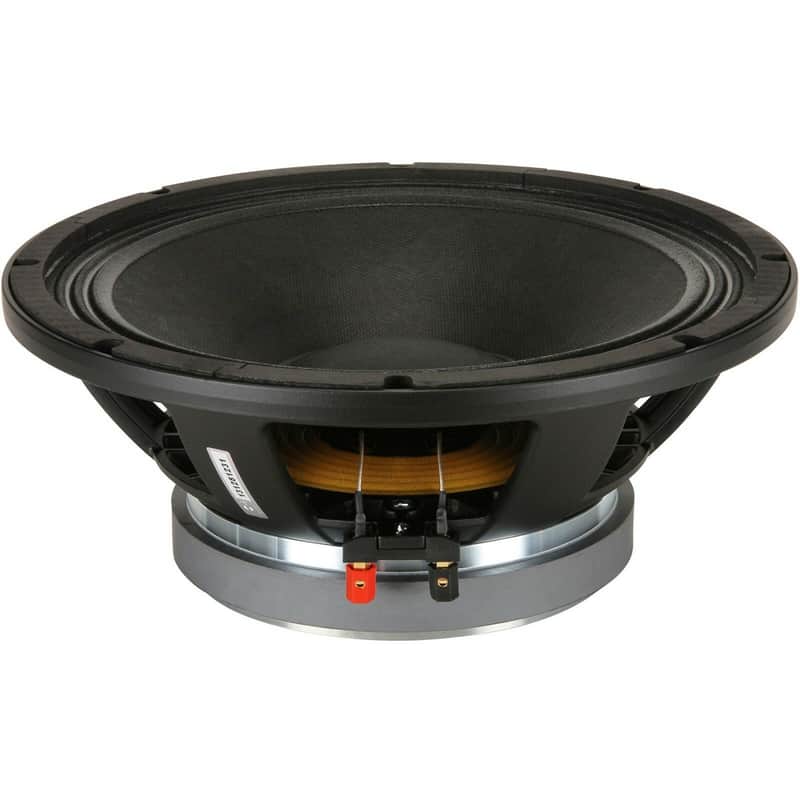

B&C 12PE32 12" Midbass Pro-Audio Replacement Speaker Woofer Sub 500 Watts 8-Ohms

B&C 12PE32 12" Midbass Pro-Audio Replacement Speaker woofer sub 500W, 8-Ohm

Overview: B&C 12PE32

B&C's 12PE32 is a very high efficiency 12" driver for professional woofer and midbass speaker applications. The 12PE32's 2.5" aluminum voice coil and a low-mass yet stiff cone help provide clean, detailed, high-impact sound reproduction. This Italian-made 12" pro PA speaker resolves fine details in audio program material and reproduces them accurately at concert-level volume.

Features

• 500 W continuous program power capacity
• 64 mm (2.5 in) aluminium voice coil
• 50 - 4000 Hz response
• 101 dB sensitivity

Specifications

• Nominal Diameter320 mm (12.0 in)
• Nominal Impedance8

• Minimum Impedance6.7

• Nominal Power Handling1250 W
• Continuous Power Handling2500 W
• Sensitivity3101.0 dB

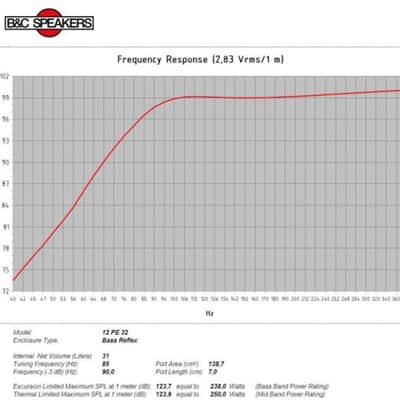

• Frequency Range50 - 4000 Hz
• Voice Coil Diameter65 mm (2.5 in)
• Winding MaterialAluminium
• Former MaterialGlass Fibre
• Winding Depth12.0 mm (0.5 in)
• Magnetic Gap Depth7.0 mm (0.28 in)
• Flux Density1.4 T

Parameters

• Resonance Frequency51 Hz
• Re5.8
• Qes0.19
• Qms7.6
• Qts0.18
• Vas101.0 dm3 (3.56 ft3)
• Sd522.0 cm2 (80.9 in2)
• ??6.8 %
• Xmax2.8 mm
• Xvar5.0 mm
• Mms37.0 g
• Bl19.1 Txm
• Le1.2 mH
• EBP268 Hz

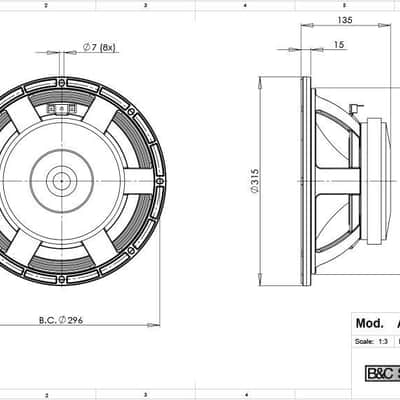

Mounting and Shipping Info

• Overall Diameter315 mm (12.4 in)
• Bolt Circle Diameter296 mm (11.6 in)
• Baffle Cutout Diameter282.0 mm (11.1 in)
• Depth135 mm (5.3 in)
• Flange and Gasket Thickness15 mm (0.59 in)
• Air Volume Occupied by Driver3.1 dm3 (0.11 ft3)
• Net Weight7.6 kg (16.7 lb)
• Shipping Units1
• Shipping Weight8.5 kg (18.74 lb)
• Shipping Box360x360x200 mm (14.17x14.17x7.87 in)

Service Kit

• RCK012PE328
