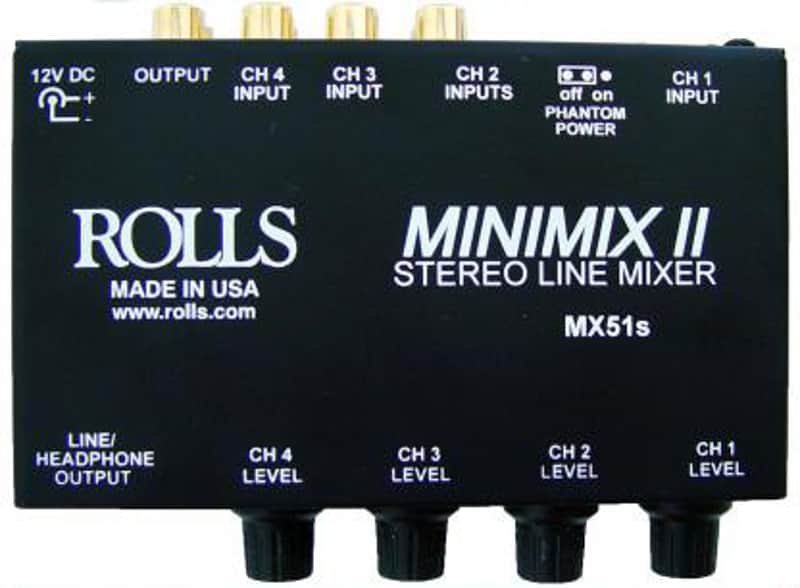

Rolls' MX51s Mini Mix 2 is a compact, four-channel mixer with individual volume controls, and a headphone/line output. The unit has one XLR input along with an 1/8" input and 3 sets of stereo RCA inputs. It has enough gain and output level to connect to a power amplifier, with either RCA or 1/8" jacks. The MX51s is powered by an included ROLLS PS27 12 VDC adapter.
Features- For mixing an XLR or 1/8" input with up to three RCA input signals
- 4 channels total
- Line/headphone output
- Power adapter included
- Stere RCA line-level output
- Input Impedance: 10K Ohms unbalanced each jack
- CH 1 Gain: 32 dB XLR jack (highest gain)
- Phantom Power: for CH 1 microphone XLR
- Ch 2 Gain: 26 dB 1/8" and RCA
- Ch 3 and 4 Gain: 26 dB each RCA
- Output: 1/8" stereo and stereo RCA
- S/N Ratio: >90 dB
- THD:< .008%
- IMD(SMPTE):< .008%
- Power: ROLLS PS27 12 VDC adapter
- Size: 3" x 5" x 1.25" (8 x 13 x 3.2 cm)
- Weight: 1 lb (0.45 kg)
