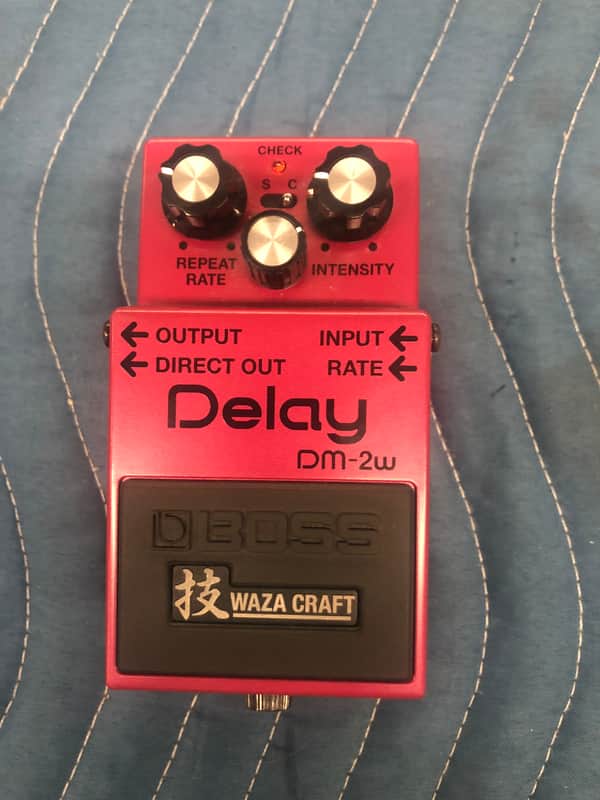

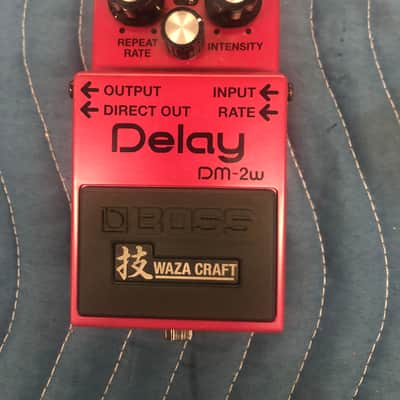

Ever since being discontinued way back in 1984, the BOSS DM-2 Delay pedal has remained highly sought after by players everywhere for its warm,‚“bucket brigade€ analog delay tone. Now, the DM is back! With the Waza Craft DM-2W, the coveted stomp has been reborn with switchable sound modes and greater versatility for today's music styles. Using 100-percent analog circuitry, the DM-2W's Standard mode nails the lush sound and 20-300 ms delay range of the original DM-2. Flipping into Custom mode instantly changes the sound character to a cleaner analog tone with over twice the available delay time.

• Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
• True reproduction of the vintage DM-2 Delay sound
• Premium all-analog circuit with BBD (bucket brigade) delay line
• Standard mode for authentic DM-2 tone with 20-300 ms delay time
• Custom mode provides warm-yet-clear delay sound and maximum 800 ms delay time
• Expression pedal input for foot control of delay time
• Two output jacks allow separate output of delay and direct sounds

SPECIFICATIONS
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Delay Time:

• Standard Mode: 20 ms to 300 ms
• Custom Mode: 40 ms to 800 ms

Controls:

• Pedal switch
• Mode switch
• REPEAT RATE knob
• INTENSITY knob
• ECHO knob

Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors:

• INPUT jack: 1/4-inch phone type
• OUTPUT jack: 1/4-inch phone type
• DIRECT OUT jack: 1/4-inch phone type
• RATE jack: 1/4-inch TRS phone type
• DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
Current Draw: 35 mA

SIZE AND WEIGHT
WidthL 73 mm, 2-7/8 inches
Depth: 129 mm, 5-1/8 inches
Height: 59 mm, 2-3/8 inches
Weight: 460 g, 1 lbs. 1 oz.
