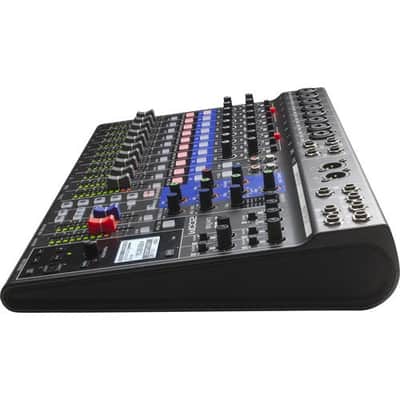

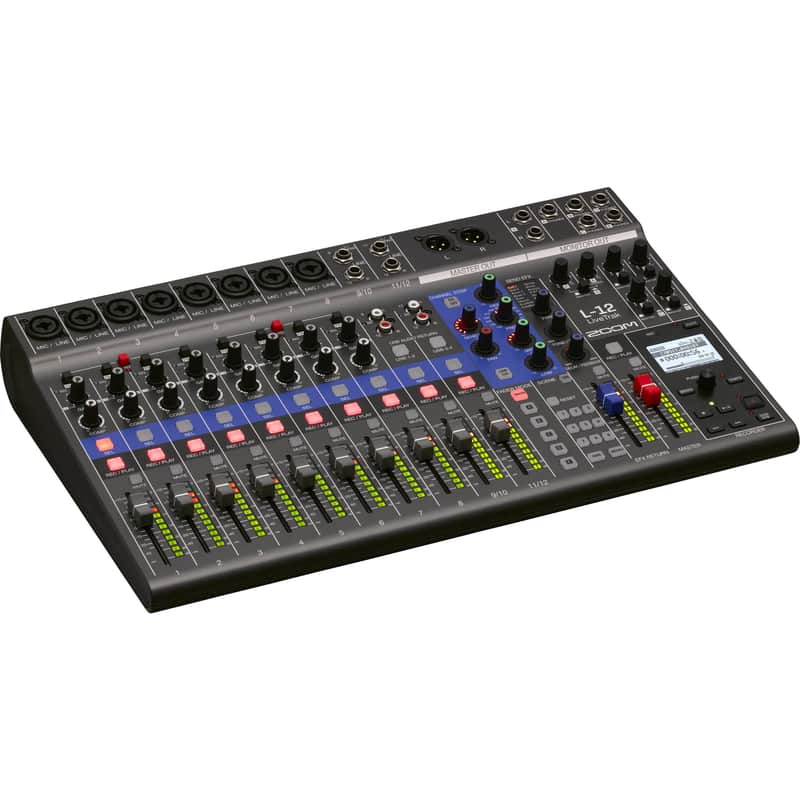

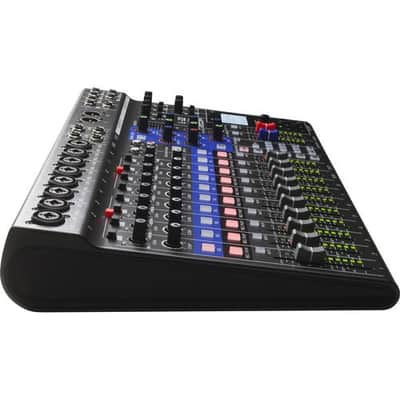

The highly flexible Zoom LiveTrak L-12 is a 12-channel digital mixer and multitrack recorder, well suited for live performances, studio recording, band rehearsals, podcasts, and more. The compact mixer features 8 mono channels, each with combo mic/line XLR-1/4" inputs with high gain, low-noise microphone preamps, +48V phantom power, and a single compression knob, while the two stereo inputs offer dual 1/4" and RCA inputs. Channels 1-2 also offer Hi-Z inputs for connecting guitars and basses. All channels work with the on-board channel strip, which provides a low-cut filter, a 3-band EQ, a pan control, and a send FX for sending signal to the 16 built-in high-quality effects processor with a dedicated EFX Return channel.

The main output utilizes balanced XLR outputs, while a stereo monitor send is available via two 1/4" outputs. Additionally, the Zoom LiveTrack L-12 offers five headphone outputs, each with the ability to set up customized mixes. Simply connect your headphones and adjust the levels to taste. There are nine snap-shot presets, which allow you instant recall of different setups and sessions.

The built-in SD recorder can simultaneously record every channel and the master fader stereo signal output for a total of 14 tracks at resolutions up to 24-bit / 96 kHz. Files can easily be copied to a computer and used in a DAW. In addition, overdubbing and punching in/out can be done as expected when using the unit as a multi-track recorder. The L-12 can also function as a 14-in/4-out USB audio interface, allowing you to record directly to your favorite software DAW or to iOS devices. Other notable features include 12-segment LED meters on all channels, a built-in metronome, and a built-in slate mic for identifying takes. The Zoom LiveTrack L-12 ships with a power cord and a USB cable.

-12-channel digital mixer (8 mono/2 stereo)
-14-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning-to-USB Camera Adapter is required for iOS)
-12-track 24-bit/96kHz recording directly to an SD card
-Record up to 48kHz to a computer and an SD card simultaneously
-Create customizable, savable headphone mixes for up to 5 band members
-Complete your entire project on the mixer, or transfer all 12 discrete tracks to your DAW for editing and mixing
-8 combo jacks accommodate both XLR and 1/4" connectors
-8 great-sounding mic preamps with phantom power and +60dB of gain
-Channels 1–2 offer hi-Z inputs for your electric guitar or bass
-Channels 9/10 and 11/12 have TRS and RCA connectivity for keyboards and other audio devices
-Each channel features a 3-band mid-parametric EQ and 16 built-in effects
-Channels 1–8 include a dedicated compressor for controlling dynamics
-Channels 3–8 have a -26dB pad for capturing loud sources
-Clear 12-segment LED metering for keeping an eye on your levels
-Save up to 9 scenes and recall your custom settings automatically
-Record automatically when the master fader detects a certain dB level
-Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time
-Built-in slate mic for recording comments or talk back
-Onboard metronome for keeping the band in sync

Type: Digital Mixer with USB Interface
Channels: 12
Inputs - Mic Preamps: 8 x XLR-1/4" combo (mic/line)
Phantom Power: 8 channels (1-4,5-8)
Inputs - Line: 4 x 1/4" (2 x stereo channels), 2 x Dual RCA Stereo
Inputs - Other: 2 x XLR-1/4" combo (Hi-Z)
Outputs - Main: 2 x XLR (master), 2 x 1/4" (monitor)
Aux Sends: 5 x Monitor
Busses/Groups: 1 x FX
Talkback: Built-in slate mic
Remote: 1 x 1/4" (footswitch control)
USB: 1 x Type B, 1 x Type A
Computer Connectivity: USB (14 x 4)
Headphones: 5 x 1/4" TRS (headphones/monitor)
Faders: 10 x channel faders, 1 x EFX return, 1 x Master
A/D Resolution: Up to 24-bit/96kHz
EQ Bands: 3-band Mid-parametric EQ
Effects: 16 effect varations; Reverb, Delay
Signal Processing: Compression
Features: Save up to 9 scenes, Metronome, Powered headphone outs
Transport Controls: Yes
Screen: LCD screen
Storage: SD/SDHC/SDXC card slot
Power Source: 12V DC power supply (included)
Height: 2.78"
Depth: 11.1"
Width: 17.5"
Weight: 5.58 lbs.
UPC: 884354018054

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.learn more
  • LiveTrak L-12 Digital Mixer / Recorder
  • 2022
Sample Rate
  • 96 khz
  • Digital
  • Desktop Standalone
Bit Depth
  • 24-bit
Number of Headphone Outputs
  • 5
Number of Analog Outputs
  • 0
Number of Analog Inputs
  • 12
Number of Channels
  • 12
