CTP Systems DCU304 Dante Enabled Commentary / Announcer Unit

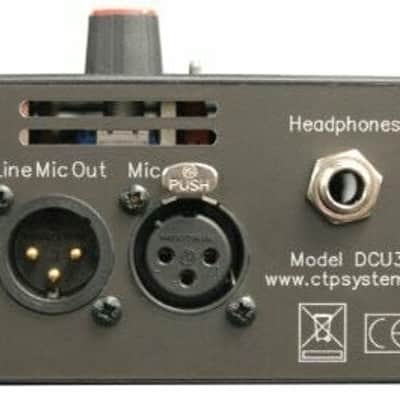

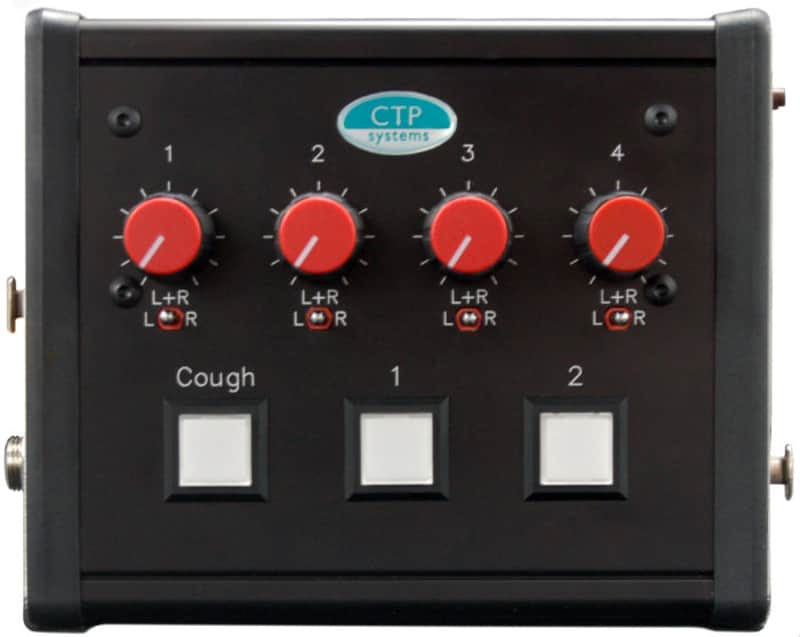

The DCU304 is a Dante enabled Commentary / Announcer unit  with four inputs, each selectable to left/right/both ears, one microphone output plus a cough key and two 'lazy' talkback outputs. On pressing a talkback key the program microphone output is silently muted and redirected to the selected talkback output(s). The microphone also has a local line level analog output which also mutes when a talkback key is pressed.

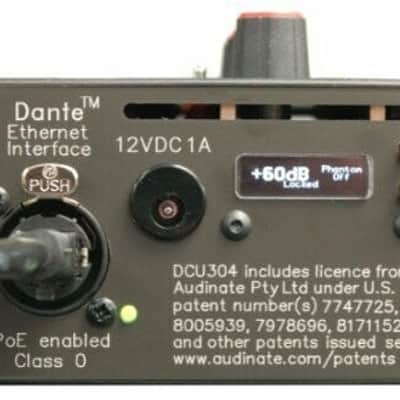

Network connection may be either a Neutrik ethercon or a standard RJ45 connector. A LED indicates network status.


Microphone gain is adjustable in 1dB steps from +70dB to +15dB and +6dB via the OLED display and lockable push buttons. 48 volt phantom power may also be selected.


The DCU304 may be powered PoE or via an external 12 volt power source and can also be used as a cost effective Dante four wire box or as a top quality analog or Dante mic amp.

The DCU304 can also be used as a cost effective Dante four wire box or as a top quality analogue or Dante mic amp.
