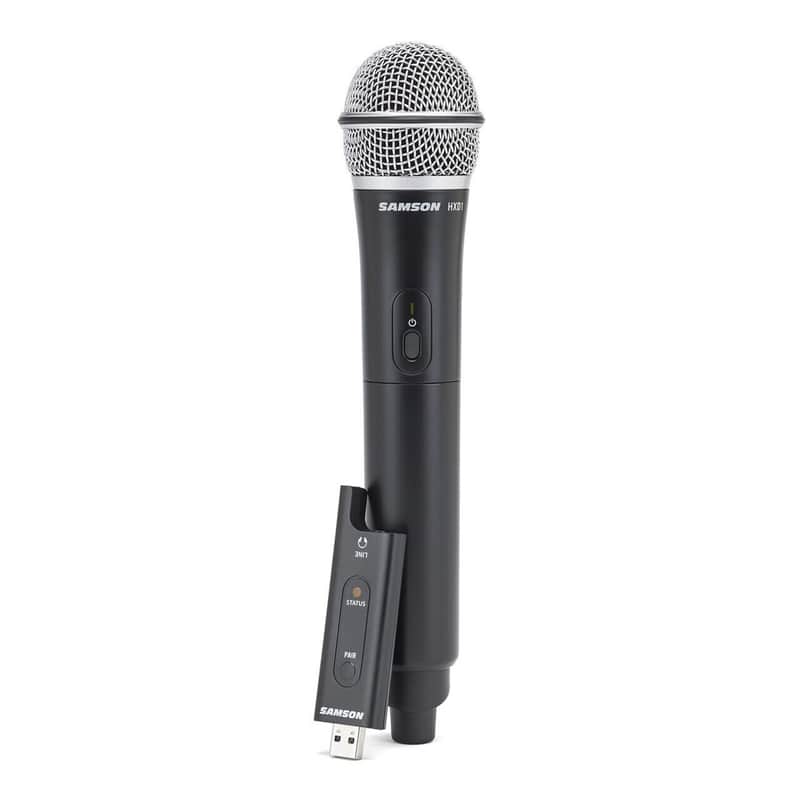

The Samson XPD2 Handheld system allows you to bring a wireless microphone to a variety of sound applications via its uniquely designed USB stick receiver. Offering simple setup, professional full-range audio and 100' of wireless operation, the XPD2 Handheld is perfect for live performances, digital communications and mobile productions.

Key Features

• 2.4GHz USB digital wireless system
• Ideal for broadcasting, live streaming, presentations and more
• Plug-and-play operation with Mac and Windows
• Works with iPad via Apple's Lightning to USB Camera Adapter
• Works with Android devices via a host OTG adapter
• RXD2 USB stick receiver
• Receiver features a 1/8" (3.5mm) headphone/monitor output
• HXD1 handheld microphone transmitter with Samson Q6 Dynamic Microphone element
• Transmitter offers 20 hours of battery life using two AA batteries (not included)
• 100' operating range (line of sight, environment dependent)
• 1-touch pairing, adjustable Volume controls on transmitter
• Compatible with Samson Expedition Series Portable PAs that feature USB Wireless ports
• Includes mic clip and USB extension cable

Technical Specifications

XPD2 USB Digital Wireless System
Simultaneous Systems
2
Working Range
100' (30m) line of sight
Working Frequency
2.404~2.476GHz
Modulation type
GFSK
Audio Frequency Response
20Hz-16KHz
T.H.D.
<0.1% (@ 1KHz, -10dBu)
Signal to Noise
>85dB
RXD2 USB Receiver
Max. Analog Audio Output Level
0dBu
Audio Output Impedance
100K OHM
USB audio sample rate
32KHz
Operating Voltage
5V DC
Dimensions
3.5" x 0.9" x .31" (89 mm x 23mm x 8mm)
Weight
0.35oz (10g)
HXD1 Handheld Transmitter
Microphone Element
Q6 dynamic
RF Power
<10 mW EIRP
Power Requirements
Two AA (LR6) alkaline batteries
Battery Life
20 hours
Dimensions
10.2" x ø2.1" (260mm x ø54mm)
Weight
0.5lb (218g)
