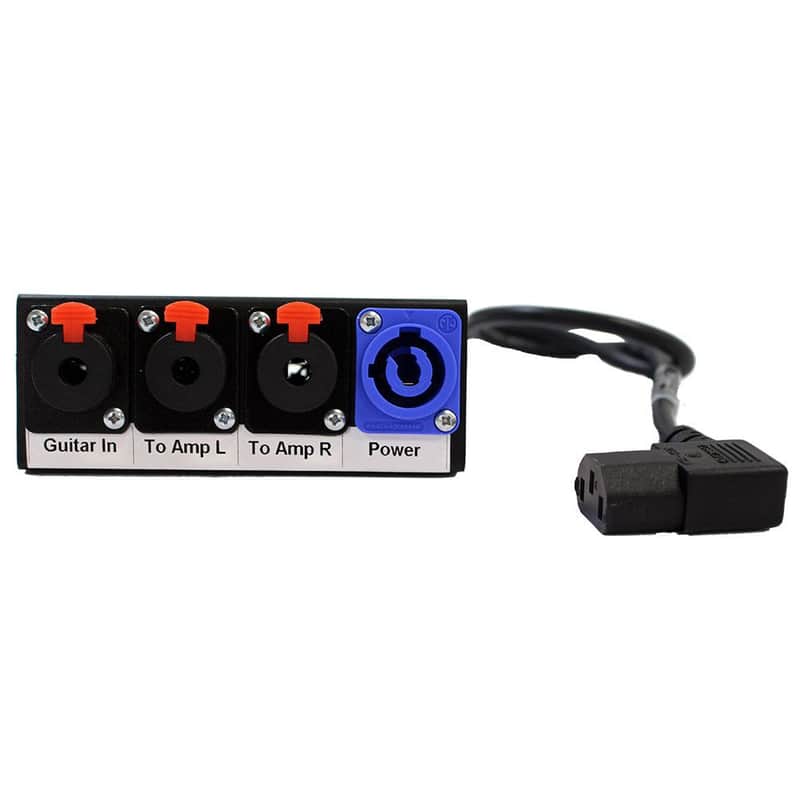

Best-Tronics 4-Port Input/Stereo-Output/Power Pedaltrain Jack Panel Kit

4 Port Pedaltrain Panel with (3) 1/4" Locking TRS/TS Feedthrough Connectors and (1) PowerCON Input to Right Angle Female IEC C13 connector

The panel comes with the (3) 1/4" Connectors not installed. The PowerCON connector will be installed to the panel and the line cord will be crimped with the needed lugs. After installing the Panel to the pedalboard, you will need to install the Power Cable to the PowerCON Connector. This is easily done as you just need to slide the lugs on to the tabs of the PowerCON Connector. Please see our PowerCON Installation Instructional Video for more information. The PowerCON used is the Neutrik NAC3MPA-1 connector, or Power In. It is preferable over a standard IEC as it features a locking connection. The right angle IEC features a "right side cable exit."

The panel is setup standard as ports 1-3 as 1/4" (input/output) and port #4 as the PowerCON. The IEC cable (to power supply) is 18" and is measured from the back of the panel to the end of the IEC Connector.

Uses a standard PowerCon power Cable (not included), they are sold separately.
