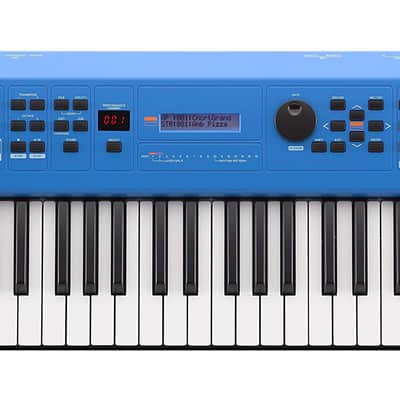

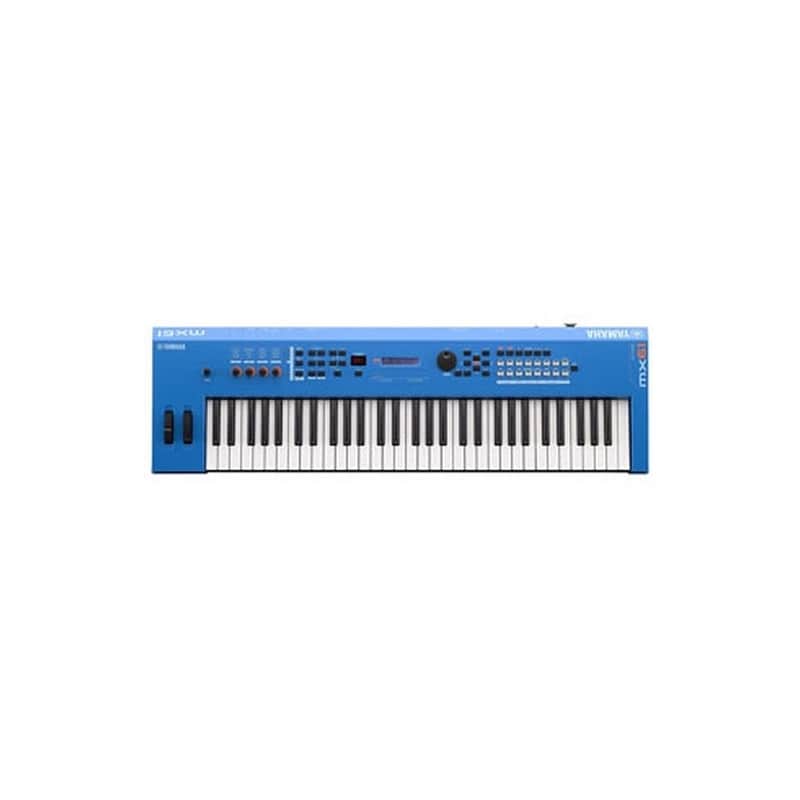

MX61 is a 61 key music synthesizer which combines Motif XS sounds, USB Audio/MIDI connectivity and advanced DAW/VST controller features at a groundbreaking level of affordability.

Key Features

• Over 1000 sounds from the MOTIF series
• Equipped with VCM effects
• Easy Split /Layer Performance Mode for Instant Inspiration
• 16-Part Multi timbral and 128-note polyphony
• Extensive Hands-On controls for VSTs and DAWs
• Bi-directional USB Audio/MID interfacing
• A complete suite of music production software included
• A lightweight design with a quality Yamaha keyboard
• Complete analog and digital connectivity

Technical Specifications

Dimensions
Width: 984 mm
Height: 112 mm
Depth: 299 mm
Weight: 4.8kg
Control Interface
Number of Keys: 61
Initial Touch: Yes
Tone Generator
Tone Generator: AWM2
Maximum Polyphony: 128 notes
Multi Timbral Capacity: 16 parts (Internal)
Wave: Approx.166 MB (when converted to 16-bit linear format)
Voices: Preset: 1,106 Normal Voices + 61 Drum Kits, GM: 128 Normal Voices + 1 Drum Kit, User: 128 Normal Voices + 8 Drum Kits
Performance: User: 128 (16 parts)
Effects: Reverb x 9 types (42 presets), Chorus x 17 types (88 presets), Insertion Effect x 48types (267 presets) x 4, Master EQ (5 bands)
Sequencer
Tempo (BPM): 5 300
Songs: 27 Demo Songs
Patterns: 208 Patterns
Arpeggio: 999 types
Sequence formats: SMF Format 0 (playback only)
Other
Sequence Software compatible with the Remote Control function: For Windows: Cubase 6 or later, SONAR X1 ProducerFor Mac: Cubase 6 or later, Logic Pro 9, Digital Performer 7 *Functions to be controlled differ depending on the software
Controllers: Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1
Display: 3 digit LED + 20 x 2 line character LCD (backlit)
Connectors: OUTPUT [L / MONO] / [R] (standard phone jack), [PHONE] (standard stereo phone jack), [FOOT CONTROLLER], [SUSTAIN], MIDI [IN] / [OUT], USB [TO HOST] / [TO DEVICE], [AUX IN], DC IN
Power Supply: 9 W
Accessories: AC adaptor (PA-150 or an equivalent recommended by Yamaha), Owner’s Manual, Online Manual CD-ROM x 1 (containing Reference Manual, Synthesizer Parameter Manual, and Data List), DVD-ROM x 1 (containing DAW software)
