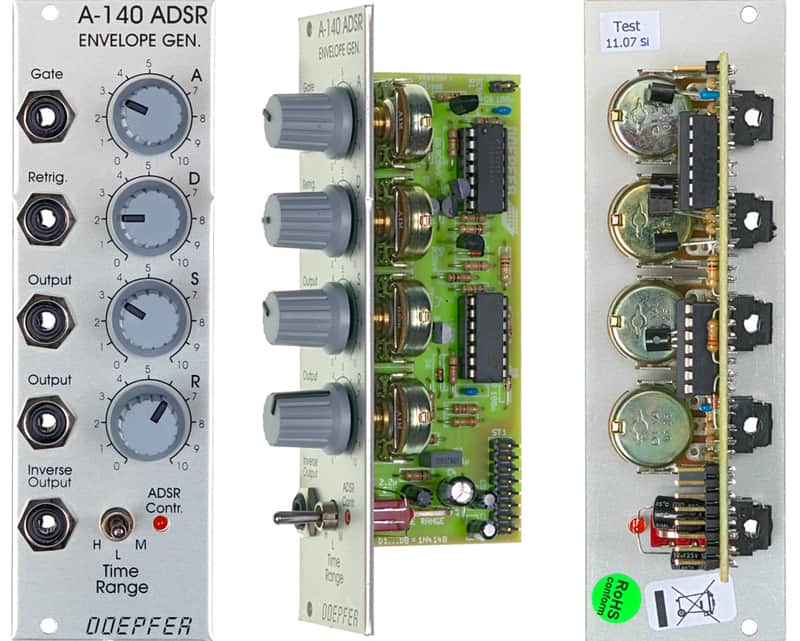

Module A-140 is an envelope generator, and, since it puts out control voltages, counts as one of the modulation devices in a modular system. As soon as the gate input receives sufficient voltage, the ADSR generates a variable voltage, changing in time, called an envelope. This varying voltage is output in normal (positive) and inverted form, and can be used, eg., for voltage controlled modulation of a VCO, VCF, or VCA, or for processing other modules' inputs and outputs. \nThe shape of the envelope is governed by four parameters: Attack, Decay, Sustain and Release. \nThe envelope is started (triggered) by a gate signal either from the INT.GATE voltage on the system bus, or, if a signal is put into it, from the gate input socket. \nThe envelope can also be re-triggered, ie. start from scratch again, each time a trigger signal is sensed at the Retrig. input socket, when the gate is still open. \nIn combination with the Comparator module A-167 a free-running "ADSR-LFO" can be realized. \n Technical Specs.: \n
    \n
  • Width: 8HP
  • \n
  • Depth: 50mm
  • \n
  • Current: 20mA
  • \n
\n  \n \n

Product Specs

Condition
Mint (Used)
Mint (with inventory) items are in essentially new original condition but have been opened or played.learn more
Brand Doepfer
Model A-140
Categories Modular Synths, Eurorack
