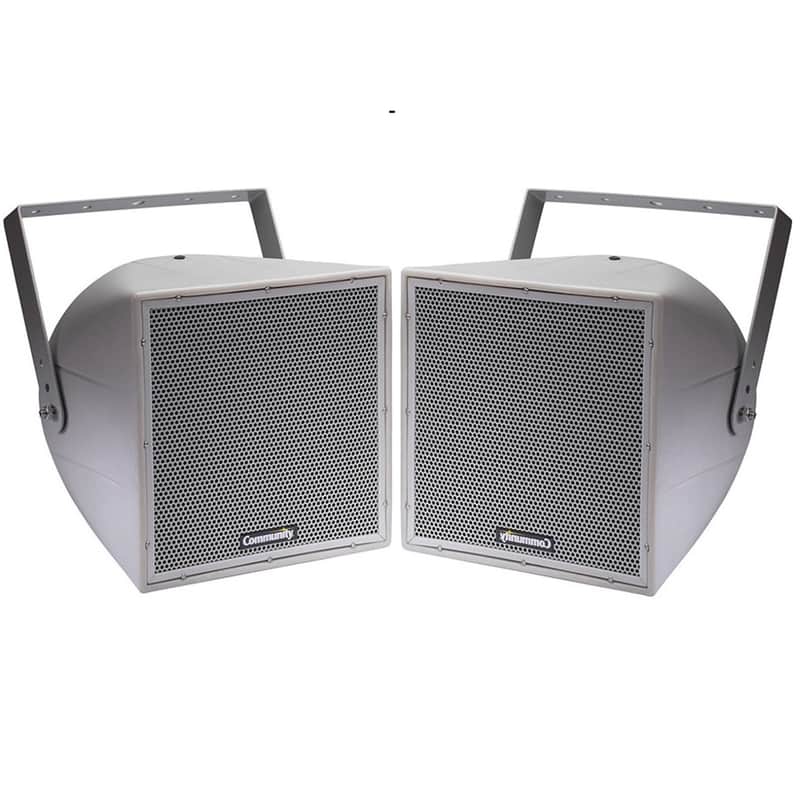

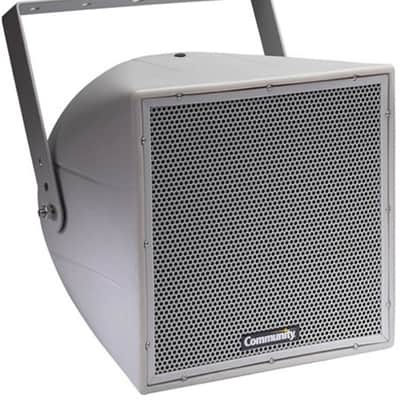

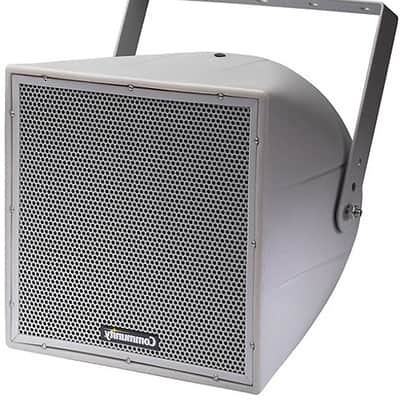

COMMUNITY R.25-94Z Full-Range 2-Way Weather Resistant Speaker Pair

 R.25-94Z  COMMUNITY

 Full Range Weather Resistant Speakers

Community's R.25-94Z is a 2-way, full-range loudspeaker system designed to provide high quality voice and music reproduction in applications requiring extreme weather resistance. It is designed to withstand long-term exposure to tough, environmental conditions and to provide performance normally associated only with indoor loudspeakers.

The R.25-94Z has an 8-inch (203mm) cone LF driver and a 3/4-inch (20 mm) exit HF compression driver with a weather resistant diaphragm. The HF driver is coupled to a nominal 90° x 40° horn. The HF assembly is coaxially mounted with the LF driver. The enclosure and HF horn are molded of UV resistant gray polyethylene. All exposed hardware is stainless steel. The Weather-Stop™ grille assembly, retained by stainless steel screws to the front of the enclosure, consists of three layers.

Applications:

• Convention centers

• Fill speaker for stadia, athletic fields, arenas and race tracks

• Outdoor background music / paging systems

• Theme and amusement parks

• Fairgrounds and rodeos

• Malls, cruise ships, skating rinks

• Swimming pools

Features:

• High fidelity

• 2-way, horn loaded, coaxial

• Optional 200W, 70V auto former version available (model R.25-94TZ)

• Rotomolded, UV weather-resistant enclosure

• High efficiency

• Integral mounting points

• High power passive crossover

• Five-year product warranty / Fifteen-year enclosure warranty

Specifications:

Operating Range:

• 100 Hz to 16 kHz

• 160 Hz to 12.5 kHz (±3 dB)

Max Input Ratings:

• 200W continuous, 500W program

• 40 volts RMS, 89volts momentary peak

• Recommended Power Amplifier: 420W to 600W @ 8 ohms

Sensitivity (1W/1m):

• 97 dB SPL (160 Hz to 10 kHz 1/3 octave bands)

• 97 dB SPL (250 Hz to 4 kHz speech range)

• Maximum Output: 120 dB SPL / 127 dB SPL (peak)

• Nominal Impedance: 8 ohms

• Minimum Impedance: 4.6 ohms @ 10.4 kHz

Nominal –6dB Beamwidth:

• 90°H (+7° / -13°, 2 kHz to 10 kHz)

• 40°V(+35° / -10°, 2 kHz to 10 kHz)

• Axial Q / DI: 13.5 / 11.3, 2 kHz to 10 kHz

• Crossover Frequency: 2 kHz

• Recommended Signal Processing: 100 Hz high pass filter

Drivers:

• LF (1) 8” cast frame, Cool-Coil™

• HF (1) 3/4” exit, titanium free, Ferrofluid-cooled

• Driver Protection: DYNA-TECH protection circuitry

• Input Connection: 16-2 SJOW (12 ft /4 m)

• Controls: None

• Enclosure: Rotomolded HDPE, light gray color

• Enclosure Hardware: None

Mounting/Rigging Provisions:

• (5) rigging points (M8hardware)

•  1-3/8" pole mount socket

• Grille: 16-gauge perforated stainless steel, 3-layer WeatherStop grille

• Required Accessories: 24 dB/Oct high pass filter

• Supplied Accessories: (1) Stainless steel (304) yoke bracket

• Optional Accessories: Pole mount system

• Dimensions (H x W x D): 11.3" x 11.3" x 11.3" (287 x 287 x 287 mm)

• Weight: 20 lbs. (9.1 kg)

• Shipping Weight: 23.5 lbs. (10.7 kg)

SALE: $1696.00

FREE S&H in continental US (e-mail for international / offshore USA rates)
