Here's anotherFull Compass EXCLUSIVE:aDigital Mixer Bundle that includes: Allen & Heath SQ-5, Allen & Heath AP11332 Dust Cover, Allen & Heath AB168, and Elite Core SUPERCAT6-S-EE-50 — all providing a great value for our customers! Please contact your Sales Pro for further details.

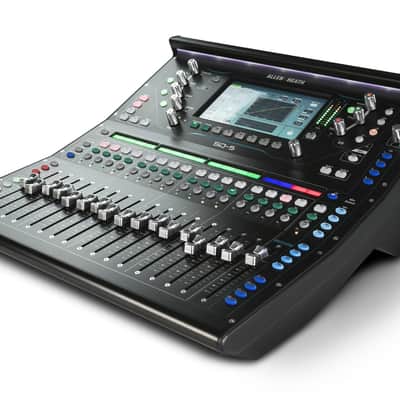

Allen & Heath SQ-5 -Powered by Allen & Heath’s revolutionary XCVI 96kHz FPGA engine, SQ-5 is built for professionals in the most demanding live sound applications. Delivering class-leading high resolution audio with an ultra-low <0.7ms latency, the SQ-5 gives you unrivalled power and audio fidelity. The mixer has 16 onboard preamps and 8 stereo FX engines with dedicated return channels and access to the acclaimed RackExtra FX library. 12 stereo mixes (configurable as groups or auxes) make SQ the perfect companion for in-ear monitoring setups, whilst Automatic Mic Mixing* takes the strain in multi-mic environments. SQ-5 gives you all the tools to meet any requirement, from AV and corporate events to live productions and houses of worship.

Allen & Heath AP11332 Dust Cover -The Allen & Heath AP11332 is a water repellent polyester dustcover for the Allen & Heath SQ-5 Mixer with printed logo.

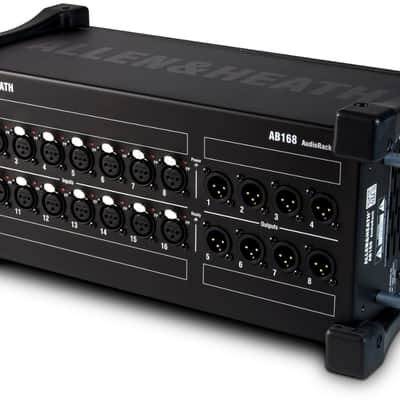

Allen & Heath AB168 -The Allen & Heath AB168 is a portable AudioRack, providing 16 XLR inputs and 8 XLR outputs when connected to a GLD-80 or GLD-112 mixer, or to an AR2412 AudioRack. It connects over a single Cat5 cable to the GLD mixer or to an AR2412 AudioRack via a secure dSNAKE EtherCon port. A second EtherCon port is provided for daisy-chaining to another AB168 box or connection of a ME personal mixing system. AB168 auto updates its firmware to synchronise with the GLD system.

Elite Core SUPERCAT6-S-EE-50 -Elite Core Audio's SUPERCAT6-S-EE is a rugged shielded Cat6 cable encased in a thick PVC outer jacket and terminated with shielded Tactical Ethernet RJ45 connectors. With its ultra-durable rubber jacket, this cable is designed to withstand the harshest touring conditions.

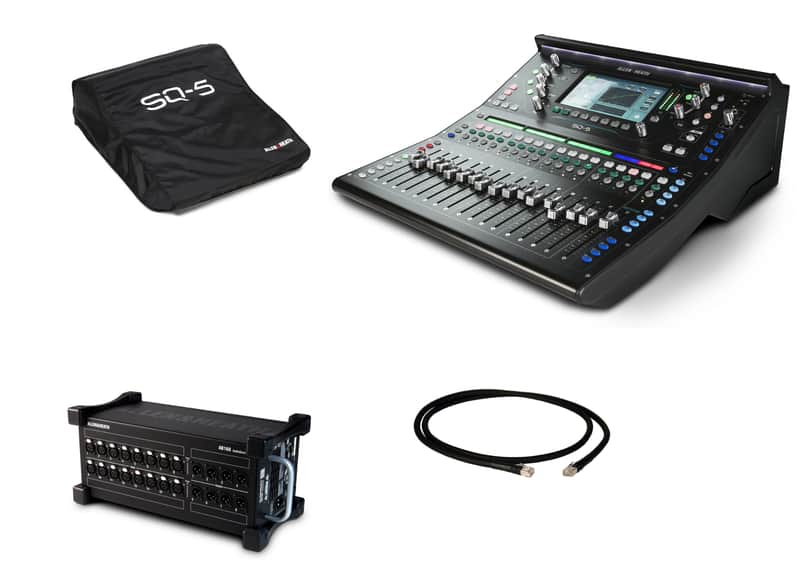

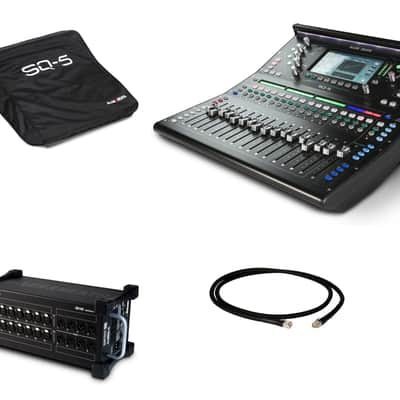

Bundle Includes

• Allen & Heath SQ-5
• Allen & Heath AP11332 Dust Cover
• Allen & Heath AB168
• Elite Core SUPERCAT6-S-EE-50

Bundle Component Features

• Allen & Heath SQ-5:
• • 96 kHz FPGA processing
  • (48) Input Channels
  • DEEP Processing ready
  • (17) Faders / 6 Layers
  • (12) Stereo mixes + LR
  • (3) Stereo Matrix
  • (8) Stereo FX Engines + dedicated returns
  • 7” capacitive touchscreen
• Allen & Heath AB168:
• • 16 Mic Preamps on XLR
  • Phantom Power LED per Input
  • (8) XLR Line Outs
  • dSNAKE Connection with locking Ethercon port
  • Additional locking Ethercon port for daisy chaining /ME personal mixing system
• Elite Core SUPERCAT6-S-EE-50:
• • High-quality tactical professional cable
  • Ultra-durable rubber jacketing provides ultimate cable protection
  • Individually wrapped and coated twisted pairs
  • Well suited for mission-critical applications
• Note: further information can be found within the items located under the "Documentation" tab above.

Bundle Component Specifications

• Allen & Heath SQ-5:
• • Mic/Line Inputs: Balanced XLR, fully recallable
  • Outputs 1-12: Balanced, XLR
  • Outputs A and B: Balanced ¼" TRS Jack
  • AES Digital Output: Balanced XLR 2 channel, 96 kHz sampling rate (Default with SRC Bypassed)
  • Connection: Neutrik EtherCON (RJ45)
  • Inputs: Fully patchable
  • Outputs: Fully patchable
  • Faders: 100mm motorized
  • Polarity: Normal/Invert
  • Trim: -24 dB to +24 dB
  • High Pass Filter: 12 dB/octave 20 Hz to 2 kHz
  • Dimensions (W x D x H): 17.3 x 20.3 x 7.8" (440 x 514.9 x 198mm)
  • Weight: 23.1 lbs. (10.5 kg)
• Allen & Heath AB168:
• • XLR Mic/Line Inputs: Balanced
  • Mic/Line Preamp: Fully recallable
  • Mic/Line Channel noise: 20 Hz to 20 kHz, Direct Out @ unbalanced out
  • Mic/Line Channel THD+N: 20 Hz to 20 kHz, Direct Out @ unbalanced out
  • XLR Outputs: Balanced, Relay protected
  • Operating Temperature: 32 °F to 95 °F (0 °C to 35 °C)
  • Mains Power: 100 - 240 V, 50/60 Hz, 20 W max
