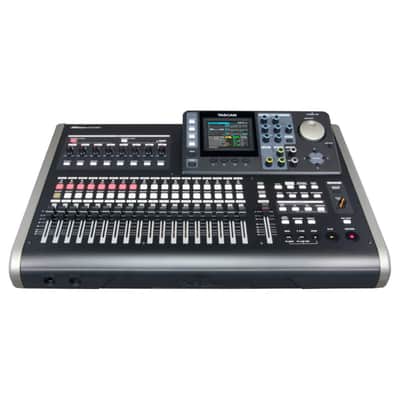

DP-24SD  TASCAM

 24 Track Digital Portastudio


The Tascam DP-24SD Digital Portastudio is a 24-track workstation, allowing eight tracks of simltaneous recording. The built-in mixer includes everything you need for a professional-sounding mix, from EQ and reverb to amp simulation and multi-band mastering effects. The Digital Portastudio series creates finished productions without the need for a computer, instead using a simple-to-use control surface to keep you creative.

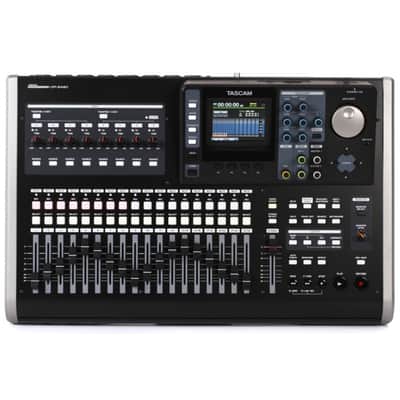

For clear display of your mix, the DP-24SD has a large color LCD displaying tracks, meters, and effects parameters. A set of 12 encoders control EQ, effects sends, and panning. Built-in effects include compression, guitar amp modeling, delay, reverb, with a total of 10 effects processirs available during mixing.

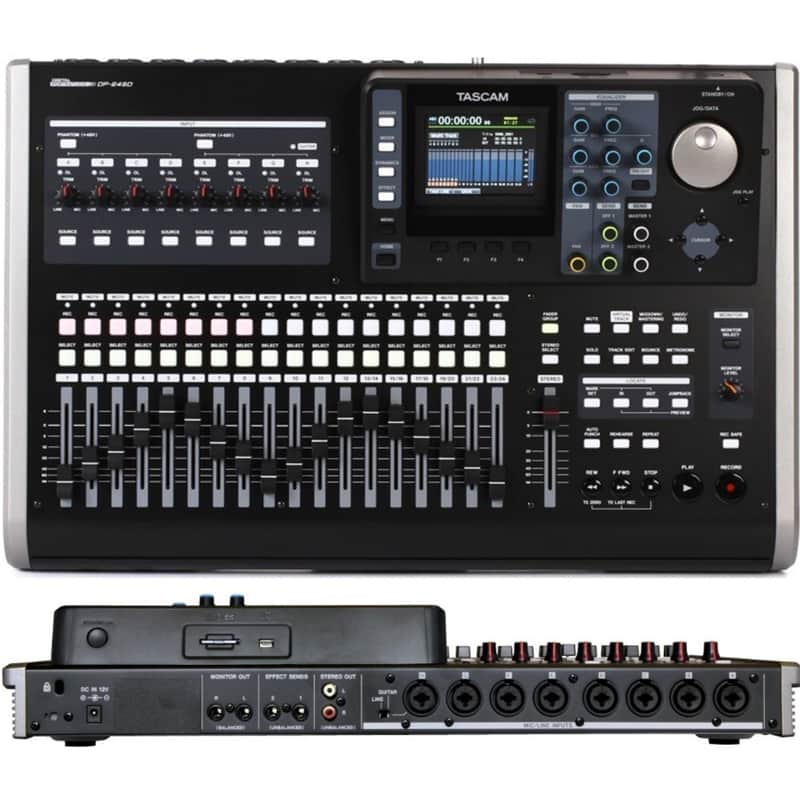

Eight XLR mic/line inputs each provide phantom power for condenser microphones, switchable in banks of four. One input includes an instrument-level impedence switch for direct input recording of guitar or bass. Balanced monitor outputs and effects sends are also provided on the rear panel. A USB output allows tracks and mixes recorded to your SD card to be transferred to a computer for CD burning or sharing online.

Includes:

• Dedicated AC adapter (Tascam GPE248-120200-Z)

• SD card

• USB cable

• Warranty card

• Owner's manual

Features:

• Simultaneous 24-track playback

• 12 mono tracks + 6 stereo tracks

• Simultaneous 8-track recording

• 16- or 24-bit, 44.1 or 48 kHz recording

• 8 XLR/TRS combo connectors

• Phantom power supplied on all inputs (INPUT A-D, E-H)

• High-impedance input available (INPUT H)

• Stereo RCA output

• 2 effect send outputs (1/4" TS jack)

• 70mW/ch headphone amplifier

• Remote connector for optional RC-3F footswitch

• INPUT A-H and each track equipped with 3-band EQ

• Automatic punch in/out

• Various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)

• Undo and Redo function with Undo history

• Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)

• Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)

• Mix-down effects (Reverb, Delay, Stereo Chorus)

• Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize)

• Track bounce function

• Virtual track (8 virtual track per one track: including use track)

• Locate mark up to 99 for one song

• File transferring via USB 2.0

• Chromatic tuner

• Metronome

• 19 Faders

• Peak-hold function on the level meter of the LCD

• Sub-frame editing

• RoHS certified

Specifications:

• Recording Media:  SD (512MB – 2GB) / SDHC card (4GB – 32GB)

• File System:  SD card: FAT16 / SDHC card: FAT32

• Inputs A-H:

• XLR connector:  XLR-3-31 (1:GND, 2:HOT, 3:COLD), Balanced

• Input Impedance:  2.4 kOhms

• Nominal Input Level:  -14dBu

• Maximum Input Level:  +2dBu

• TRS connector:  1/4" (6.3 mm) TRS phone jack, Balanced

• Input Impedance:  22 kOhms or more / 1 MegaOhm (when INPUT H, GUITAR selected)

• Nominal Input Level:  +4dBu

• Maximum Input Level:  +20dBu

• Stereo Out connector:  RCA pin-jack, Unbalanced

• Output Impedance:  200 Ohms

• Nominal Output Level:  -10dBV

• Maximum Output Level:  +6dBV

• Effect Sends connector:  1/4" (6.3 mm) TS phone jack, Unbalanced

• Output Impedance:  200 Ohms

• Nominal Output Level:  -10dBV

• Maximum Output Level:  +6dBV

• Monitor Out connector:  1/4" (6.3 mm) TRS phone jack, Balanced

• Output Impedance:  200 Ohms

• Nominal Output Level:  -2dBu

• Maximum Output Level:  +14dBu

• Phones connector:  1/4" (6.3 mm) stereo phone jack

• Maximum Output Level:  70mW + 70mW (THD+N 0.1% or less, 32 Ohms loaded)

• USB connector:  USB Mini-B type 4-pin

• Format:  USB 2.0 High-Speed mass-storage class

• Remote connector:  2.5mm TRS jack

• Power:  Dedicated AC adapter (Tascam GPE248-120200-Z, included)

• Power Consumption:  12W (when phantom power supplying)

• Dimensions:  20.2" × 4.1" × 13.4" (514 mm × 100.4 mm × 336.9 mm)

• Weight:  13.67 lbs. (6.2 kg)

Audio Performance

• Frequency Response:  20 Hz - 20 kHz (±1dB, INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)

• S/N Ratio:  90dB or greater (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)

• THD:  0.01% or less (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT)

Operating System Requirements

Windows:

• OS:  Windows XP, Windows Vista, Windows 7, Windows 8

• CPU:  Pentium 300MHz or more

• Memory:  128MB or more

• USB:  USB 2.0

Macintosh:

• OS:  Mac OS X Snow Leopard (V10.6), OS X Lion (V10.7), OS X Mountain Lion (V10.8), OS X Mavericks (V10.9)

• CPU:  Power PC, iMAC, G3, G4 266MHz or more

• Memory:  64MB or more

• USB:  USB 2.0

SALE: $699.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
