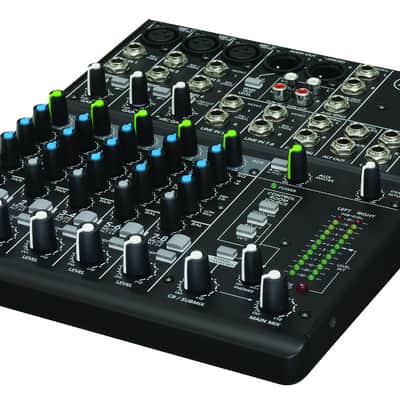

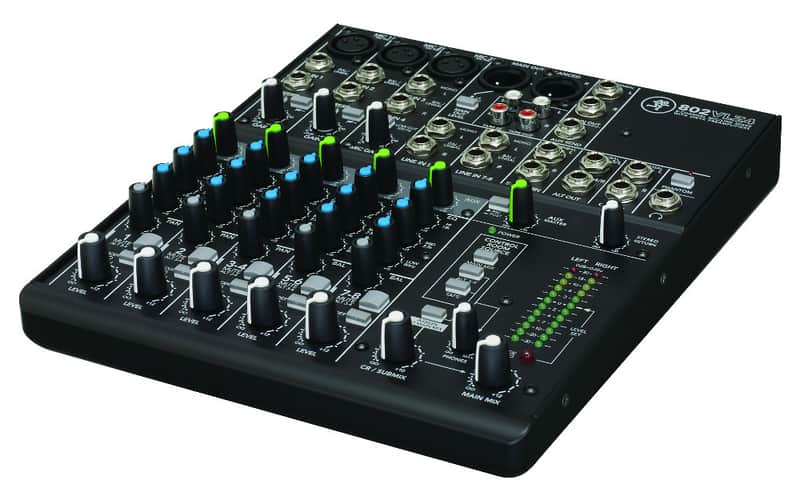

Loaded with 3 Mackie Onyx preamps and 8 high-headroom/low-noise line inputs, the 802VLZ4 delivers clear, crisp audio reproduction in a versatile, reliable, and portable package.

The 802VLZ4 is a great board for budget and home studios. All 8 channels are fitted with a 3-band equalizer (EQ) for enhancing signals or correcting problems. You get one full-featured auxiliary send per channel that can be used for creating a separate headphone mix. There are also two balanced channel inserts so you can connect your favorite compressors, gates or effects units. Another studio friendly feature is the control room source matrix that lets you choose to listen to any of three different sources through the console's control room stereo outputs. Channels 1-3 have phantom power so you can use condenser microphones, while Low-cut filters on those channels help reduce low-frequency noise the more sensitive condensers often pick up.

With a rugged steel chassis built to handle load-ins and load-outs, the 802VLZ4 also shines in a live setting. Sealed rotary controls make sure the unavoidable dirt, dust, and road grime won't affect the console. So whether for the studio, live performance or both, the Mackie 802VLZ4 is a solid choice.

• 3 boutique-quality Onyx mic preamps with ultra-wide 60 dB gain range and phantom power
• 3-band EQ (80 Hz, 2.5 kHz, 12 kHz)
• 18 dB/oct 100 Hz low-cut filter on mic input channels
• Aux send, level, pan and PFL solo on each channel
• Stereo return for connecting FX processor or other stereo source
• ALT 3/4 stereo bus and control room/phones source matrix for added routing flexibility
• High-resolution 12-segment stereo meters
• Rugged steel chassis with powder-coat finish, plus sealed rotary controls resist dust and grime
• Universal power supply for worldwide use

• Main Mix Noise:
  • Main Mix Knob Down, Channel Gain Knobs Down (XLR/TRS): -95/-101 dBu
  • Main Mix Knob @ Unity, Channel Gain Knobs Down (XLR/TRS): -90/96 dBu
  • Main Mix Knob @ Unity, Channel Gain Knobs @ Unity (XLR/TRS): -84/90 dBu
• Total Harmonic Distortion (mic pre @ insert):< 0.001%
• Attenuation/Crosstalk:
  • Main Mix Knob Down: -75 dBu
  • Channel Alt/Mute Switch Engaged: -100 dBu
  • Channel Gain Knob Down: -100 dBu
• Frequency Response (Mic In to Main Out, Gain @ Unity):
  • +0 / -1 dB: 20 Hz to 50 kHz
  • +0 / -3 dB:< 10 Hz to >100 kHz
• Equivalent Input Noise (EIN) (20 Hz - 20 kHz): 150 Ω termination, -128.5 dBu
• Common Mode Rejection Ratio (CMRR): better than -70 dB @ 1 kHz
• Maximum Levels:
  • Mic In: +21 dBu
  • Tape In: +22 dBu
  • All Other Inputs: +22 dBu
  • Main Mix XLR Out: +28 dBu
  • All Other Outputs: +22 dBu
• Impedances:
  • Mic In: 2.55 kΩ
  • Channel Insert Return: 5 kΩ
  • All Other Inputs: 17 kΩ or greater
  • Tape Out: 1.0 kΩ
  • Phones Out: 60 Ω
  • All Other Outputs: 120 Ω
• Equalizer): 3-band
  • High Shelving: ±15 dB @ 12 kHz
  • Mid Peaking: ±15 dB @ 2.5 kHz
  • Low Shelving: ±15 dB @ 80 Hz
• Dimensions (H x W x D): 10.7" x 8.9" x 1.8"
• Weight: 6.8 lbs.
