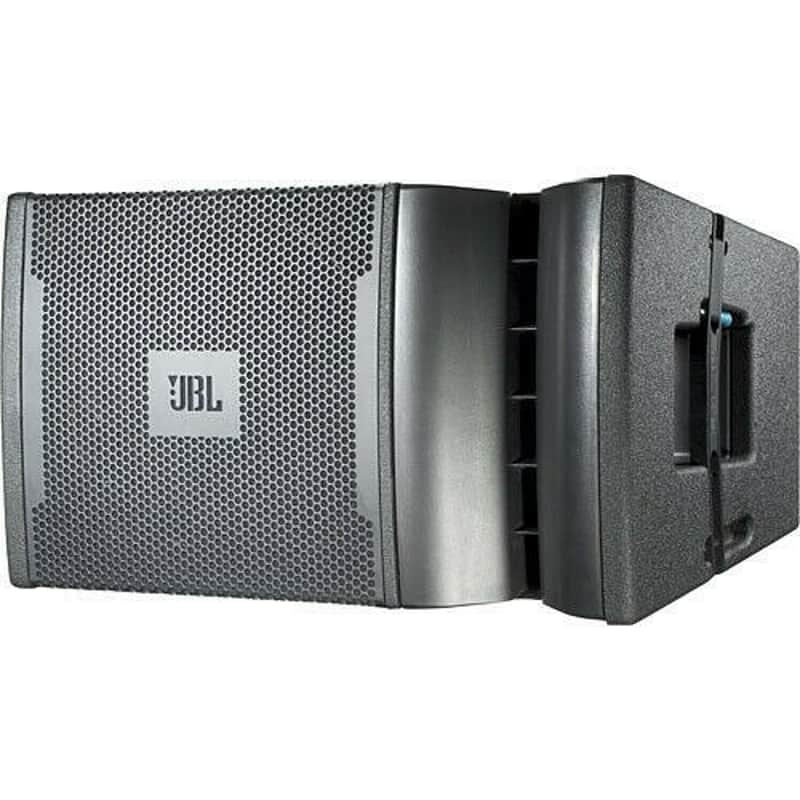

JBL VRX932LAP Active 12" 2-Way Powered Line Array Loudspeaker 1750W Amplified

JBL VRX932LAP 12 in. Two-Way Powered Line Array Loudspeaker System

2 in. Two-Way Powered Line Array Loudspeaker System

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

Features

• Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
• JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
• VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
• Constant Curvature waveguide for unprecedented array coherence.
• Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
• Array Configuration Selector permits "array shading".

Specifications

Power Rating

• 1750 Watts Peak875 Watts Continuous

Frequency Range

• 57 Hz - 20 kHz(-10 dB)

Dimensions(H x W x D)

• 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)

Frequency Response

• 75 Hz - 20 kHz (+/-3db)

Maximum Peak Output

• 136 dB SPL at 1m

Coverage Pattern

• 100 x 15 nominal

DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance)

• LF: 750 Watts, HF: 125 Watts

DPC-2 Output Section

• LF: Dual-Bridged Technology™, Class D

Audio Input Connector

• XLR with loop through

LF Driver

• 1 x JBL 2262FF 305 mm (12 in) neodymium magnet

HF Driver

• 3 x JBL 2408J, 38 mm (1.5 in)

User Controls

• Input Attenuator (0-16 dB)

Signal Processings

• DSP based, resident in Input Module

AC Power Operating Range

• 90-132 VAC or 216-264 VAC, 50/60 Hz

AC Input Connector

• Neutrik PowerCon (NAC 3MPA)

AC Loop Through Connector

• Neutrik PowerCon (NAC 3MPB)

AC Current Requirements

• 6A per system at 120V, 3A per system at 240V

Enclosure

• 25/15 mm, 11-ply birch plywood

Suspension / Mounting

• Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting

Finish

• Black DuraFlex™ finish

Grille

• Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam

Net Weight

• 24 kg (52 lb)

Optional Accessories

• VRX-AF: Suspension array frame
