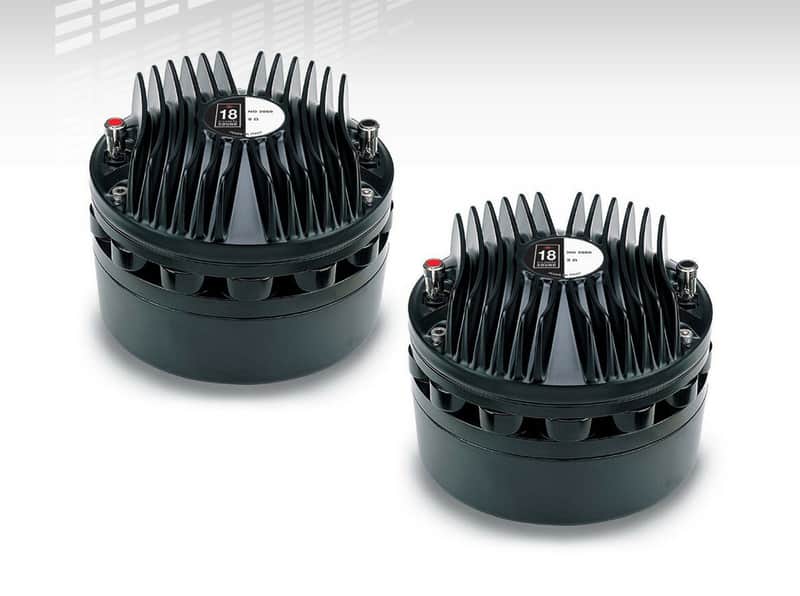

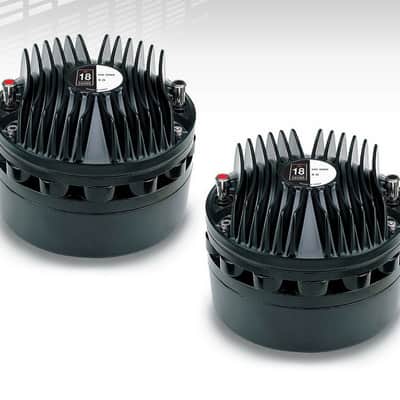

2x 18 Sound ND2060 2" Exit neodymium High Frequency Compression Driver 200W 8Ohm

Authorized Dealer/ Brand New Item / In Stock!

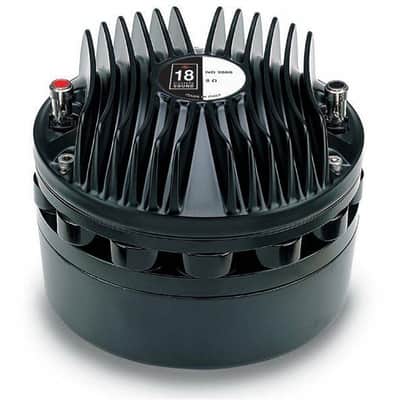

18 Sound ND2060 2" Exit neodymium High Frequency Compression Driver 200 Watts 8-Ohm

Key Features

• 109 dB SPL 1W / 1m average sensitivity
• 2 inch exit throat
• 3 inch aluminum edgewound voice coil
• 200 W program power handling
• Neodymium magnetic structure
• Pure Titanium diaphragm assembly
• Excellent thermal exchange

Description

The ND2060 2-inch exit neodymium high frequency compression driver has been designed for high level sound systems application. Its titanium diaphragm is produced in house and has been developed to assure unmatched transient response.

The diaphragm assembly is made by joining the former directly to the titanium dome on its upper bend edge. In comparison with a usual straight former joint, the driver's design assures extended frequency energy transfer for improved response linearity and unparallel reliability. This feature facilitates proper motion control of the dome in real working conditions.

A proprietary treated Nomex former is used as shows a 30% higher value of tensile elongation at a working operative temperature (200°C) when compared to Kapton. Moreover, this proprietary former material is also suitable for use in higher moisture content environments.

The big innovation in ND2060 consists of its magnetic architecture. By careful use of elementary pieces of neodymium magnets, Eighteen Sound engineers have developed a powerful neodymium magnet assembly able to reach 19KGauss in the gap in compact and lightweight structures.

The motor structure, throughout the precisely coherent phase plug with 3 circumferential slots and copper ring on the pole piece, reduces inductance effects and distortion. Four top plate air ducts have been designed to act as a loading chamber for the diaphragm, implementing mid band distortion and response figures.

The custom designed O-ring creates a tight seal between the plate and the cover assuring air chamber loading. Excellent heat dissipation and thermal exchange are guaranteed by the direct contact between the magnetic structure and the aluminum cover which leads to a lower power compression value.

Due to the increasing use of high power audio systems at outdoor events or in marine environments, the ability of equipment to perform properly under inclement weather conditions is a key feature of Eighteen Sound philosophy.

Hence, a special treatment has been applied to the magnet and the top and back plates of the magnetic structure which make the driver more resistant to the corrosive effects of salts and oxidization. This treatment is more effective than any other treatment in use by other manufacturers.

General Specifications HF
Throat Diameter

50 mm (2 in)

Rated Impedance

8 Ohm

D.C. Resistance

6,2 Ohm

Minimum Impedance

8 Ohm at 3500 Hz

Le (1kHz)

124 µH

AES Power

100 W above 1,2 kHz

Program power (8)

200 W above 1,2 kHz

Sensitivity (9)

109 dB

Frequency Range

500 Hz - 20 kHz

Recomm. Xover Frequency

800Hz (12 dB/oct slope)

Diaphragm material

Titanium

Voice Coil Diameter

75 mm (3 in)

Voice Coil winding material

Edge-wound aluminum

Magnet material

Neodymium

Flux Density

1,9 T

Bl Factor

13,5 N/A

Polarity

Positive voltage on red terminal gives positive pressure in the throat

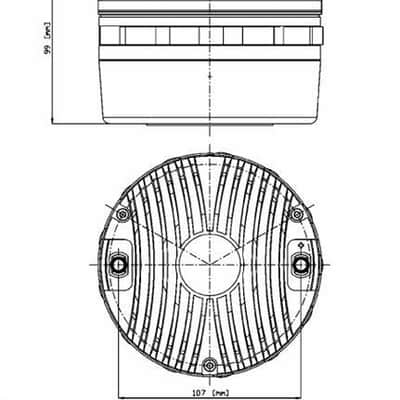

Mounting information

Overall diameter

132,5 mm (5,22 in)

N. of mounting holes and bolt

4 M6 holes 90° at Ø102 mm (4 in)

Bolt circle diameter

102mm (4 in)

Total depth

99 mm (3,9 in)

Net weight

3,2 kg (7,05 lb)

Shipping weight

3,3 kg (7,27 lb)

Packaging Dimensions

132x132x103 mm(5,2x5,2x4,1 in)
