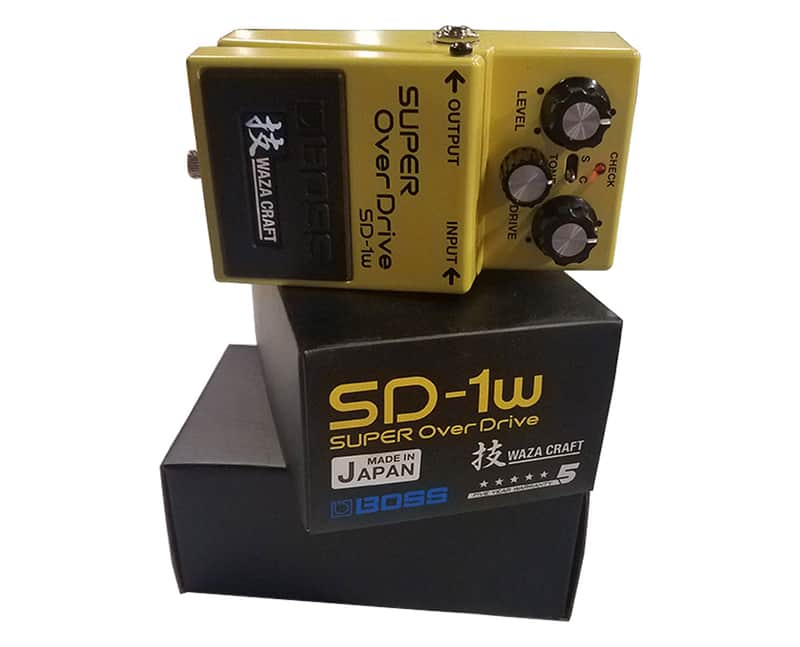

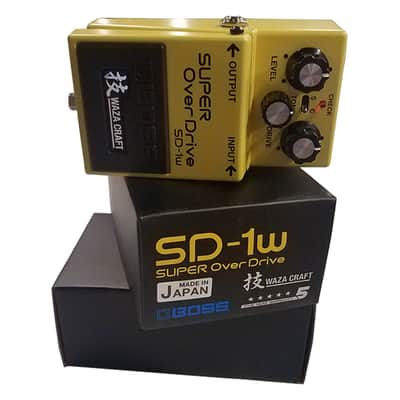

The Sweet Overdrive Tone Has A Prime Redesign

Passionately designed by the master engineers at BOSS in Japan, the Waza Craft SD-1W Super Overdrive delivers a premium stomp experience that fans of customized pedal tone will love. Crafted with an ear for highly refined sound, the SD-1W hot rods the famous BOSS overdrive with all-discrete analog circuitry. Standard mode captures the classic SD-1 sound while Custom mode offers new tonal range and gain.

• Special edition Waza Craft pedal delivers the ultimate BOSS tone experience
• Premium sound based on the legendary SD-1 Super Overdrive
• Newly revised, all-analog discrete amplifier circuit
• Standard and Custom sound modes
• Highly responsive to picking dynamics and volume changes

WAZA CRAFT : The Art of Superior Tone

Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones  using any technology necessary, from old-school analog circuits to high-tech DSP. Continuing this  enthusiastic spirit, we are pleased to introduce the new Waza Craft series. In Japan, “Waza” is the term for  art and technique, and these special edition pedals proudly carry the Waza symbol to represent the  pinnacle of BOSS design and craftsmanship. With final sound approval carried out by BOSS in Japan, the  Waza Craft series brings you exceptional tone and touch response through carefully-selected analog components, refined circuitry, and meticulous attention to detail.

Features

• Nominal Input Level : -20 dBu
• Input Impedance : 1 M ohm
• Nominal Output Level : -20 dBu
• Output Impedance : 1 k ohm
• Recommended Load Impedance : 10 k ohms or greater
• Bypass : Buffered bypass

Controls :

• Pedal switch
• Level knob
• Mode knob
• Tone knob
• Drive knob

Indicator : CHECK indicator (Used for indication of check battery)

Connectors :

• Input jack
• Output jack
• AC adaptor jack (DC 9 V)

Power Supply :

• Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
• AC adaptor

Expected battery life under continuous use :

• Carbon: Approx. 25 hours
• Alkaline: Approx. 42 hours

Accessories :

• Owner's manual
• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Carbon-zinc battery (9 V, 6F22)

Options : AC adaptor (PSA series)

Size

• Width : 73 mm 2-7/8 inches
• Depth : 129 mm 5-1/8 inches
• Height : 59 mm 2-3/8 inches
