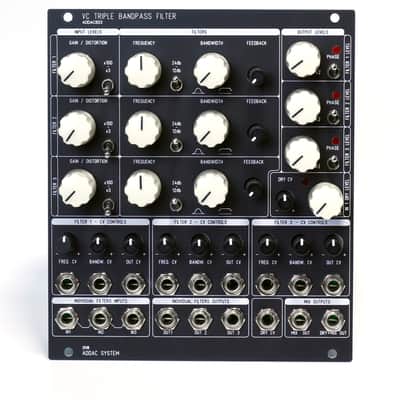

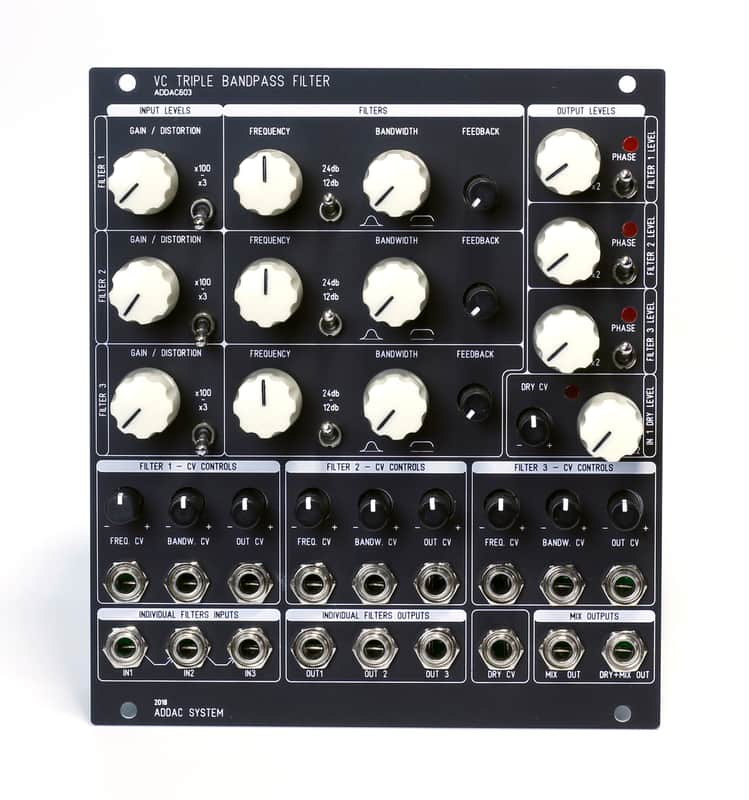

ADDAC System 603 VC Triple Bandpass Filter

At ADDAC we’ve been in love with Bandpass Filters for a long time! We use them in several different ways but mostly as dynamic equalizers at the end of an audio chain for ever-changing timbral qualities with slow modulations on frequency and volume. Slightly or drastically changing the character of the incoming sound just by controlling a few parameters and adjusting the modulation speed. And while this method is a personal preference of ours while developing such module we soon realized that some features would give it other aural qualities and so we started by adding a dedicated feedback control so that each filter could self-oscillate while making this control independent from the Bandwidth control. Also added an amplifier x3 or x100 at each of the inputs in order to create soft or hard distortions turning it into a controllable 3 band distortion!

Features: 3 independent Bandpass filters each with: Input gain up to x3 or x100 via a switch VC Frequency with attenuverter VC Bandwidth with attenuverter 6 or 12db (1 or 2 poles) Switch Resonance Individual output VC Amplifier with attenuverter Phase output switch
3 bands summing mix plus Dry control with attenuverter
Inputs are Normalled: 1->2->3 allowing for the three bandpass filters to be used either for the same input source or from three independent sources.
Filters and VCA’s developed with the modern version of SSM2164 from CoolAudio for pristine sound quality.

Tech Specs: 22HP 3.5 cm deep 250mA +12V 250mA -12V

LEAD TIME - IMPORTANT NOTE:
Although this is also described in our Shop Policy page, it is worth stressing that, by virtue of being a small team and not outsourcing a great part of our production, long story short, we sort of make your order on demand.
After you place an order, it takes up to 15 business-days to be ready to ship.
This is why you'll see this module as 'in stock', but this in fact means that we do have all its parts and can produce your module. Thanks for understanding, and for choosing us!
