Description

Introducing the HATS808, part of Tiptop's new series of drum modules that brings analog percussion into the modular synth world, instantly turning your system into a self-contained music machine.The HATS808 is the TR-808's real, analog closed and open hi-hat circuits adapted for use in Eurorack modular synthesizer format and tested to sound just like it did back in the 80's. Adapting to the modular format has allowed us to add some special features to each voice like independent accent levels, a high-powered fain stage, and a dull-input pulse-shaper. Filter Q and CV-Q knobs were added to the main band-pass filter for additional tuning and to allow you to generate crushed tones and self-oscillation at the knob's max position - all without compromising the signature sound of the TR-808 hi-hats.The HATS808 sizzling sound is made using six analog square wave oscillators mixed and processed by band-pass filters. The multi-oscillator design is what gives the 808 hi-hat sounds their unique metallic character and makes each HATS808 sound slightly different from one another. The original "choke" circuitry that makes it sound so dynamic and tight is fully implemented, just like the original, but can also be disabled if needed by disconnecting the internal connection between the two hats.

Product Features

• Size: 8HP
• Depth: 14mm
• Power: +12V 30ma / -12V 25ma

Attributes

• Type (X): Hi-Hat Generator
• Color (X): Silver

Included Items

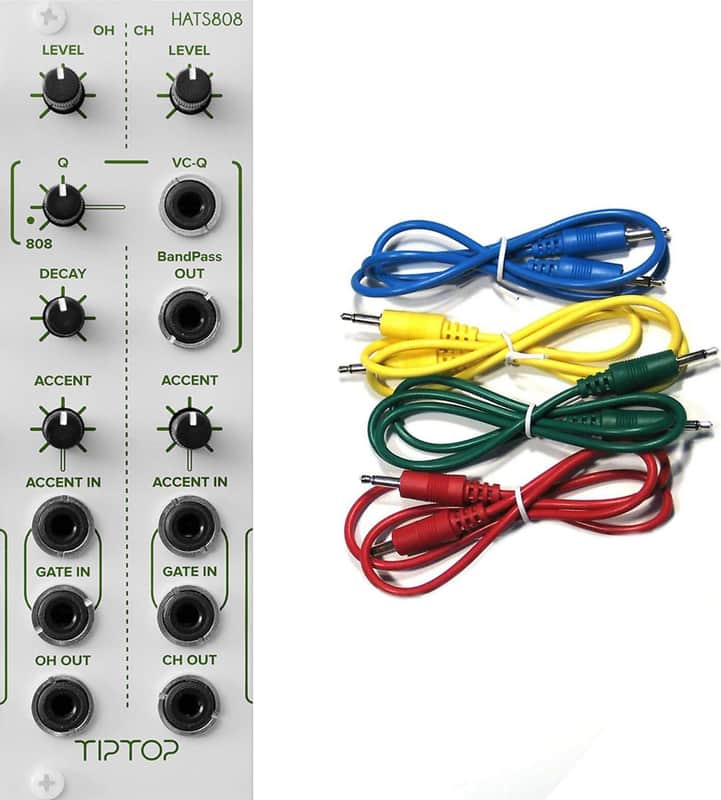

[1x] Tiptop Audio HATS808 Hi-Hats Generator Eurorack Synth Module, White

Introducing the HATS808, a drum module that brings the classic TR-808 closed and open hi-hat sounds to the Eurorack modular synth format. This module includes features like independent accent levels, a high-powered gain stage, dual input pulse-shaper, and adjustable Filter Q and VC-Q knobs for additional tuning. The HATS808 uses six analog square wave oscillators to create its signature sizzling sound, maintaining the unique metallic character of the original. The original “choke” circuitry is fully implemented but can be disabled if needed. The high-powered gain stage allows for further sound harmonization through distortion and clipping. The dual pulse-shaper circuit ensures consistent sound quality from any pulse source, making the HATS808 an easy and powerful addition to any modular synth setup.

Attributes

• Color: White

Technical Specifications

• Type: Synth Module
• Inputs: 2 x 1/8" (accent), 2 x 1/8" (gate)
• Outputs: 1 x 1/8" (open hat), 1 x 1/8" (closed hat), 1 x 1/8" (bandpass)
• Processing Type: Analog
• Power Supply: Requires Eurorack Case and Power Supply
• Oscillator: 6 x Square Wave Oscillators
• HP Size: 8HP

[1x] Ad Infinitum 3.5mm TS Mono Patch Cable, 12", Blue

Ad Infinitum's Fully-Molded Patch Cables are constructed of 26AWG Stranded Copper Wire with a Low-Loss 95% Spiral-Wound Copper Shield in a 2.8mm PVC Jacket. The Copper is 99.99% Pure and Oxygen-Free. The Connectors are Nickel-Plated, providing High Corrosion Resistance.

Attributes

• Color: Blue

Technical Specifications

• Type: Patch
• Unit Count: Single
• From Connector: 3.5mm
• To Connector: 3.5mm
• Connector Angle: Straight to Straight
• Cable Length: 12"

[1x] Ad Infinitum 3.5mm TS Mono Patch Cable, 12", Green

Ad Infinitum's Fully-Molded Patch Cables are constructed of 26AWG Stranded Copper Wire with a Low-Loss 95% Spiral-Wound Copper Shield in a 2.8mm PVC Jacket. The Copper is 99.99% Pure and Oxygen-Free. The Connectors are Nickel-Plated, providing High Corrosion Resistance.

Attributes

• Color: Green

Technical Specifications

• Type: Patch
• Unit Count: Single
• From Connector: 3.5mm
• To Connector: 3.5mm
• Connector Angle: Straight to Straight
• Cable Length: 12"

[1x] Ad Infinitum 3.5mm TS Mono Patch Cable, 12", Yellow

Ad Infinitum's Fully-Molded Patch Cables are constructed of 26AWG Stranded Copper Wire with a Low-Loss 95% Spiral-Wound Copper Shield in a 2.8mm PVC Jacket. The Copper is 99.99% Pure and Oxygen-Free. The Connectors are Nickel-Plated, providing High Corrosion Resistance.

Attributes

• Color: Yellow

Technical Specifications

• Type: Patch
• Unit Count: Single
• From Connector: 3.5mm
• To Connector: 3.5mm
• Connector Angle: Straight to Straight
• Cable Length: 12"

[1x] Ad Infinitum 3.5mm TS Mono Patch Cable, 12", Red

Ad Infinitum's Fully-Molded Patch Cables are constructed of 26AWG Stranded Copper Wire with a Low-Loss 95% Spiral-Wound Copper Shield in a 2.8mm PVC Jacket. The Copper is 99.99% Pure and Oxygen-Free. The Connectors are Nickel-Plated, providing High Corrosion Resistance.

Attributes

• Color: Red

Technical Specifications

• Type: Patch
• Unit Count: Single
• From Connector: 3.5mm
• To Connector: 3.5mm
• Connector Angle: Straight to Straight
• Cable Length: 12"
