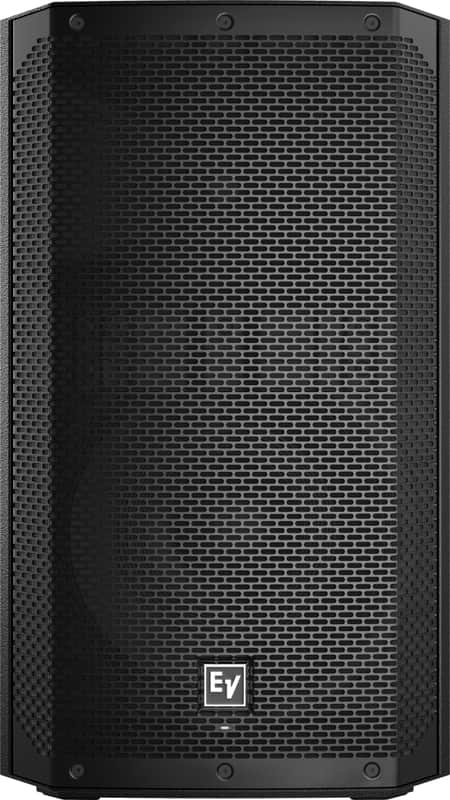

EV's ELX200-12 is a 12" 2-way passive loudspeaker that features rugged portability and legendary EV sound quality at an exceptional price point. The ELX200-12 is engineered to handle the night in/night out demands of real-world use and deliver consistantly superior results each time.

The ELX200-12 is outfitted with a 1/4" titanium compression driver that produces a smooth, naturally transparent high frequency response. A 12" woofer adds tight powerful low end allowing the speaker to deliver up to 128 dB SPL (Sound Pressure Level) of full-range audio while handling up to 1200 watts.

• 1200 W Peak
• 1.4" Titanium compressor driver
• High-output EVS-12M woofer
• EV-Patented Signal Synchronized Transducers (SST)
• Professional-grade hardware

• Technical specifications
• Frequency response (-3 dB): 77 Hz - 17 kHz1
• Frequency range (-10 dB): 51 Hz - 20 kHz1
• Axial sensitivity: 93 dB1
• Maximum SPL: 128 dB1,2
• Rec. high-pass frequency: 50 Hz
• Coverage (H x V): 90˚ x 60˚
• Power handling: 300 W Continuous, 1200 W Peak
• LF transducer: EVS-12M 300 (12 in)
• HF transducer: DH-1C 1-inch titanium
• compression driver
• Crossover frequency: 1.7 kHz
• Nominal impedance: 8 Ω
• Minimum impedance: 7.5 Ω
• Connectors: Dual NL4
• Enclosure: Polypropylene
• Grille: 18 AWG steel with powdercoat
• Suspension: (3) M10 suspension points
• Color: Black
• Dimensions (H x W x D): 629 mm x 363 mm x 344 mm
• (24.8 in x 14.3 in x 13.6 in)
• Net weight: 15.2 kg (33.4 lb)
