Super CAT5E 250 ft RJ45 Tactical Shielded Ethernet Reel Snake Cable- CS45

This Listing Is For A Brand New Elite Core Converta-Shell Shielded Ethernet RJ45 CAT5E Cable Reel Snake 250' ft -CS45

Elite Core SUPERCAT5E-250-REEL Converta-Shell Rugged Shielded CAT5E Cable, 250' on Metal Reel. Elite Core SUPERCAT cables feature the patent-pending CS-45 connector. The CS-45 allows for EtherCon® style connections or RJ45 in a protective shell. Simply twist off the barrel of the CS-45 to reveal a fully protected RJ45 with push-button release in place. It's tour-grade and tough. Fully shielded with the drain wire solder to the RJ45 on both ends.

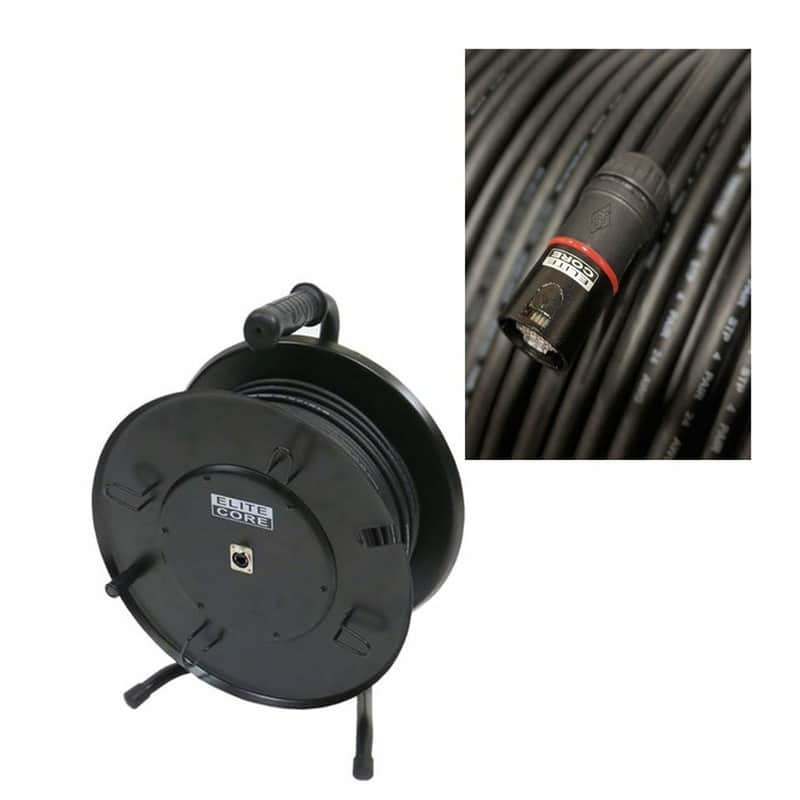

The Reel Snake has a Female RJ45 located on the metal reel and one RJ45 Male on the cable snake end

• Fast, twist-off conversion from RJ45 to tactical ethernet locking XLR style jack
• Fully finished RJ45 connection with release button
• No need to dismantle cable to revert to RJ45
• Flexible design provides for flat lay and smooth roll-up
• Patented design assures twist pitch stability
• Effective spacing of cable pairs controls crosstalk
• Rugged build protects cable from damage caused by external force or roll-overs
• Perfect for mobile audio, DMX, video, and LED screens

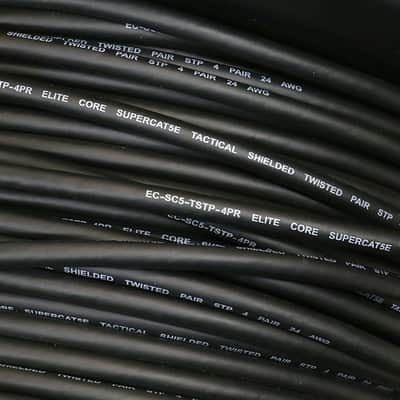

Type:  SUPERCAT5E STP Tactical Shielded

Stranded Twisted Pair Jacket Color: Black

Outside Diameter: 7.5mm

Conductor Count: 4 Pair

Construction Details: (7/0.2+PE0.99)*(2C+MYLAR+PE2.65)*4 PAIR+ DW 7/0.22TC+AL FOIL+PVC

Main Conductor Gauge: 24 AWG

Conductor D.C.R. ohm/1Km: <89.3

Nominal Capacitance ~ Conductors: <68.9 pF/m

Nominal Capacitance ~ Pairs: <57.3 pF/m

Impedance: 100 ohm

Flex Life: >8730 (Load of 500G ±30°)

Tensile Strength: >109kgf

Optimal Working Temperature: -4°F - 140°F

Max Working Temperature:  -40°F - 158°F
