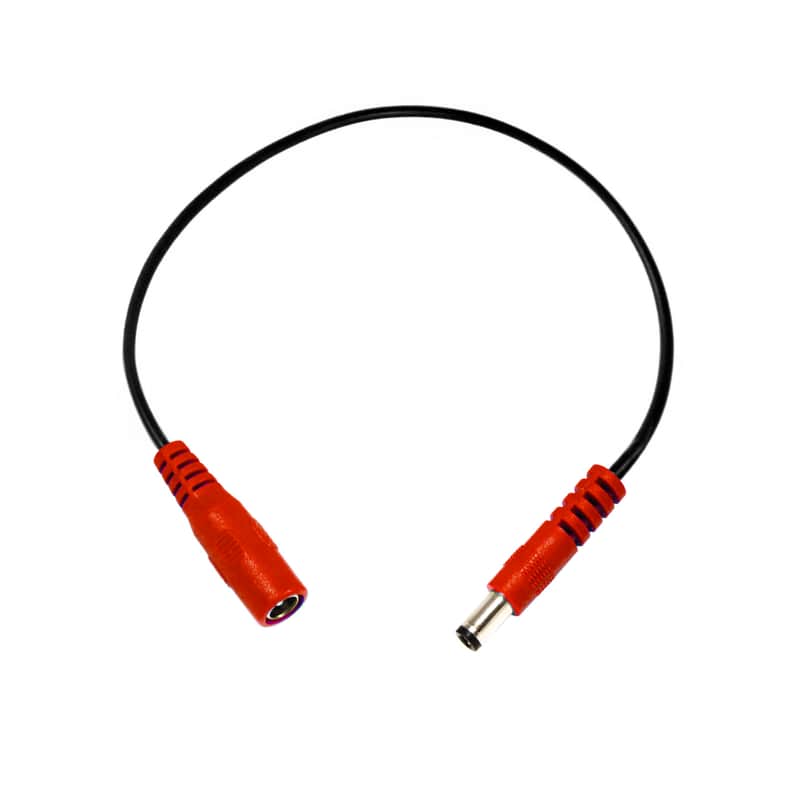

Power-all CABLE - RED REVERSE POLARITY JUMPER

The Cable-Red Adaptor features a Male Barrel Plug with a reverse polarity connection. It can be used to connect a pedal with tip positive polarity to a power supply with a tip-negative output polarity.

The C-R offers the following features:

• 1 x Female Barrel jack to connect to Power-All or other power source ( & Cable may be required to connect C-R to brick-style power supplies)
• 1 x straight Male Barrel plug with reverse polarity to connect to pedals or other cables.
• Spring-loaded male plugs to reduce chance of disconnection
• 26-gauge Cable with oil-resistant vinyl sheath
• 10.5” (approx. 264 mm) Cable length between plugs
• NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient

SPECIFICATIONS:

• Female Barrel Jack (1): 5.5 mm O.D.; 2.1 mm I.D.
• Male Barrel Plug (1): 5.5 mm O.D.; 2.1 mm I.D.; 10 mm barrel length
• Cable: 26-gauge, OFC with oil-resistant vinyl sheath
• 10.5” (approx. 264 mm) Cable length between plugs

TIPS:

• Output polarity of C-R’s Male Barrel Plug will be the opposite polarity of source connected to Female Barrel Jack (i.e. if source is tip-negative, then C-R output polarity will be tip-positive)
• Connect  Cable to C-R’s Female Barrel Jack to connect to brick-style power supplies or other sources with Female Power Output Jacks
• Connect  to female end of the C-R to reverse the output polarity of the Male Barrel plug
• Connect Daisy-Chain, Y-Splitter or Adaptor Cables to C-R’s male Barrel Plug to power additional pedals* (note all pedals should have reverse polarity)
• Use  to cover unused Male Barrel Plug & prevent short-circuits

NOTE:

Some pedals that require tip-positive polarity at their power input are actually wired with a positive ground to chassis. Some examples of this are the Fuzz Face & Tonebender and many boutique pedals based on these designs.

Pedals with this ground configuration cannot be powered from a series power source (i.e. a Daisy Chain) along with pedals that have a negative ground to chassis.

In this case, the  could be used on the positive-ground pedal to allow it to be powered along with negative-ground to chassis pedals off the same Daisy Chain.

Please contact us at  for more information on this issue.

*Sum of current draws of pedals used should not exceed maximum output current of Power Supply.
