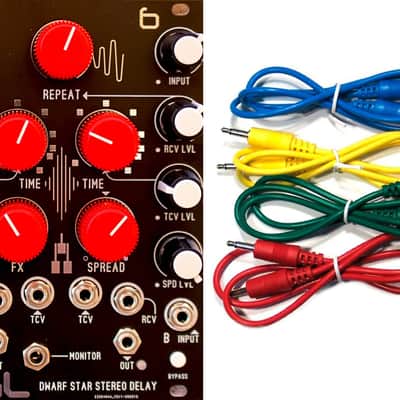

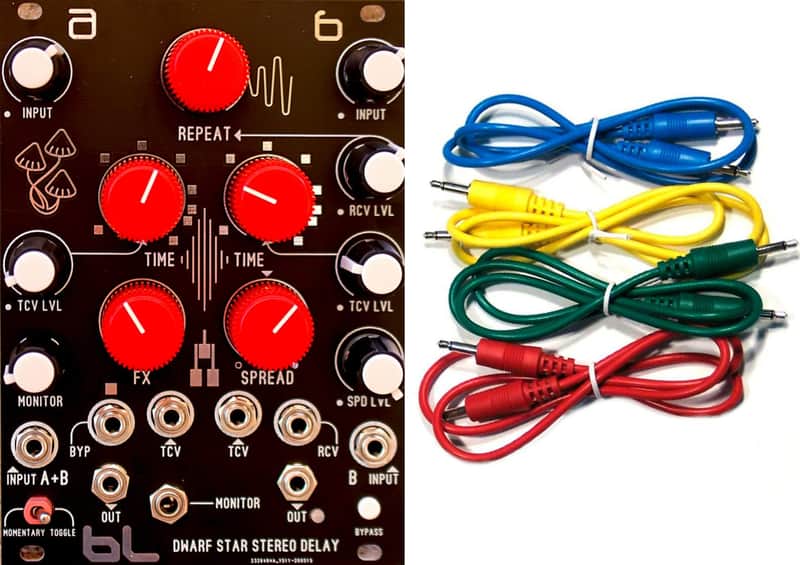

Blue Lantern Dwarf Star Stereo Delay Module Eurorack Module MK2 w/ 4 Cables

Description

This module has two echo delay effect circuits based on the Dwarf Star Semi Modular system. With this module you can add cool delay fx to synth level signals. Each of the parameters has CV control with their own attenuators. There are three parameters per channel. The two echo fx circuits are mirrored on the front panel: Channel A and Channel B.The fx processing was fine tuned for clean fx processing. When the feedback is fully clockwise it will not go into trashy garbage. You can however patch a cv input into the 'REPEAT' parameter, have the RCV attenuator fully clockwise, and force it to feedback into loud trash. There is no switch jack on the input jacks. However, all the CV jacks have switch jack internal connections. This allows you to modulated both channels using only the the Channel A side. For true independent patching on each separate channel simple patch something into the corresponding Channel B jack.The Kill toggle switches kill the dry signal input going into the pt2399 fx chip. It will however allow echo trails to keep going until they die out. So this is not just a mute switch to abruptly cut the echo trails in half. I feel this is better for live manipulation and recording.

Product Features

• Width: 18hp
• Current: 10mA, -6mA
• Depth: 1.5 inches
• Signal Levels for In/Outs: modular synth levels -5/+5

Attributes

• Type (X): Delay
• Color (X): Black

Included Items

[1x] Blue Lantern Dwarf Star MK2 Stereo Delay Module Eurorack Synth Module

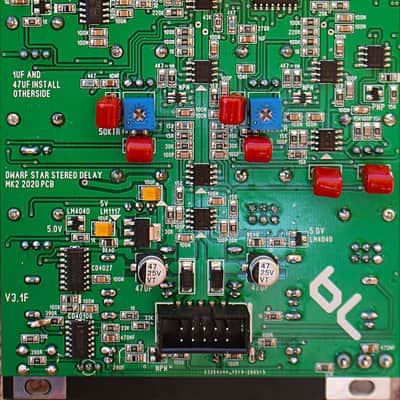

This product uses two PT2399 Echo FX IC's to generate stereo echo processing. This particular FX chip is known to have a degraded 'flavor' in sound, when the timing is set to longer values. This new version will also allow you to dial in self oscillating feedback using the top 'Repeat' knob and 'FX' level knob. There is also a headphone monitor jack with level control knob. The new Spread Parameter applies voltage to both delay circuits. But one voltage is inverted. This allows you to mess with both timings at the same time. There is also a level knob just for the spread parameter. Spread Knob is set too 12 o clock for 'off' position or zero volts. There is a new push button 'FX' parameter. You can use this feature in two modes: Momentary or Toggle. This parameter mutes the signal going into the Pt2399's input. So the delay trails do not get muted. This is good for live use.
