Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.

Full control over your performance – your direct link, everywhere, everyday. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you.

Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.

Features

• Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
• Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
• Half-rack stereo transmitter in a full-metal housing with OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Compatible with Sennheiser WSM control software for flexible frequency allocation
• Up to 16 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 50 mW) depending on country regulations

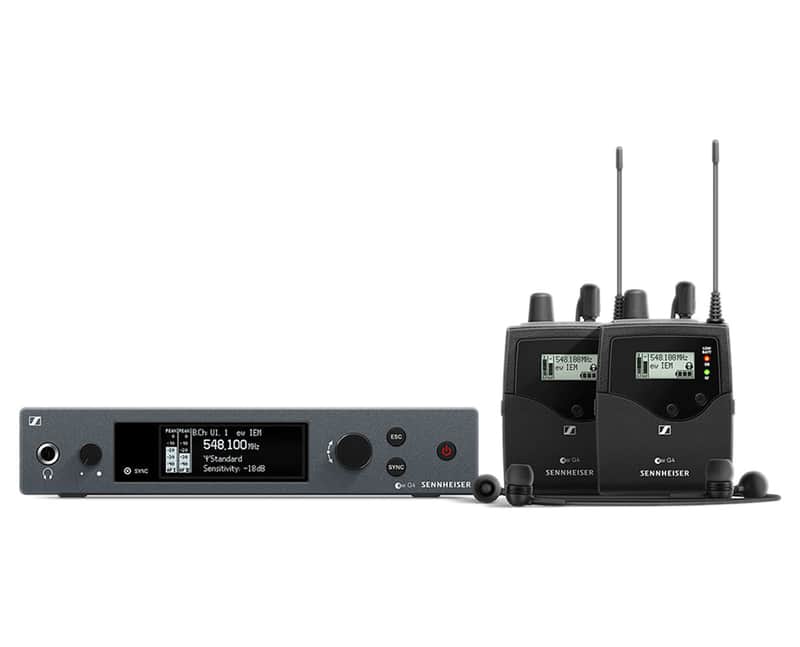

What's In The Box

• SR IEM G4 stereo transmitter
• 2 EK IEM G4 stereo receiver
• 2 IE 4 earphones
• 4 AA batteries
• rod antenna
• GA 3 rackmount set
• quick guide
• safety guide
• manufacturer declaration sheet
• power supply
• Technical Data

SR IEM G4

• Frequency range : A1 : 470 - 516 MHz
• Dimensions : Approx. 202 x 212 x 43 mm
• Compander : Sennheiser HDX
• THD, total harmonic distortion : <0.9 %
• Weight : Approx. 980 g
• Audio input : 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
• Audio output : ¼" (6.3 mm) stereo jack socket, balanced
• Signal-to-noise ratio : >90 dB
• RF output power : switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth : up to 42 MHz
• Peak deviation : ±48 kHz
• Nominal deviation : ±24 kHz
• Modulation : Wideband FM stereo (MPX pilot tone)
• Power supply : 12 V DC
• Current consumption : max. 350 mA
• Max. Input voltage : +22 dBu
• Transmission frequency : Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
• AF frequency response : 25 Hz to 15 kHz
• Temperature Range : -10 °C to +55 °C
• Frequency stability : ±10 ppm
• Antenna Output : BNC socket, 50 O

EK IEM G4

•
• Dimensions : Approx. 82 x 64 x 24 mm
• Compander : Sennheiser HDX
• THD, total harmonic distortion : = 0.9 %
• Signal-to-noise ratio : approx. 90 dBA
• Switching bandwidth : up to 42 MHz
• Peak deviation : ±48 kHz
• Nominal deviation : ±24 kHz
• Operating time : approx. 4 to 6 hours (depending on volume level)
• Modulation : Wideband FM
• Power supply : 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption : at nominal voltage: approx. 140 mA
• Adjacent channel rejection : Typically = 65 dB
• Audio-Output-Power : 2 x 100 mW at 32 ?
• Intermodulation attenuation : Typically = 70 dB
• Limiter : –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
• Powering : 3 V battery / 2.4 V rechargeable battery
• Receiving frequency : Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
• RF sensitivity : < 4 µV, typ. 1.6 µV for 52 dBA rms S/N
• Squelch : 5 to 25 dBµV, adjustable in steps of 2 dB
• Bass Boost : +8 dB at 80 kHz
• Temperature Range : -10 °C to +55 °C
• Receiver Principle : Adaptive diversity
• Blocking : = 80 dB
