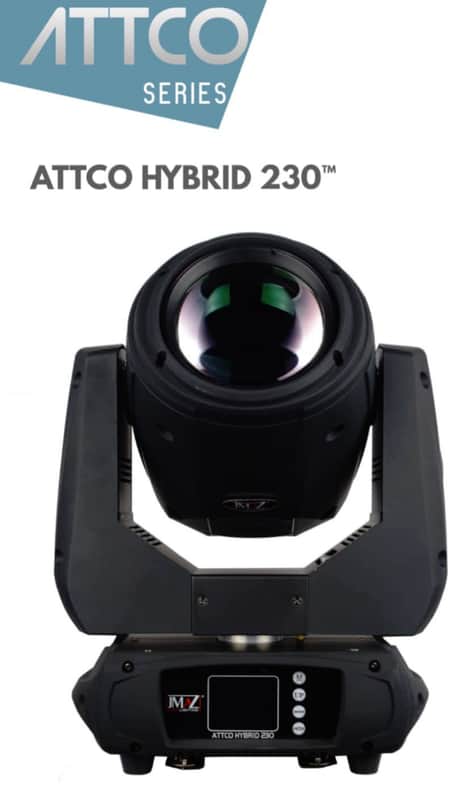

JMAZ Lighting Attco Hybrid 230

ATTCO HYBRID 230

The JMAZ ATTCO HYBRID 230 Features with Super Prisms (16 facet+24 facet prism)and a powerful, ultra bright OSRAM 7R lamp, 3 phase motors , Solid Beam angle: 2.5° ,Anti-reflection 136mm front lenses. JMAZ ATTCO HYBRID 230 is integrated with a full complement of professional characteristics including a static gobo wheel (16 gobos) ,a color wheel (11 colors), Frost filter, Motorized focus from near to far (2.5M-30M), variable speed shutter/strobe, 0-100% linear dimmer.

SPECIFICATIONS Effects

• 11 colors & white with bicolor option
• 16 static gobos & open, with beam reducers included
• Frost filter
• 16 Facet prism with variable speed and direction
• 24 Facet prism with variable speed and direction
• Prisms can be both inserted on the beam and their rotation speed and direction is independently controlled.
• Electronic focus with range from 2,5 to 30 meters.
• Fast Pan & Tilt movements
• Double blade shutter for dimming, strobe and pulse effects

Control

• DMX control with 14 or 16 DMX channels
• Auto, Music modes
• Manual control via the fixture’s LCD screen
• Feedback for Pan/Tilt movement correction
• 2.4′ TFT LCD display (320*240pix)
• electronic ballast and power supply
• Power supply: 90/260 Volt AC, 50/60 Hz.
• Dimensions: 203 x 370 x 375 mm (D x W x H)
• Packing Dimensions: 490 x 370 x 375 mm (D x W x H)
• Net Weight 13,2 Kg, Gross Weight: 15,92 Kg.

Features

• ABS die-cast plastic cover with Aluminium structure
• Motorized focus from near to far (2.5M-30M)
• 16-facet prism with variable speed and direction
• 16-facet prism+8-facet prism with variable speed and direction
• Combined prism effect by 16-facet prism and 16-facet +8-facet prism with variable speed and direction
• Frost filter available (Hybrid effect for wash)
• Variable direction rainbow effect with speed adjustable
• Dual flag mechanical dimming system
• 20T/sec high speed shutter/strobe effect with variable speed
• Preset variable/random strobe and dimming pulse effect
• 2.4′ TFT LCD display (320*240pix)
• Display reversible for up side down application
• Vector mode with blackout MIB function
• Electronic ballast and power supply
• Power con IN/OUT
• 3-Pin XLR connectors IN/OUT
• Lamp using time readable on the display
• 55dB at 3’dB rating
• 2*1/4 turn fastening Omega clamps
• 1*Safety attachment point available
