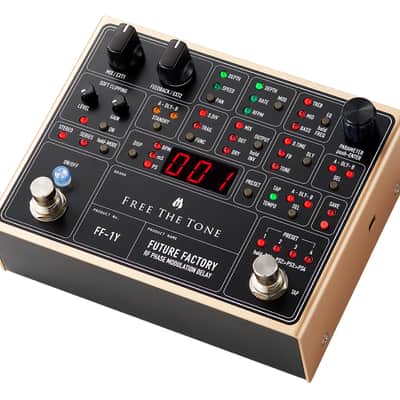

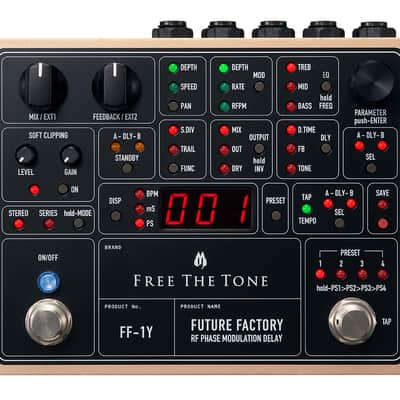

Presenting the Free The Tone FF-1Y Future Factory RF Phase Modulation Delay Pedal.

“Creation of a new sound” ― this was the motto for the development of the new Free the Tone “FUTURE FACTORY” FF-1Y Delay Pedal.

Many digital delay units that implement a modulation function have been introduced to date. In general, the phase of a low frequency oscillator (LFO) used in these modulation circuits changes regularly at a preset cycle. However in Free the Tone's “FUTURE FACTORY,” they succeeded in creating a new modulation sound with a unique method in which signal’s phase changes at random when the signal crosses a certain attenuation level. This creates an unprecedented effect in which a fluctuating spacious sound seems to float in the air. (This function works best when used in Stereo mode.)

The FF-1Y has a dedicated 3-band equalizer for delay sound. Tonal adjustments of delay sound are indispensable for handling various musical phrases. This 3-band EQ can select a frequency to match the instrument to be used. This is a useful feature for guitarists and bassists, as well as saxophonists, violinists, DJ’s, or keyboardists.

For the users who will mainly use this unit in Monaural mode, we added a soft clipping circuit to one channel of the delay. By distorting the delay sound and adding it to the dry sound you can create an unprecedented, musical sound. The delay sound’s bandwidth is narrowed but harmonic overtones are added. This enables the creation of a sound similar to that made by vintage devices.

The “FUTURE FACTORY” incorporates two delay modules that can be used as a stereo delay or easily used in Monaural mode by connecting them in series.

This unparalleled delay effect unit “FUTURE FACTORY” FF-1Y is the fruit of FREE THE TONE’s continuous pursuit of sound quality and new functionality, and the culmination of our latest creative endeavors. This delay unit will surely stimulate your imagination and inspire you to create new and original sounds.

FEATURES: World-first Random Fluctuating Phase Modulation Function (As of November 2018, based on FREE THE TONE’s investigation) 3-Band Equalizer Soft Clipping Dual Delay Units 32-bit High-Precision DSP Dual Delay Units connectable in parallel or series Built-in HTS Circuit and Analog Mixer Instrument and Line Input Level Switching Delay Phase Invert Trail Function Tap Input Preset Switching (1–4) MIDI Support SPECIFICATIONS: Number of presets: 128 Input impedance: min. 500 kΩ Output load impedance: min. 1 kΩ Max. input level: INST +3.5dBm / LINE +11dBm Terminals: Standard 1/4" phone jacks (A-IN, B-IN, A-OUT, B-OUT, EXP), DC9V input jack (for AC adapter connection), DIN 5-pin connector (IN or OUT selective) Power supply: Dedicated AC adapter Current consumption: approx. 350 mA (max.) Dimensions: 145.4 (W) x 120.5 (D) x 60 (H) mm (incl. protuberances such as jacks, etc.) Weight: approx. 470g
