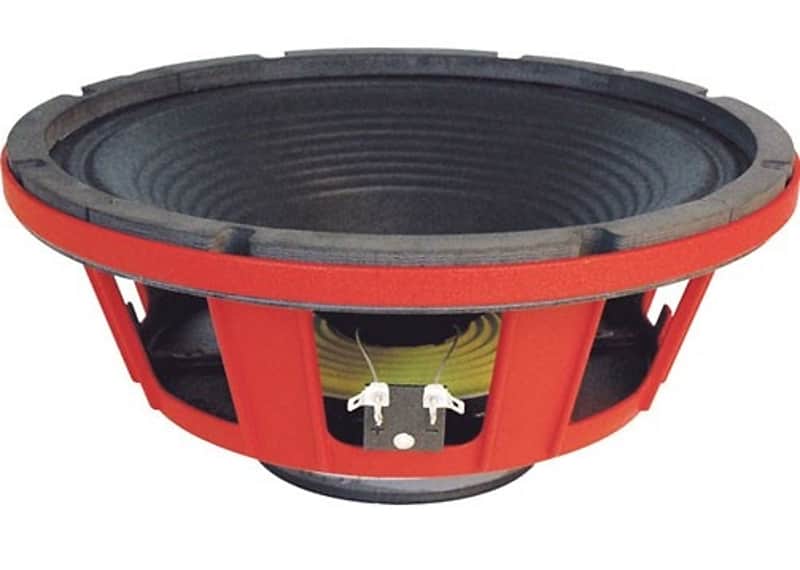

Eminence LYNCH SUPER V12

Please note: credit cards are accepted as payment after selecting Paypal at checkout.

Authentic British tonal characteristics refined by the keen ears of George Lynch, Randall Amplification, and Eminence engineers. Standard equipment in the Randall Lynch Box and now available as an Eminence replacement model. Colouration: Very full, clean and warm tone with nice presence and control. Genre: Blues, Rock, Country, Jazz. Nominal size: 12.0", 304.8 mm Nominal Impedance: 8 ohms Power: 150w rms Freq. Response: 70.0 Hz-4.5 kHz Sensitivity: 99.2 db 1w/1m Magnet Weight: 38.0 oz, 1078.0 grams Gap Height 0.313", 7.95 mm Voice Coil Diameter 2.0", 50.8 mm MOUNTING INFORMATION Acceptable Enclosure Types - Closed back: Yes - Open back: Yes Overall Diameter: 12.38", 314.5 mm Baffle Hole Dia: 11.07", 281.0 mm Number of Mounting Holes: 8 Mounting Holes Dia: 0.27", 6.9 mm Mounting BCD: 11.57", 293.8 mm Depth: 5.46", 138.7 mm Net Weight: 9.7 lbs, 4.4 kg Shipping Weight: 11.5 lbs, 5.22 kg T/S PARAMETERS Fs: 85.0 Hz Re: 7.25 ohms Le: 0.83 mH Qms: 13.87 Qes: 0.72 Qts: 0.69 Vas: 44.6 L, 1.58 cuft Vd: 41.0 cc Cms: 0.116 mm/N BL: 12.7 Tm Mms: 30.0 grams EBP: 117.0 Xmax: 0.79 mm Sd: 519.5 cm2 CONSTRUCTION -Copper voice coil on polyimide voice coil former -Ferrite magnet with non-vented core -Die cast aluminum basket -Paper cone with plain paper cone edge -Zurette dust cap
