Floor model

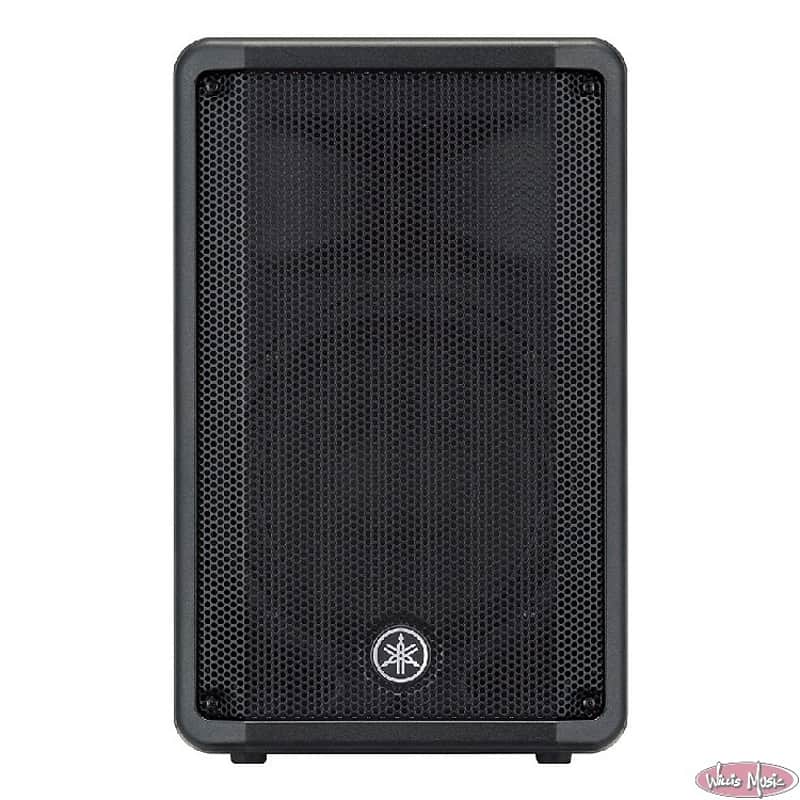

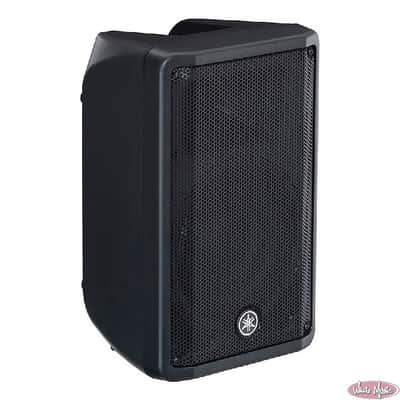

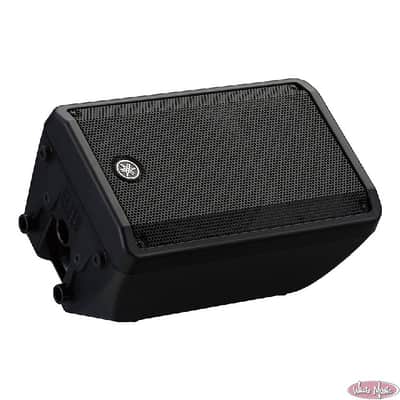

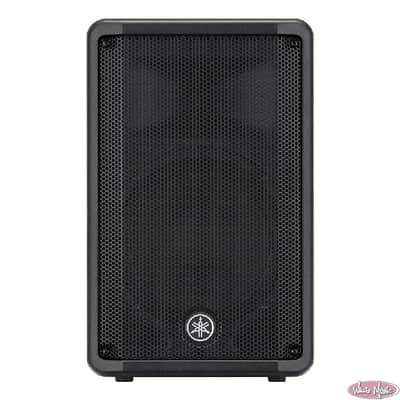

The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its compact enclosure, the DBR10 can be used as a utility speaker in a variety of environments.

Specs:
Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB): 55Hz‚¬â€œ 20kHz
Nominal coverage: H- 90°, V- 60°
Components: LF- Diameter:10" cone, Voice Coil:2", Magnet:Ferrite, HF- Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite
Crossover: 2.1kHz: FIR-X tuning„¢ (linear phase FIR filter)
Output power: Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
Maximum output level (1m; on axis): 129dB SPL
I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation: Fan cooling, 4 speeds
Power requirements: 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption: 60W(1/8 Power Consumption), 18W(Idle)
Cabinet material: Plastic
Finish: Black
Handle: Top x 1
Flying and mounting hardware: Bottom x 2 (Fit for M8 x 15 mm eyebolts)
Pole socket: 35mm (Bottom x 1)
Dimensions: W- 308mm (12.1"), H- 493mm (19.4"), D-289mm (11.4")
Net weight: 10.5 kg (23.2 lbs)
