099-2236-000 Genuine Fender Pure Vintage '59 Stratocaster/Strat Pickup Set

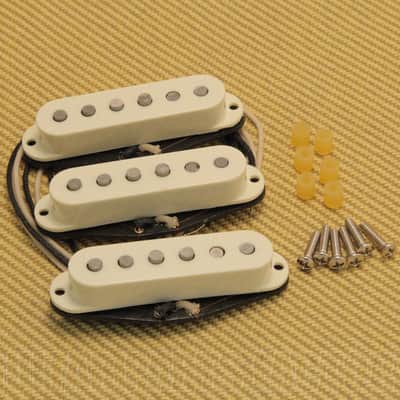

Genuine Fender Pure Vintage '59 Stratocaster pickup set. Featuring alnico 5 magnets and formvar-coated wire on a fiber bobbin, this pickup set evokes the late 50s warm, round Strat tone with a sweet edge. The staggered pole pieces offer balanced output on vintage radius fingerboards. Includes vintage white covers and mounting hardware.
From vintage bobbin construction to genuine original-era cloth wiring, all Fender Pure Vintage pickups are wound to precise specifications for authentic, traditional Fender tone and performance.

Pure Vintage '59 Strat Pickup Set

As Heard on
Fender American Vintage ’59 Stratocaster® guitar

Built to evoke the original era of the Fender Stratocaster, these single-coil ’59 Strat pickups produce round, warm tone with a sweet edge.

Tonal Characteristics

• Formvar-coated magnet wire improves overall brightness
• Alnico 5 magnets add more focus and enhanced dynamics
• Staggered pole pieces balance volume and output across every string
• Wax-potted


Product Details

• Period-correct cloth wire and fiber bobbin construction
• Includes aged white pickup covers


Included Components

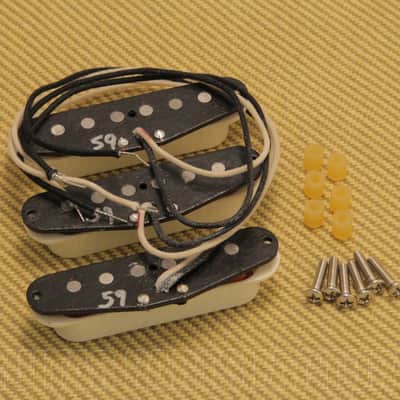

Fender Pure Vintage '59 Stratocaster pickups come with all parts needed for installation, including:

• Mounting screws
• Pickup height adjustment tubing
• Wiring diagram
• Wiring harness


Output Rating (Bass/Mid/Treble)

• 5/5/6

Other Specifications

DC Resistance

• 5.9 ohms

Inductance

• 2.6 henries
