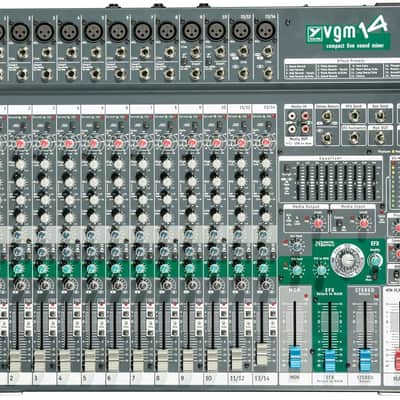

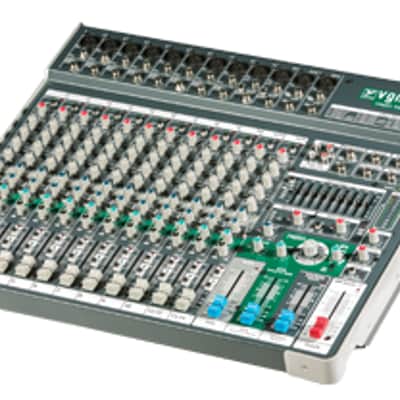

Yorkville VGM14
14-Channel performance mixer w/ digital effects, and graphic EQ. Channel strips include a 3-band EQ, gain, effects & monitor send, 60mm fader & mute. Internal power supply, USB Audio I/O, Break-Switch and more.

The Yorkville VGM14 delivers the essential features needed in a professional ultra-compact live sound mixer. All metal chassis design, effective fully featured input channel design, high quality 60mm faders throughout, 24-bit digital effects, and break switch make the VGM14 the perfect mixer for live music applications and for small installs. An IEC AC input (no proprietary adaptor or wall-wart required) for ultra reliable mobile operation. USB Audio I/O, additional media inputs, two High Impedance instrument level inputs for acoustic guitars or bass offer maximum connectivity for various audio sources.

Features

• Ten Mono Input Channels with XLR & ¼-inch TRS inputs

• Channel 9 & 10 Mono Inputs have a Hi-Z input switch

• Two Additional stereo line input channels (11/12 and 13/14)

• Additional XLR mono input per stereo channel for maximum 12 Mic inputs

• Input gain level control with Non-defeatable soft multi-slope compressor on every input

• 3-band EQ with Sweep Mid, High Pass Filter, Monitor, Aux and Effect Send, Clip LED, Mute Switch and Pan control per Channel. 4-band EQ's on Stereo Channels

• 60mm Faders Throughout

• Global 48 volt Phantom Power

• Stereo 9-band graphic EQ Assignable Main/Monitor

• Stereo RCA Media Outputs with Level Control

• BREAK Switch (mutes all input channels)

• Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch).USB Audio I/O

• Zone/Sub Output with Level Control

• Main stereo TRS phone and XLR outputs

• Sixteen 24-bit digital audio effects

• Effects TRS output jack

• Effects defeat footswitch jack

• Effects return to Main and Monitor

• Stereo Return TRS jacks with fader

• Headphone Level Control

• Dual 10-segment LED Output Meter

• IEC removable line cord receptacle (No Adaptors)

• Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz.


Specs

• Number of Channels: 14

• Channel Inserts: 10

• Mono Channel EQ: 3-Band w/ mid Sweep

• Stereo Channel EQ: 4-Band

• Balance Controls: 11/12, 13/14

• Pan Controls: 1 to 10

• Channel Overload Protection: Yes

• Inputs - XLR (bal): 12

• Inputs - 1/4": 14

• Inputs - RCA (unbal): 1 Stereo Pair

• Solo Switches: Yes - All Channels

• Mute Switches: Yes - All Channels

• Hi Pass Switches: Yes - All Channels

• Activity / Solo LED: Yes - All Channels

• Clip / Mute LED: Yes - All Channels

• Phantom Power: 48 volt + LED indicator

• Internal Effects: 24 Bit Stereo / 16 Effects w/ Modify Control

• Auxiliary Sends: Yes

• Effects Send: Yes

• Effects Return: Yes

• Effects Return to Main: Yes

• Effects Return to Monitor: Yes

• Reverb / Effects Footswitch: Yes

• Record Outputs: Yes (RCA and USB)

• Max Gain to Line Out -Mic Input (dB): 80dB

• Max Gain to Line Out -Line Input (dB): 65dB

• Mixer - Signal to Noise Ratio (dB): Greater than 100dB

• Mixer - Freq Resp (Tone and EQ Flat,±2dB): 20Hz - 20KHz

• Mixer- Input Ref Noise to line out @150 Ohms(dBv): -118dBv (@ 150 ohms)

• Mixer THD (Main out w/ -10dB input): Less Than 0.05%

• Typical crosstalk -1 kHz (dB): Less Than -60dB
• CMRR @ 60Hz (min/typ): 55dB/65dB

• Power Consumption (typ/max): 26VA(typical)

• Cooling: Fan

• Transformer Type: SMPS

• Chassis Construction: Steel

• Console Lamp Connector 12V DC (BNC): Yes - 12V DC (BNC)

• Other Features: Zone Output, Hi-Z Inputs (Ch9&10) USB I/O

• Dimensions (DWH, inches): 16 x 19 x 2.8

• Dimensions (DWH, cm): 40.6 x 48.3 x 7.1

• Weight (lbs/kg): 13/5.9


Specifications subject to change without notice
