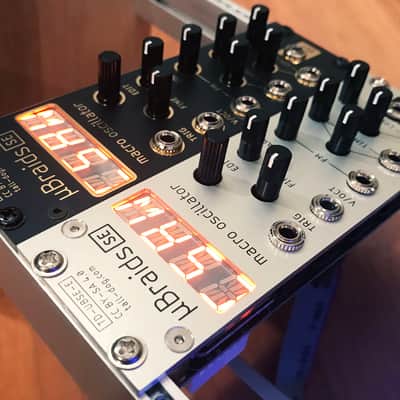

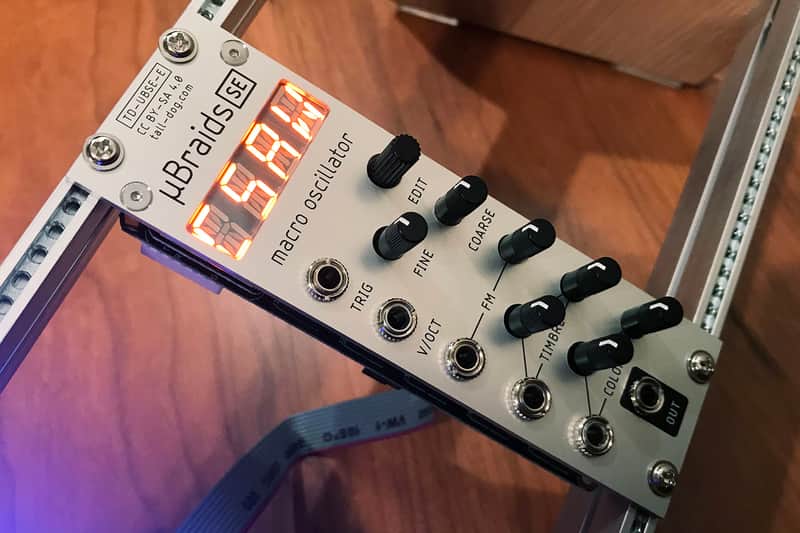

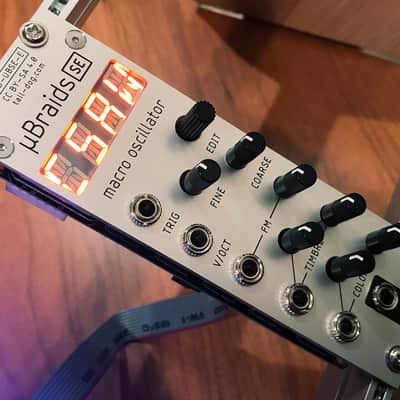

Tall Dog µBraids SE (uBraids, microBraids) Eurorack [Rev F, Silver]

µBraids SE is a voltage-controlled digital oscillator/sound source in 8HP with a wide range of creative and useful sound generation algorithms (aka models).

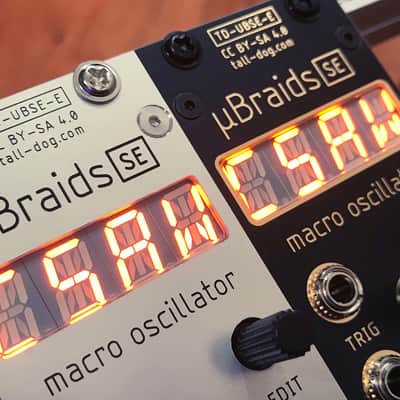

This re-engineered Eurorack module updates and simplifies the classic Mutable Instruments Braids design with a custom brilliant orange LED display module protected by a clear acrylic lens, a low-profile rotary encoder, and an added attenuverter.

Fully compatible with upstream Braids firmware. Includes power cable, mounting hardware, and a one-year warranty. Designed and built with care by Tall Dog Electronics in Western Massachusetts. Licensed CC BY-SA 4.0 open source hardware.

• Part number: TD-UBSE-F/S

• Panel style: Satin silver, black markings

• Panel material: Anodized aluminum

• Height: 3U (128.5 mm)

• Width: 8HP (40.3 mm)

• Depth: 31 mm (with power)

• +12V: 100 mA (average)

• -12V: 15 mA (average)
