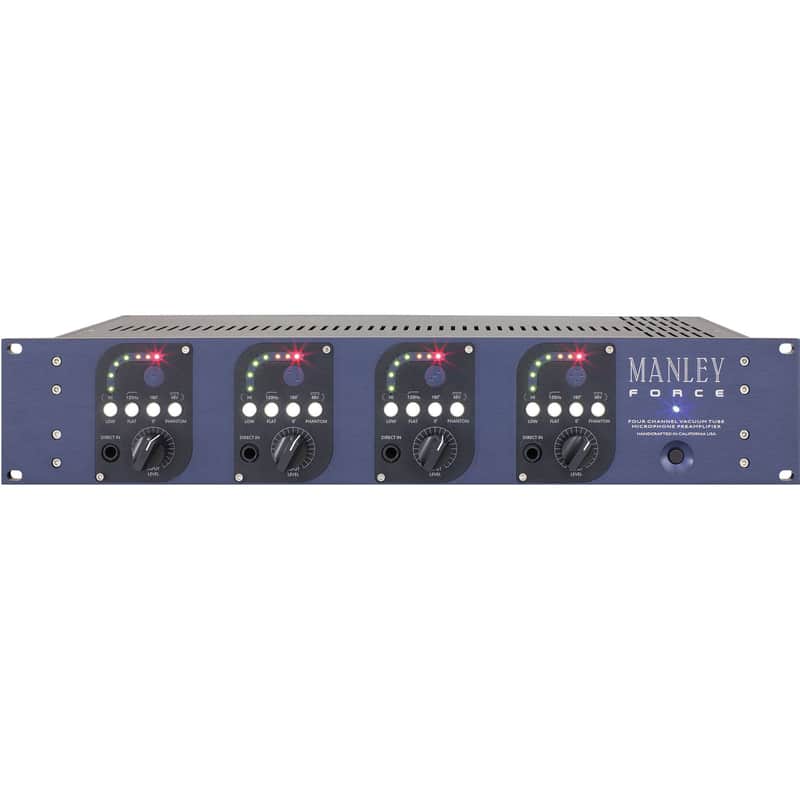

Your relationship with the FORCE begins with the ergonomic facia through its thoughtfully organized controls, silky and bulletproof rotary potentiometers, positive latching feature switches, and convenient Direct Input 1/4" jacks. Seven-way LED metering for each channel provides instant visible feedback for audio levels which are enhanced with a double-inlay CNC-milled accent. A feast for the eyes, yeah, we know. This is investment grade audio equipment that you will be as proud to showcase in your studio.

Your microphone signals enter through gold-plated XLR connectors straight into our MANLEY IRON® Mic input transformer. Your line level or instrument level guitars and keyboards come in via the front panel 1/4" Hi-Z 10 megOhm jacks before hitting the input level control which also acts as a Variable Input Pad. Phase Reverse and 120Hz High Pass filters can be invoked here in the circuit and then we're into the 12AX7 dual triode amplifying stage operating in pure Class A, of course. The amount of GAIN for each channel can be selected as 40dB or 50dB via the front panel switches. An additional 10dB of gain is available via internal jumpers.

The power supply is an innovative design developed specifically for Manley Labs, specifically for High Voltage vacuum tubes, and specifically for audio by the world expert team in this technology led by Bruno Putzeys. Proven reliable and sonically superior in the Manley CORE, this power supply provides 300 Volt DC rails to run the vacuum tubes, beefy 6 Volt lines to power them up, along with several other voltage rails for the phantom power and various solid-state control voltages. High Voltage = High Headroom, folks. You will not get near this sonic performance with in any 500-series design. Trust us. This is Full FORCE audio excellence which starts with this superior power supply. All lines are importantly regulated, low impedance, efficient, and super-quiet in this low radiating high frequency design. The universal mains input accepts any voltage or frequency from anywhere in the world making travel with the FORCE a breeze.Vacuum Tubes: 4x 12AX7WA dual triodes

• Microphone Input Impedance: Balanced Transformer Coupled XLR: 1250Ohms
• Unbalanced 1/4" Direct Input Impedance: 10MOhm
• Maximum Input: Mic input (Low Gain Setting): -5dBu or 435mV RMS at 0.5% THD
• Mic input (High Gain Setting): -25dBu or 44mV RMS at 0.5% THD
• Direct input (Low Gain Setting): +24dBu or 12V RMS at 0.5% THD
• Direct input (High Gain Setting): +17dBu or 5.5V RMS at 0.5% THD

• 48V Phantom power switch
• 120Hz High Pass Filter switch
• Phase Invert switch
• Input Attenuator (Variable Pad)
• GAIN Selectable Gain LOW vs HIGH
• Silent Input Level Control (Variable Input Pad)
• 7-Segment LED Peak Metering
• 1/4" DIRECT INPUT
• Similar to the DI in the Manley SLAM!®, and exactly the same as found in the Manley CORE®, this all-discrete solid-state circuit with 10 Meg Ohm input impedance is perfect for guitars, bass, keyboards, etc.
