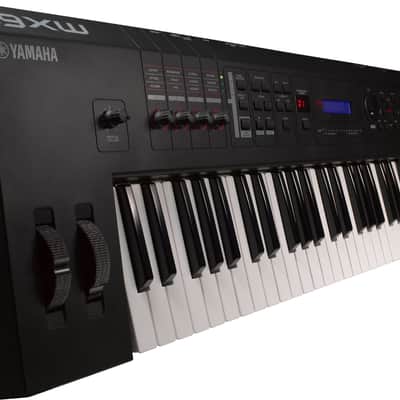

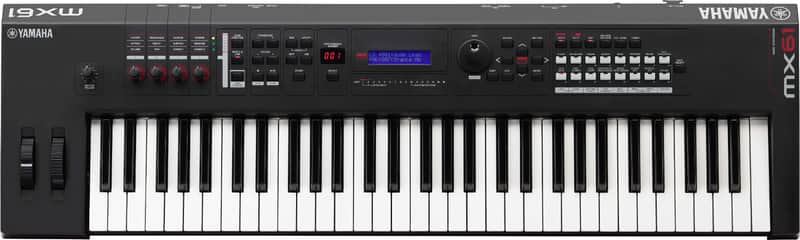

Yamaha's MX61 is a 61 key music synthesizer which combines Motif XS sounds, USB Audio/MIDI connectivity and advanced DAW/VST controller features in one affordable package.

• Over 1000 Sounds from the MOTIF Series
• VCM Effects
• Easy Split/Layer Performance Mode for Instant Inspiration
• 16-Part Multi Timbral and 128-note Polyphony
• Bi-directional USB Audio/MID Interfacing
• Extensive Hands-On Controls for VSTs and DAWs
• A Complete Suite of Music Production Software Included
• Complete Analog and Digital Connectivity
• A Lightweight Design with a Quality Yamaha Keyboard

• Size/Weight
• Dimensions (WxHxD): 38.74" x 4.41" x 11.77" (984 x 112 x 299 mm)
• Weight: 10.58 lbs (4.8 kg)
• Control Interface
• Keyboard
• Number of Keys: 61
• Initial Touch: Yes
• Tone Generator
• Tone generator: AWM2
• Maximum Polyphony: 128 notes
• Multi Timbral Capacity: 16 parts (Internal)
• Wave: Approx. 166 MB (when converted to 16-bit linear format)
• Voices
• Preset: 1,106 Normal Voices + 61 Drum Kits
• GM: 128 Normal Voices + 1 Drum Kit
• User: 128 Normal Voices + 8 Drum Kits
• Performance
• User: 128 (16 parts)
• Effects
• Reverb x 9 types (42 presets)
• Chorus x 17 types (88 presets)
• Insertion Effect x 48 types (267 presets) x 4
• Master EQ (5 bands)
• Sequencer
• Tempo (BPM): 5 - 300
• Songs: 27 Demo Songs
• Patterns: 208 Patterns
• Arpeggio: 999 types
• Sequence Formats: SMF Format 0 (playback only)
• Sequence Software compatible with the Remote Control function: For Windows®: Cubase 6 or later, SONAR X1 Producer For Mac®: Cubase 6 or later, Logic Pro 9, Digital Performer 7 (*Functions to be controlled differ depending on the software)
• Controllers: Pitch Bend Wheel x 1, Modulation Wheel x 1, Assignable Knob x 4, [DATA] dial x 1
• Display: 3 digit LED + 20 x 2 line character LCD (backlit)
• Connectors: OUTPUT [L / MONO] / [R] (standard phone jack), [PHONE] (standard stereo phone jack), [FOOT CONTROLLER], [SUSTAIN], MIDI [IN] / [OUT], USB [TO HOST] / [TO DEVICE], [AUX IN], DC IN
• Power Supply: 9W
• Accessories: AC adapter (PA-150 or an equivalent recommended by Yamaha), Owner’s Manual, Online Manual CD-ROM x 1 (containing Reference Manual, Synthesizer Parameter Manual, and Data List), DVD-ROM x 1 (containing DAW software)
