Mooer Engineering

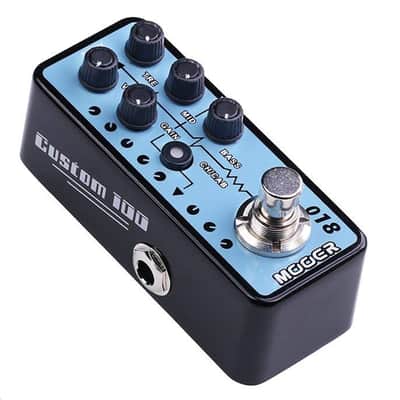

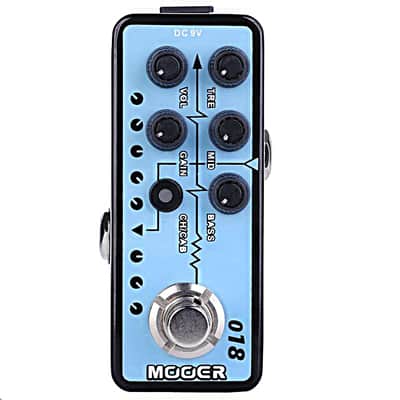

Mooer Micro Preamp guitar effects pedal

these are mini effects pedals

they do not use batteries 9 Volt Power Supply only !!!

Size   93.5mm Long x 42mm Wide x 52mm High

specs

input impedance: 1M Ohms

output impedance :100 ohms

Current draw : 300 mA

Metal Housing

Model -- 018  Custom 100

Based on : 018  based on a 100-watt Plexi-based boutique signature amp, with a range of tones from classic British cleans to high-gain sounds.

The dual channels span a wide range of EQ and gain settings which make this MICRO PREAMP incredibly versatile. The clean channel can achieve both F style American shimmer and UK style warmth. The drive channel is distinctly Classic British with a modern twist that provides a huge gain range. A great all-rounder.

Preamp

018 Custom 100
MOOER micro preamps are sonically accurate digital recreations of the preamp sections of popular tube amplifiers. We have developed these by directly analyzing real tube amplifiers using a brand new technology to capture their sound, dynamics and response. Each Micro Preamp comes complete with dual channels, integrated speaker cabinet simulation and dual operating modes to suit the needs of all users.

Initially we are releasing a set of 10 models, each based on a different popular tube amplifier from a range of manufacturers. These have been designed to be used with the upcoming MOOER power amp or in the effects return of any standard guitar amplifier. The speaker cab simulation allows the user to connect direct to a soundcard, powered monitor or P.A. without the need for a guitar amp or speaker cab at all.

Features:

•    High quality dual channel preamp

•    Independent 3 band EQ, Gain and Volume controls for each channel

•    Speaker cabinet simulation on/off

•    2 different modes for footswitch operation. On/Off or channel A/B

•     018 is  based on a 100-watt Plexi-based boutique signature amp, with a range of tones from classic British cleans to high-gain sounds.

(*the mentioned manufacturer and product names are trademarks or registered trademarks of their respective owners,the trademarks were used merely to identify the sound character of this product.)

Connection:

1.DCIN:

Connect a DC 9V 300mA centre pin negative power supply

2.INPUT:

Connect your instrument directly or the output of your pre, pre-amp effects like Overdrive, distortion, etc.

3.OUTPUT:
Connect to a power amp or your amplifier’s effects return.(Highly recommend using a tube amplifier)

Different power amplifiers will affect the outcome of the final tone.You can also connect directly to a sound card and activate the speaker cab simulation for recording purposes

Note: You can connect your "fx loop" effects, like modulation and time based effects, in between the MOOER preamps output and the input of the power amp (fx return)
