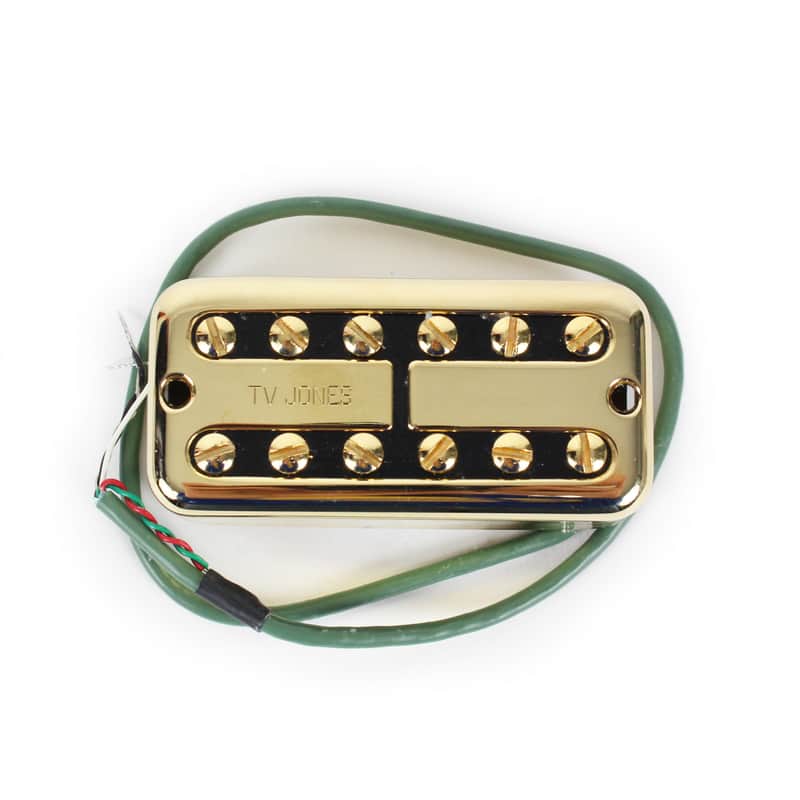

TV Jones TV Classic Bridge Pickup Universal Mount in Gold

This is the TV Jones Classic Model Pickup. This is a brand new pickup that is in stock and ready to ship. The pickup ships with two mounting screws and installation instructions. Please feel free to give us a call if you have any questions!

About the TV Jones Classic (from tvjones.com):

That great, classic Filter'Tron™ sound. We all have it in our heads, but until now, it has been difficult to find a pickup that puts that tone in your guitar. Now, with the TV Jones Classic, the vintage twang and growl are once again yours.

We produce the TV Classic with our own parts made entirely in the USA. We've recreated the look of the original late 1950's Filter'Tron cover. It has a tighter radius around the top edge, a flatter top, and a height of 3/4", compared to the shorter modern reproduction cover height of 5/8". To improve pickup balance, we make the neck pickup available in a lower 5/8" high cover. But the soul of this pickup is in the magnets we use: We analyzed 1/4" thick late 1950's alnico magnets and reproduced them especially for use in our TV Classic.

The pole screws used on our pickups are original 6/32 fillister-head steel screws. The fillister-head screw has a cylinder-shaped head, which provides better string separation than a domed-shaped pole screw.

Universal Mount:

Designed to simplify your installations and ordering process. You’ll never have to worry again about choosing the proper mounting option for your new TV Jones Filter’Tron-Style pickup. With the patent pending Clip System you now have both NE Mount and English Mount all in one.

Specs:

Type: Humbucking w/ individually adjustable pole pieces
Position: Bridge
Wiring: 4 Conductor wire with coil tapping available
Finish: Chrome Plated
Mounting: Universal
Hardware included: 2 x Chrome Wood Screws – English Mount tabs
Mounting Hole Spacing: 2 7/16"
DC Resistance: 4.8K
Inductance: 1.83H
Dimensions: 2 13/16" Long x 1 3/8" Wide x 5/8" tall
