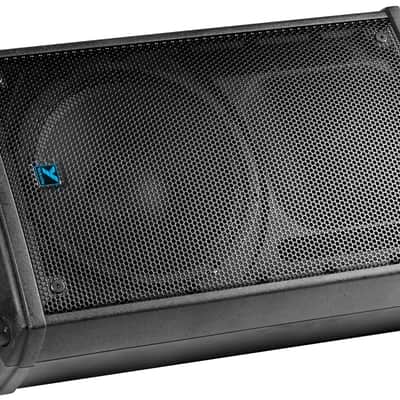

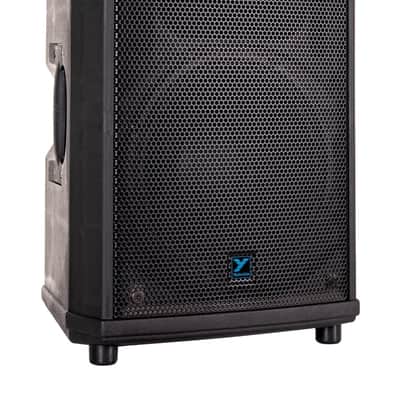

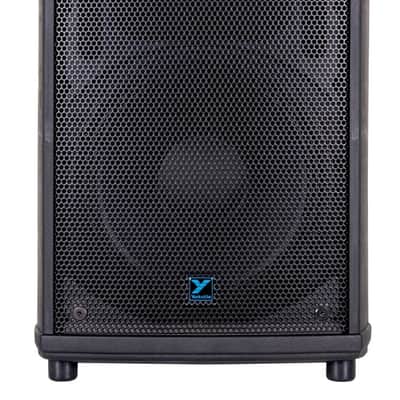

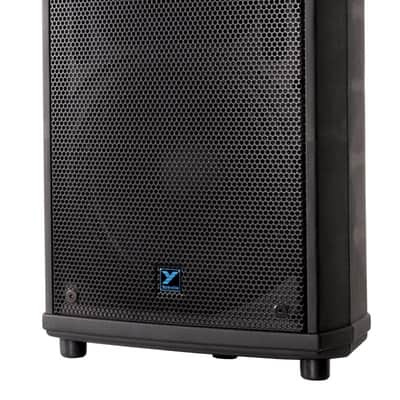

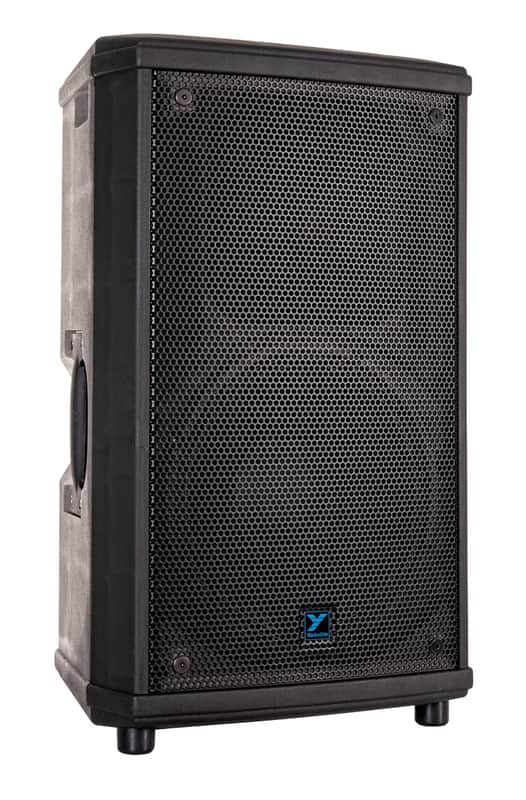

Yorkville NX25P-2 | 12" 2-Way Powered PA Speaker. New with Full Warranty.

 Yorkville NX25P-2
300 watts - powered - 1/12” woofer & 80°x50° horn w/1” driver - 250/50 watts bi-amp, built in mixer with microphone and line inputs and more

NX series enclosures are manufactured using tough, light-weight plastics. In addition, they are UV and moisture
resistant. Stand mount and fly points are included. Full range enclosures have been molded for maximum versatility.
The trapezoid box is ideal for mounting in arrays, or for use as a monitor, with recessed input jack plate and ideal wedge
monitor angle that was taken into account in the initial design. These loudspeakers are ideal P/A solution for install, for
mobile DJ, or live music reinforcement.

Overview

Two-band EQ, XLR balanced microphone input as will as balanced combi-jack line input on the power module means the NX25P-2 can be easily connected to any source and quickly EQ balanced for the room. An XLR balanced line output allows multiple cabinets to be linked together for use in an array or for easy distribution around a large room when used as repeater cabinets.

The horn amplifier produces loud clean transients to keep up with the high output of the Class-AB two-tier amplifier driving the woofer. The high efficiency Class-H topology delivers higher headroom and lower operating temperature, making it the ideal amplification solution for this active loudspeaker.

The NX25P-2 enclosure, like all cabinets in the NX loudspeaker line, has been molded for maximum versatility. The trapezoid box is ideal for mounting in arrays, or for use as a monitor cabinet with well-protected inputs and controls.

The NX25P-2 can easily be used in any orientation, and close to walls, floors and in close arrays with multiple cabinets. Particular care was taken designing the components to reduce extraneous heat production.

Features

• Integrated 300 Watt Amplifier
• Max SPL 124dB Peak (120dB Continuous)
• XLR Microphone Input w/ Gain Control
• Combi-jack XLR & 1/4-inch TRS Line Input w/ Gain Control
• Two Band EQ
• XLR Thru-put
• 12-inch Ceramic Magnet Woofer
• High quality 1-inch High Frequency Driver
• Dual Purpose Cabinet Design (Front-of House or Monitor Orientation)
• Ultra-Clear Reproduction
• Integrated Flying Points for Installation Applications

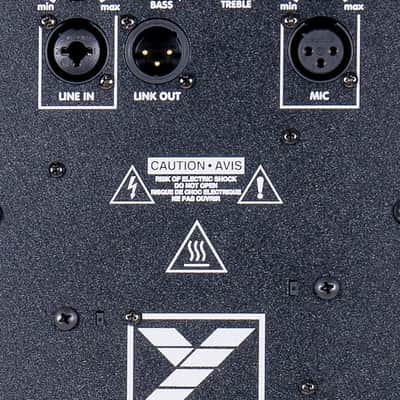

• Recessed Control / Input Panel
• Made in Canada


Specs

System Type 2-Way

Active or Passive Active

Program Power (Watts) 300 Watts (600 Watts Peak)

Biampable Self Powered

Biamp Operation Only Yes

Max SPL (dB)124dB Peak (120dB Continuous)

Frequency Response (Hz +/- 3dB) 55 - 18k

Crossover Frequency (Hz) 3k

Driver Configuration 12-inch / 1-inch

HF Driver(s)1.4-inch coil / 1-inch exit PETP Driver

HF Dispersion (°H x °V)80 x 50

HF Protection Peak Limiter

LF Driver(s)12-inch Ceramic Magnet

HF Amplifier Type Class A/B

LF Amplifier Type Two Tier Class H

Power Cable Yes

Power Switch Yes

Power Consumption (typ/max)120 / 310 VA

Inputs

2Inputs - 1/4" Jacks

1 Line / 1 Mic (XLR Combi jacks)

Mixer Controls

Mic Gain

Line In Gain

Low and Hi EQ

Limiter Yes

LED Indicators Power/Activity/Limit

Feet Yes

Flying Hardware1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)

Pole Mount Adapter (1 3/8"-3.5cm) Yes

Enclosure Materials Molded Polypropylene

Grille Perforated Metal

Dimensions (DWH xbackW, inches) 12.25 x 16 x 26.5 x 9

Dimensions (DWH xbackW, cm) 31.12 x 40.6 x 67.3 x 22.9

Weight (lbs/kg) 39 / 17.6

Specifications subject to change without notice
