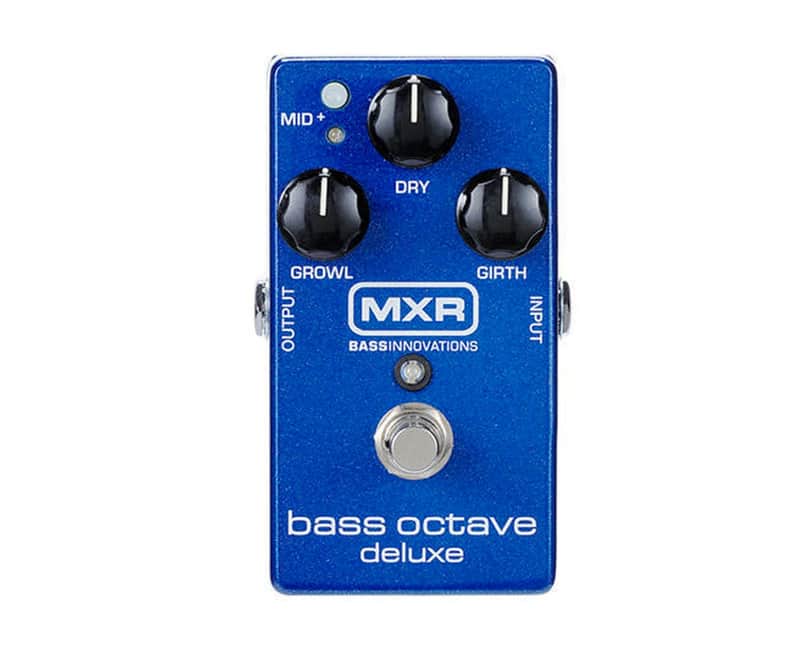

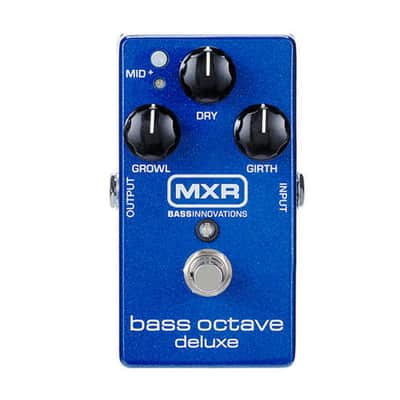

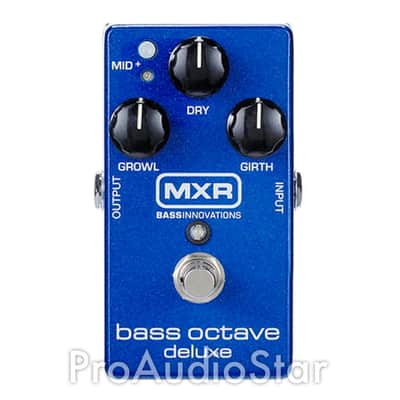

The MXR M288 Bass Octave Deluxe serves as further evidence that guitarists aren't the only ones who seeking cool and creative ways to modify their sound. This dual-voice octave pedal is a tone shaper's dream, and offers analog tones with true bypass. The M288 Bass Octave Deluxe's Dry knob mixes your direct bass signal with the octave effect and add up to 15dB of midrange punch. Aside from the Dry control, there are two additional knobs: Growl and Girth, which add midrange or low end to the M288 Bass Deluxe's sound.

Features

• Dual-voice octave pedal
• Analog tone
• True bypass
• Dry mix knob
• Girth controls low-frequency octave-below tone
• Growl controls midrange octave-below control
• MId+ switch adds up to 15dB of mids (internally adjustable to 400Hz or 800Hz)
• Powered by 9V battery or power supply (not included)
• Input Impedance : 1 Mohm (Effect On)
• Bypass : True Bypass
• Signal to Noise : 94dBV A-weighted (Vref 1V RMS)
• Output Impedance : 600 ohms
• Octave Frequency Bandpass : 8Hz-46Hz, -3dB
• Trigger Threshold : 70dBV @ 100Hz
• Dry Output Contro l: -infinity/+2.5dB (MID+ out)
• Dry Output Response : 20Hz to 20 kHz, +0/-1dB, -3dB @10Hz
• MID+ Switch : Dry Signal Midrange Boost
• 400Hz or 850Hz, Internally Selectable
• +4dB to +14dB, Internally Adjustable
• Girth Control : -infinity/+1dB @ 100Hz
• Growl Control : -infinity/+6dB @ 100Hz

Power Requirement

• Standard 9-volt battery
• 9VDC adapter with 5.5mm x 2.1mm positive barrel & negative center
• Current Draw : 14mA
