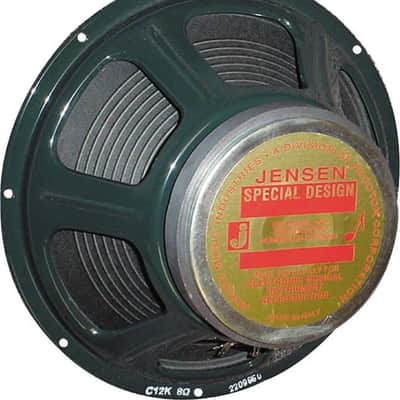

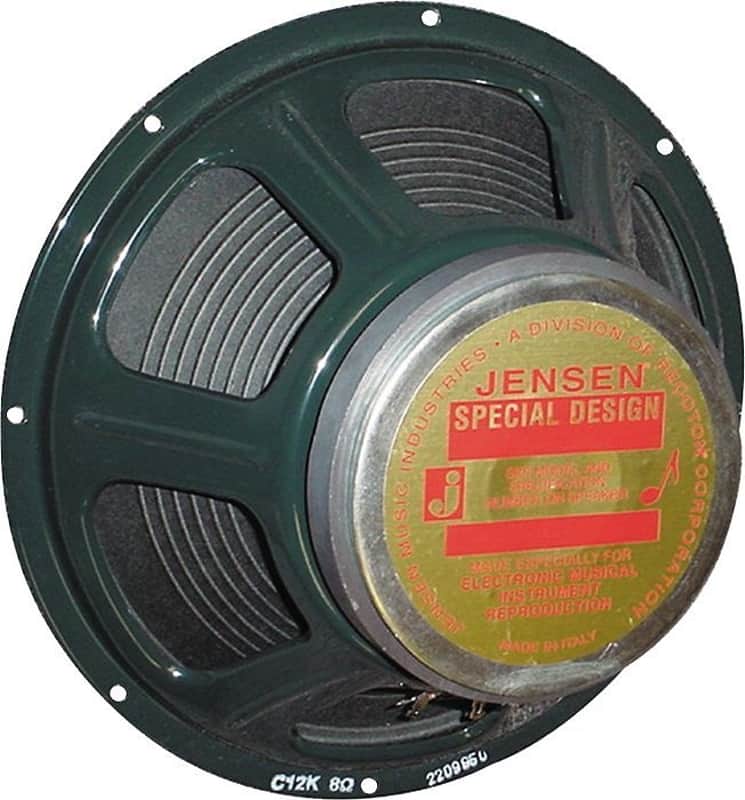

JENSEN Vintage Ceramic C12K 8 Ohm Speaker

A real workhorse, heavy on the mids with a solid, straightforward tone. When presented with overdrive distortion it powers through with lows that are bold and heavy.

General Characteristics

• Nominal Overall Diameter 307 mm 12 in

• Nominal Voice Coil Diameter 50 mm 2 in

• Magnet Weight 1450 g 50 oz

• Overall Weight 9.65 lbs

• Flux Density 1.10 T

Thiele-Small Parameters

• Voice Coil DC Resistance RE 7.0 Ω

• Resonance Frequency ƒS 104.0 Hz

• Mechanical Q Factor QMS 20.41

• Electrical Q Factor QES .67

• Total Q Factor QTS .65

• Mechanical Moving Mass MMS 28.8 g

• Mechanical Compliance CMS 82 µm/N

• Force Factor BxL 13.95 Wb/m

• Equivalent Acoustic Volume VAS 27.6 lt.

• Maximum Linear Displacement XMAX 1.0 mm

• Reference Efficiency nO 4.43 %

• Diaphragm Area SD 490.9 cm2

• Losses Electrical Resistance RES 210 Ω

• Voice Coil Inductance @ 1kHz LE 0.84 mH


Constructive Characteristics

• Magnet Ferrite

• Voice Coil Winding Copper

• Voice Coil Former Kapton

• Cone Paper

• Surround Integrated Paper

• Dust Dome Non Treated Cloth

• Basket Pressed Sheet Steel


Electrical Characteristics

• Nominal Impedance 8 Ω

• Rated Power 100 W

• Musical Power 200 W

• Sensitivity@1W,1m 99.1 db
