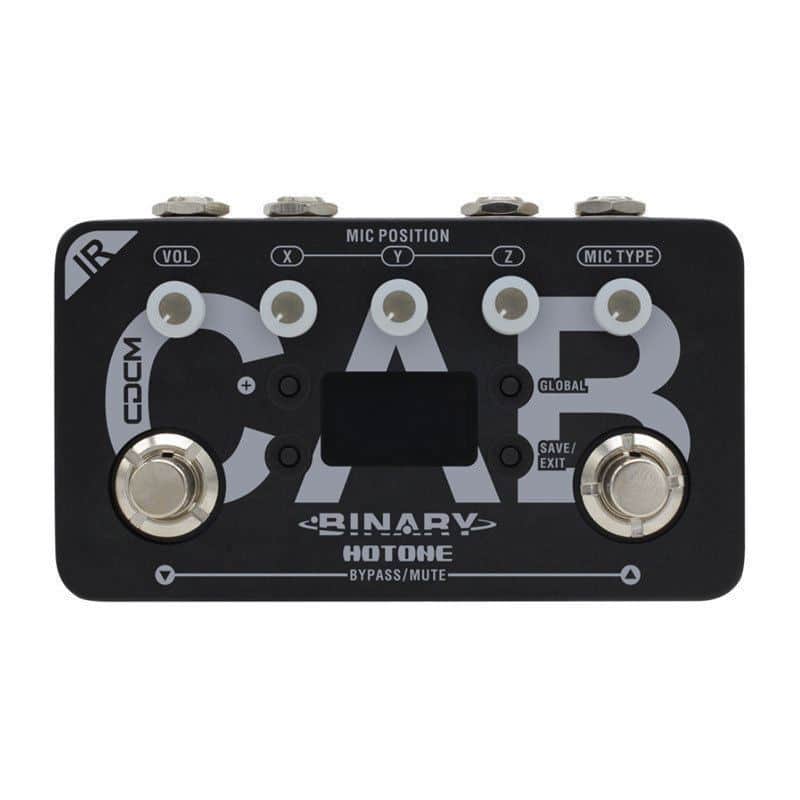

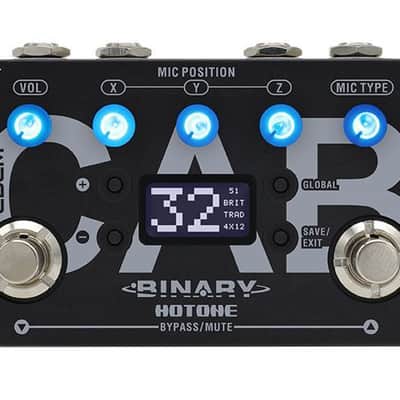

The Hotone Binary Ir Cab Simulation pedal. FREE shipping in the USA!

Grown out of next-generation XTOMP technology, the Hotone Binary Series lets loose versatile pro-level effects in compact cases. Based on the same modeling/original effect library that amazed XTOMP users worldwide, Binary Series are dedicated to gather a bunch of high quality effects in a box with more affordable, competitive price. They feature compact casing, dual-footswitch design, versatile inputs/outputs and bright, clear OLED display, which blur the line between “classic pedals” and multi-effects.   At the core of all Binary Series pedals, a powerful dual-DSP platform and CDCM (Comprehensive Dynamic Circuit Modeling) modeling system ensure a realistic playing experience. The CDCM system is built on an extremely complex dynamic variation matrix, able to realistically express every detailed change that occurs during the operational process of actual circuitry: Everything is ALIVE and performs like its original.    The Hotone IR Cab is an impulse response-based cabinet simulator effects pedal that delivers 100 authentic legendary (vintage and modern) guitar and bass cab models. In addition, the IR Cab features CDCM-based legendary studio microphone and power amp models, as well as a variety of detailed mic position (X, Y, Z) and room simulations. Features

• Compact, easy-to-use dual-footswitch IR cabinet simulator effects pedal
• Advanced CDCM modeling system ensures realistic playing experience
• Dual DSP-powered platform ensures high sound quality
• 24-bit A/D/A conversion, up to 110dB S/N ratio
• 100 IR-based legendary guitar and bass cab models
• 11 CDCM-based legendary studio microphone models
• 8 CDCM-based power amp models with presence control
• Detailed mic position (X, Y, Z) simulation
• Built-in room reverb simulation
• Supports third-party IR files
• USB jack for firmware upgrading and loading/managing effects via free Mac/PC software
• Aux input and headphone output for practicing/jamming
• 100 presets
• OLED screen with clear display
• Pure Analog Buffered Bypass switching with flat frequency response
• Five translucent knobs with LEDs

Cab Models List (Please Check User Manual) Microphone Models List*

No.Mic TypeBased OnType1OFFN/AN/A2DY57Shure® SM57Dynamic3DY58Shure® SM58Dynamic4D421Sennheiser® MD421Dynamic5RE16Electro-Voice® RE16Dynamic7D112AKG® D112Dynamic6E609Sennheiser® e609Dynamic8B87AShure® Beta 87ACondenser9U87Neumann® U87Condenser10R121Royal® R121Ribbon11U67Neumann® U67Condenser12INVPhase InvertN/A
*The Manufacturers and product names mentioned in the list above are trademarks or registered trademarks of their respective owners. The trademarks were used merely to identify the sound character of the products.


Effect Models List*

No.Power Amp TypeDescription1OFFN/A2EL84SEL84 Single-Ended (SE)3EL84PEL84 Push-Pull (PP)46L6P6L6 Push-Pull (PP)5EL34PEL34 Push-Pull (PP)6KT88SKT88 Single-Ended (SE)7KT88PKT88 Push-Pull (PP)8EL34SEL34 Single-Ended (SE)96L6S6L6 Single-Ended (SE)

Specifications   Number of Patches: 100 Number of Effects: 100 cabs, 8 power amp types, 10 mic types  Digital Processing: 24-bit A/D/A conversion, 48 kHz sample rate Supported IR file format: 24-bit, 48kHz Max. Truncation Time: 20ms Frequency Response: 20 Hz-20 kHz S/N Ratio: Up to 110dB Input Impedance: 1M Ohms Output Impedance: 100 Ohms Power Requirement: DC 9V, center negative Current Consumption: 200mA minimum Dimensions: 121mm (D) x 72mm (W) x 47mm (H) Weight: 340g
