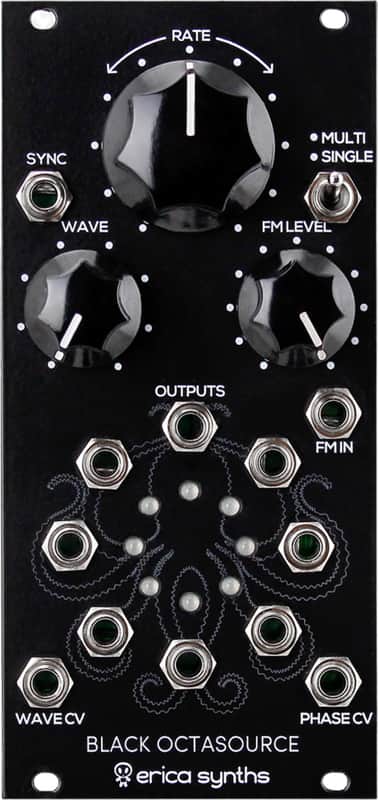

Erica Synths Black OCTASOURCE is what we want to believe - an LFO carried to its extremes. It features one of 8 waveforms available on 8 outputs phase shifted by 45 degrees OR all 8 waveforms simultaneously on all outputs. Furthermore, waveform selection, phase shift and LFO rate are CV controlled, and the rate can be synched to an external clock signal. Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, Erica Synths put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Product Features

• LFO with manually and CV controlled rate
• Manual selection of phase shift direction
• 8 simultaneous outputs
• Synchronization to an external clock
• LFO freeze function
• 8 waves with morphing between them
• Phase shift, wave select and FM CV
• Bipolar output signal level LEDs
• Depth: .98"
• Power consumption: +82mA, -44mA

Attributes

• Color: Black

Technical Specifications

• Type: Synth Module
• Power Supply: Requires Eurorack case and power supply
• HP Size: 12HP
