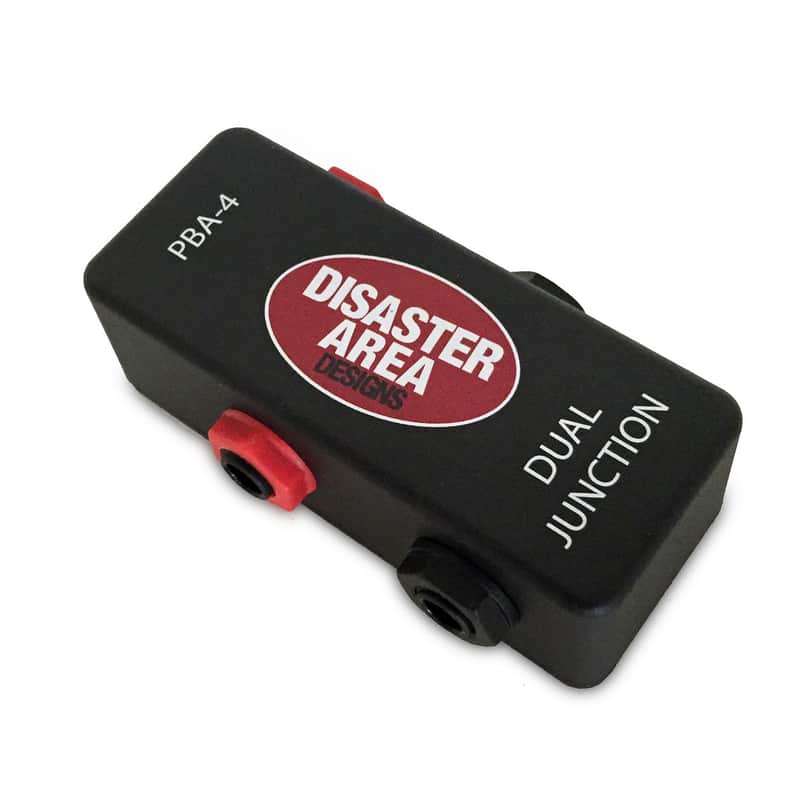

The PBA-4 Stereo Junction Box is a passive jack module for your pedalboard.  Consisting of four high-quality isolated jacks, the PBA-4 can serve in a variety of signal routing applications.

The PBA-4 is small enough to mount underneath the angle of most Pedaltrain boards (including PT-Jr, PT-1 / 2 / 3, PT-Pro, PT Novo series, and PT Classic series) to allow for a convenient input or output point.  Connect two pedalboard patch cables between your first and last pedals and the PBA-4, and then you can plug in your instrument cables directly to your board saving valuable setup time.  Use a single PBA-4 as both input and ouput points for your board, or use the PBA-4 as a stereo output junction.  Both tip and ring connectors are wired through on the PBA-4, so it can also serve as a connection for expression pedals or stereo patch cables.

STANDARD VERSION:

The standard version has each pair of jacks wired together in parallel.

Specs:

Dimensions:  3.6″ x 1.5″ x 1.2″ (92mm x 38mm x 31mm)

Passive design, no batteries or power supply required

High quality 1/4″ Neutrik jacks

All three contacts are wired through (Tip / Ring / Sleeve) for stereo or expression pedal use (STANDARD VERSION ONLY)
